T303EQ1 Banner Proximity Sensors
Part#:T303EQ1
Alt. Part#:33445
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Emitter; Range: 60 m; Input: 20-250 V ac; Output: Not Applicable; 4-pin Micro Integral QD
Product Details
- Weight 91.625584 g
- Country Of Origin US
- Power AC
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Feature: Chemical Resistant No
- Delay at Power-up (ms) 100
- Max Sensing Distance (mm) 60000
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Operation N/A
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
- Housing Style Barrel
- Connection Integral QD
- NEMA Rating NEMA 6P
- Feature: Washdown Rated Yes
- IO Link No
- Power Supply/Supply Voltage 20-250 V ac
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (Detailed) Emitter
- Min Op. Temp. (°C) -40
- Repeatability (µs) 2000
- Opposed Mode Emitter/Receiver Emitter
- DeviceNet No
- Outputs N/A
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Opposed
- Output response time (ms) 16 ON/8 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T303EQ1 on Powermatic Associates is $72.00. Order now.
About the product

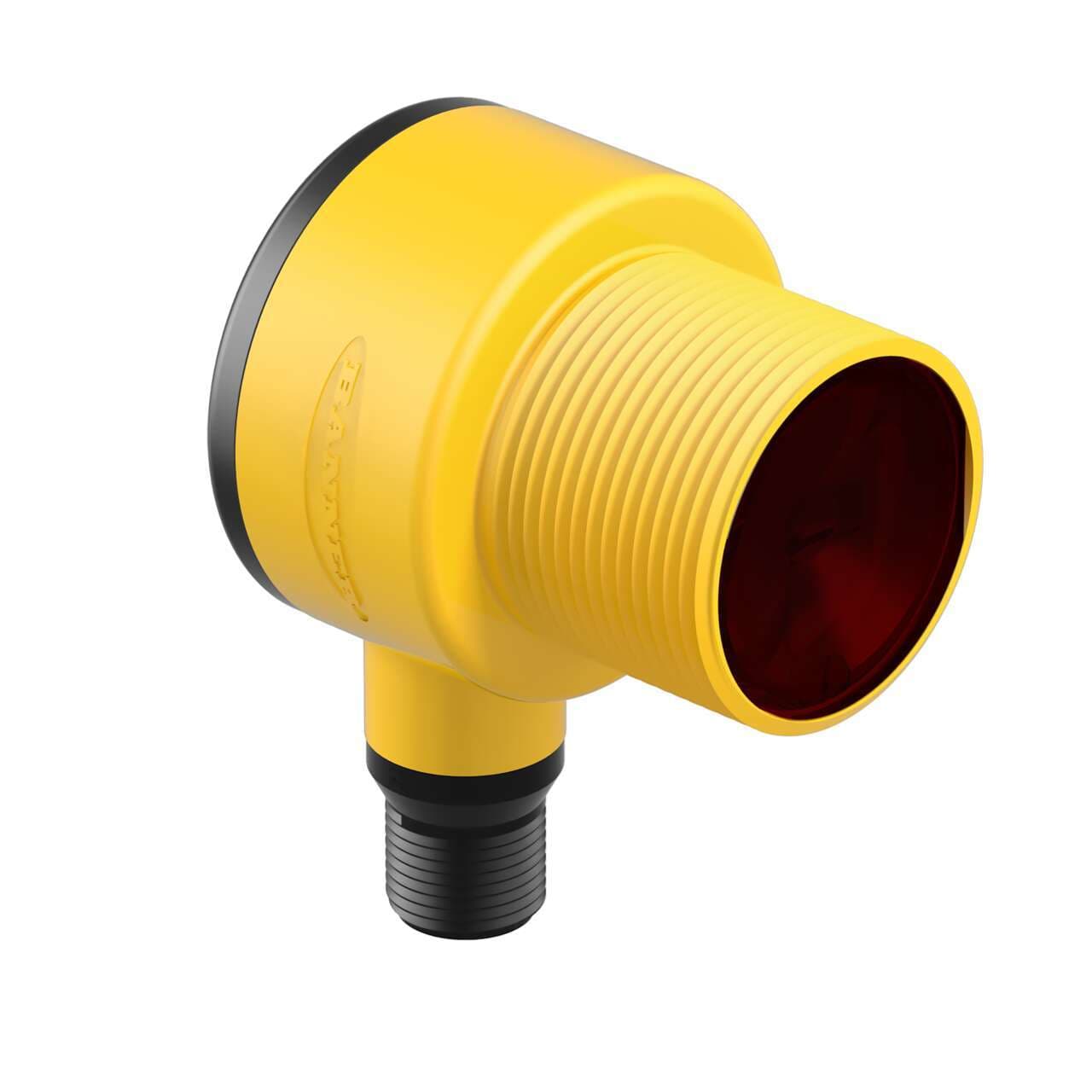

Banner Engineering T303EQ1 is a photo-electric sensor from the T30 series designed with a through-beam system, functioning as an emitter alone. It features a thermoplastic housing and is pre-equipped with a 4-pin 1/2" micro connector for connectivity. This sensor operates within a supply voltage range of 20Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It is designed to work within an ambient air temperature range of -40 to +70°C. The T303EQ1 offers a high degree of protection rated at IP69K NEMA 6P, making it suitable for demanding environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. With a sensing distance of up to 60 meters and an infrared light color at a wavelength of 950 nm, it provides a quick response time of 16ms for turning on and 8ms for turning off.
