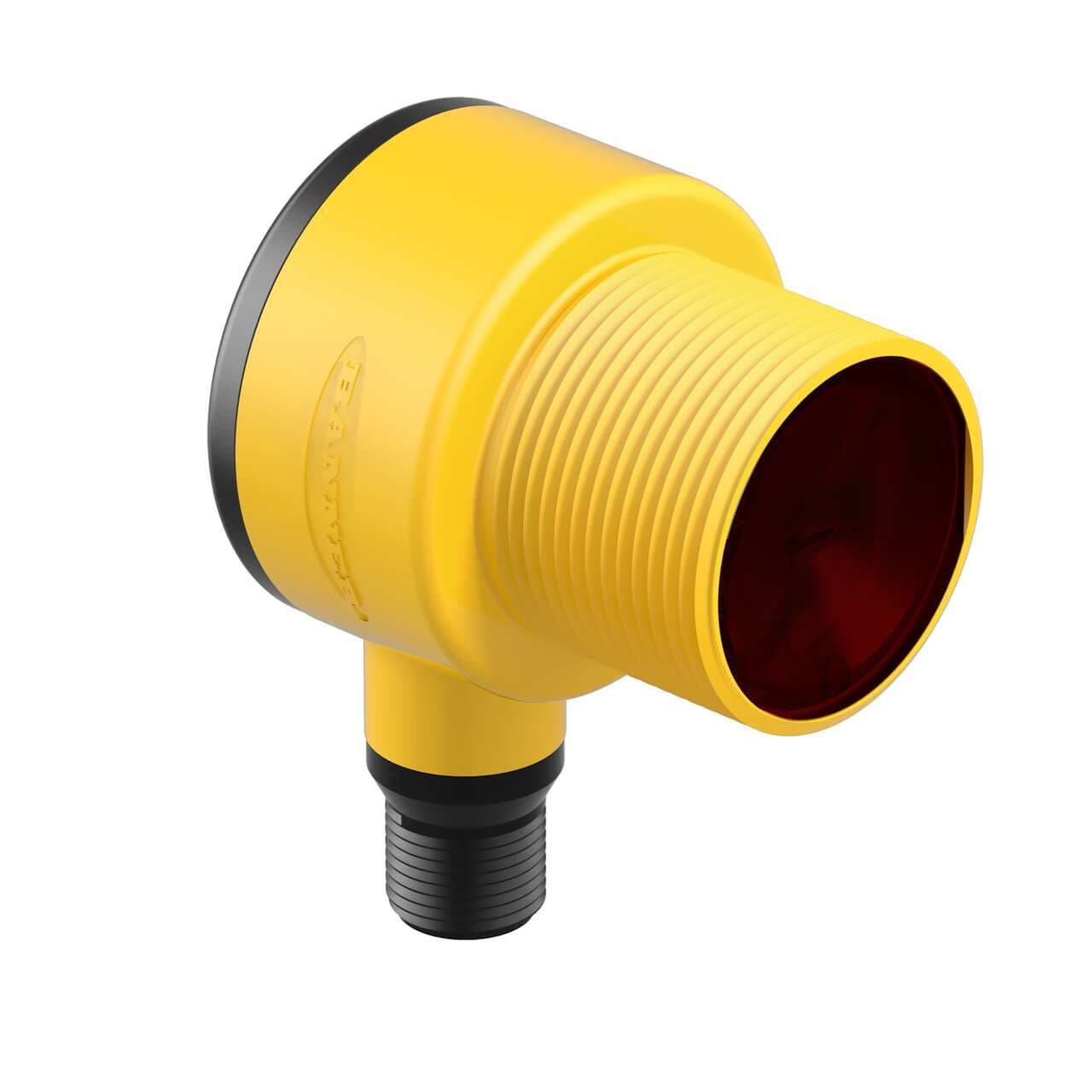

T306EQ Banner Proximity Sensors
Part#:T306EQ
Alt. Part#:33442
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Emitter; Range: 60 m; Input: 10-30 V dc; Output: Not Applicable; 4-pin M12 Integral QD
Product Details
- Weight 89.811216 g
- Country Of Origin US
- Primary brand Banner Engineering
- Wavelength 950 nm
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Response time (ON) 3ms / 0.003 s(OFF) 1.5ms / 0.0015 s
- Compliant with standard(s) cULus cCSAus CE
- Product series / family name EZ-BEAM series
- Light Color Infrared (IR)
- Degree of protection IP69K NEMA 6P
- Sub-range name T30 series
- Design through-beam system / opposed mode
- Thread size M30
- Material thermoplastic housing
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 33442
- Sensing Mode (General) Opposed
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Adjustments N/A
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) No
- Feature: Health/ Marginal Signal Output Yes
- Max Sensing Distance (mm) 60000
- Output response time (ms) 3 ON/1.5 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Sensing Mode (Detailed) Emitter
- Operation N/A
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Connection Integral QD
- Repeatability (µs) 375
- IO Link No
- Power DC
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Barrel Diameter (mm) 30
- Feature: Audible No
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Feature: Washdown Rated Yes
- DeviceNet No
- Outputs N/A
- Special Feature: Remote Teach No
- Indicator LEDs
- Opposed Mode Emitter/Receiver Emitter
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T306EQ on Powermatic Associates is $57.00. Order now.
About the product
Banner Engineering T306EQ is a photo-electric sensor from the T30 series designed with a through-beam system, functioning as an emitter alone. It features a thermoplastic housing and is pre-equipped with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to work within an ambient air temperature range of -40 to +70°C. The T306EQ offers a high degree of protection with an IP69K and NEMA 6P rating, ensuring durability in various environmental conditions. Its M30 cylindrical threaded/barrel shape facilitates easy installation. With a sensing distance of up to 60 meters and a light color of infrared (IR) at a wavelength of 950 nm, it provides a quick response time of 3ms for turning on and 1.5ms for turning off.
