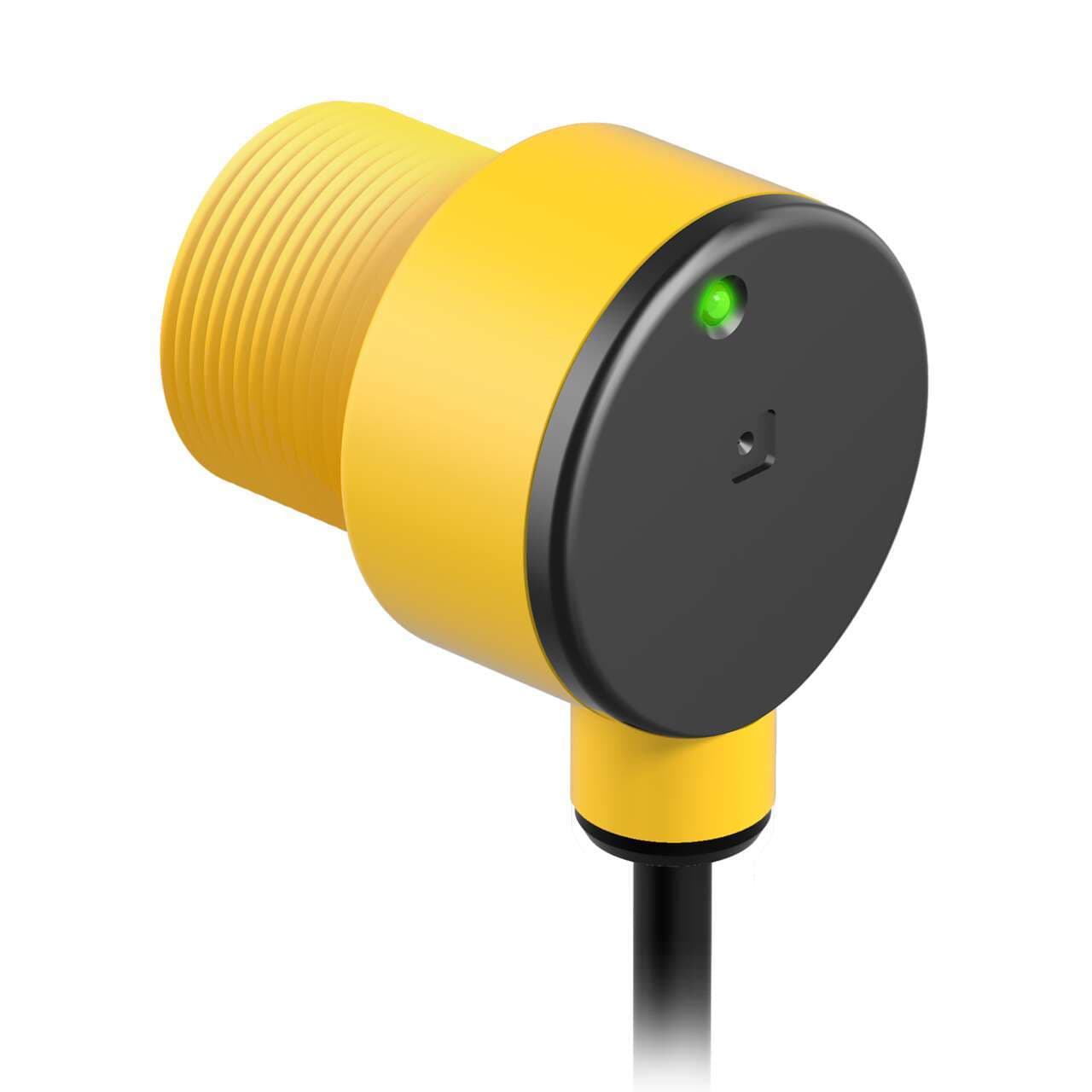

T306E Banner Proximity Sensors
Part#:T306E
Alt. Part#:32483
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Emitter; Range: 60 m; Input: 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Cable
Product Details
- Weight 36.28736 g
- Country Of Origin US
- Primary brand Banner Engineering
- Sub-range name T30 series
- Wavelength 950 nm
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 6P
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Design through-beam system / opposed mode
- Shape Cylindrical threaded/barrel
- Material thermoplastic housing
- Main function Sensor (Photo-electric)
- Product series / family name EZ-BEAM series
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s) cULus cCSAus CE
- Thread size M30
- Order code / Manufacturer SKU 32483
- Response time (ON) 3ms / 0.003 s(OFF) 1.5ms / 0.0015 s
- Ambient air temperature for operation -40...+70 °C
- IO Link No
- Sensing Beam Infrared LED
- Sensing Mode (Detailed) Emitter
- Output response time (ms) 3 ON/1.5 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Quick Disconnect Type No QD
- Number of Pins 2
- Feature: Chemical Resistant No
- Cable Length (m) 2
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- Feature: Audible No
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Min Op. Temp. (°C) -40
- Power DC
- IP Rating IP69
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 60000
- Connection Cable
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver Emitter
- Outputs N/A
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 375
- Adjustments N/A
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Operation N/A
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Feature: Encapsulated Yes
- Feature: Health/ Marginal Signal Output Yes
- Feature: Washdown Rated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T306E on Powermatic Associates is $57.00. Order now.
About the product
Banner Engineering T306E is a photo-electric sensor from the T30 series, designed with a through-beam system in an opposed mode configuration. This sensor functions as an emitter alone, housed in a thermoplastic material. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The T306E operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a high degree of protection rated at IP69K NEMA 6P. The sensor has an M30 cylindrical threaded/barrel shape, capable of sensing distances up to 60m. It utilizes infrared (IR) light with a wavelength of 950 nm and has a response time of 3ms (ON) and 1.5ms (OFF). The thread size for mounting is M30.
