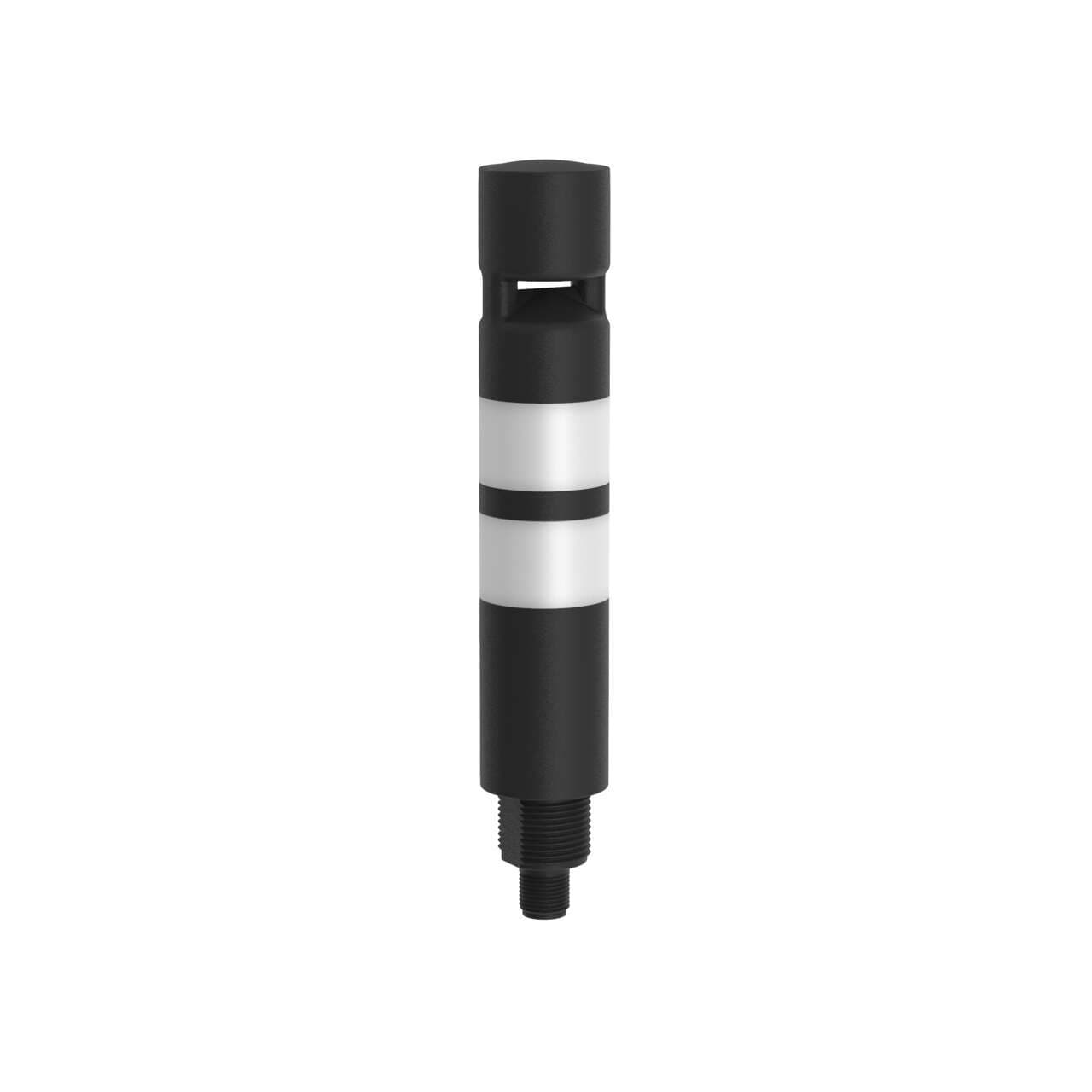

TL30BGRXXXAXQD Banner Signal Towers

Product Details

• Weight
  127.00576 g
• Country Of Origin
  MX
• Housing Style
  Base Mount - Tower
• Color Technology
  Standard LED
• Product Size (mm)
  30
• Quick Disconnect Type
  M12 (Euro)
• Number of Input Pins/Conductors
  5
• Power Source
  DC
• Mounting Thread
  M22 x 1.5
• Connection
  Integral QD
• Supply Voltage
  12-30 V dc
• Indication
  Yes
• Animation Option 1
  Solid On
• Primary Housing Color
  Black
• IO Link
  No
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Primary Housing Material
  Polycarbonate
• Color Option 1
  Green
• Number of Colors / Segments
  2
• Color Option 2
  Red
Input Type
Bimodal (PNP/NPN)
Max Op. Temperature (°C)
50
Power
DC
Number of Tower Light Segments
2
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Environmental Rating
IP65
Feature: Audible
Yes
Audible Operating Frequency (kHz)
2.8
Min Op. Temperature (°C)
-40
Feature: Quick Disconnect
Yes
Pro-Editor Compatible (Discrete)
No
Max Current - Audible Alarm (mA)
20
Feature: Hazardous Area
No
Audible Alarm Type
Continuous
Physical Dimensions (LxWxH or DxH mm)
30.0 x 176.6
Primary Window Material
Polycarbonate Diffused
Feature: Chemical Resistant
No
Lumens Color 1
7.5
Max Current Color (mA)
40
Max Input Response Time (ms)
1
Storage Temp (°C)
-40 to 70
Wireless
No
NEMA Type and UL Type Rating
UL 4X
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Multi-Color Device
Simultaneous Colors On
Lumens Color 2
2.5
Max Audible Intensity (db at 1m)
90
Modbus RTU
No
