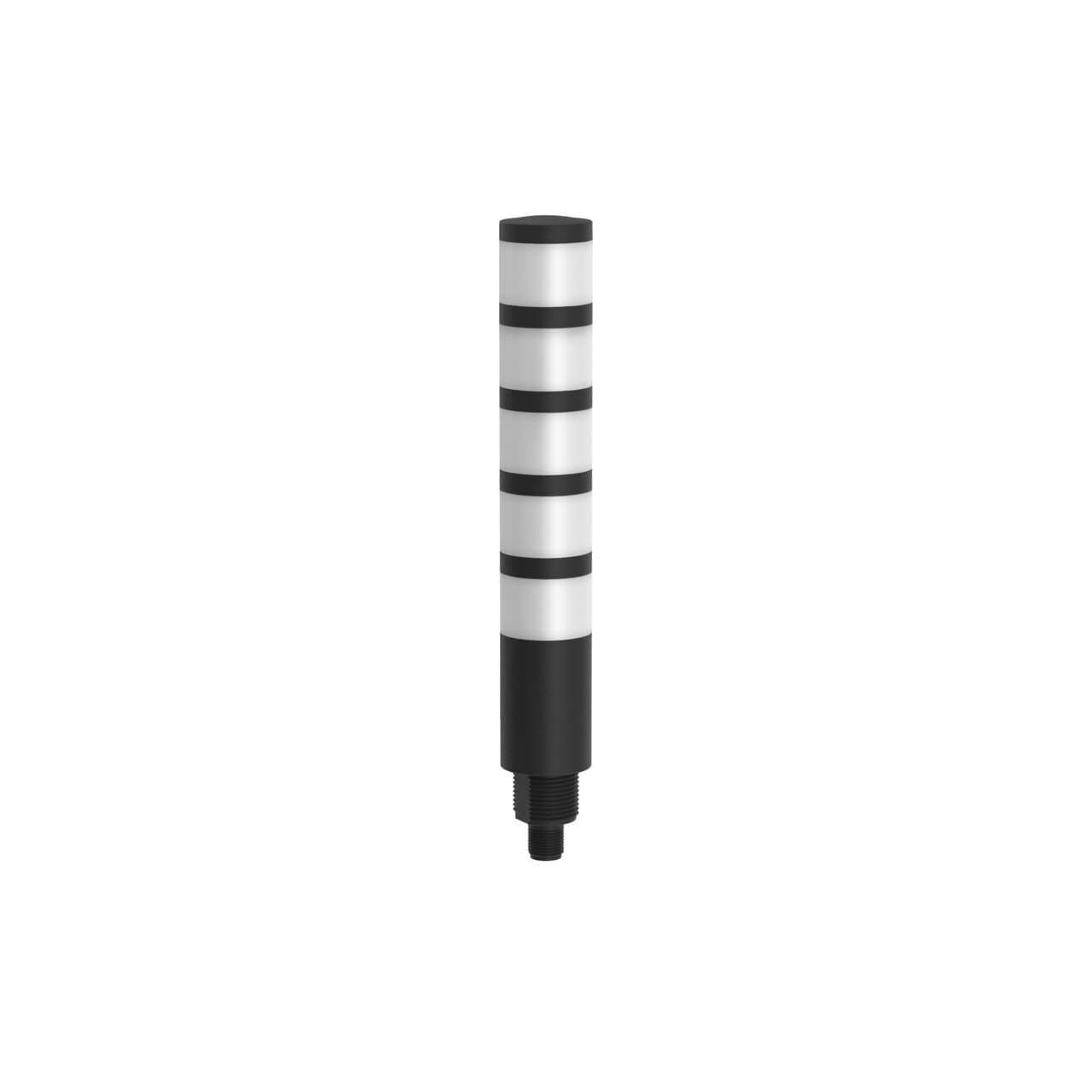

TL30BWBGYRNXQD Banner Signal Towers

Product Details

• Weight
  153.314096 g
• Country Of Origin
  MX
• Product Size (mm)
  30
• Multi-Color Device
  Simultaneous Colors On
• Primary Housing Material
  Polycarbonate
• Lumens Color 1
  7.5
• Color 2 - Wavelength/Color Temp/Coordinates
  470 nm
• Number of Input Pins/Conductors
  8
• Power Source
  DC
• Color Technology
  Standard LED
• Color 3 - Wavelength/Color Temp/Coordinates
  525 nm
• Max Current Color (mA)
  40
• Primary Housing Color
  Black
• Indication
  Yes
• Connection
  Integral QD
• Lumens Color 2
  2.0
• Supply Voltage
  12-30 V dc
• Housing Style
  Base Mount - Tower
• Color Option 2
  Blue
• Color 4 - Wavelength/Color Temp/Coordinates
  592 nm
Physical Dimensions (LxWxH or DxH mm)
30.0 x 211.7
Feature: Hazardous Area
No
Power
DC
Animation Option 1
Solid On
Color Option 3
Green
Color Option 5
Red
Environmental Rating
IP65
Number of Colors / Segments
5
Number of Tower Light Segments
5
Lumens Color 5
2.5
Color 5 - Wavelength/Color Temp/Coordinates
625 nm
IO Link
No
Mounting Thread
M22 x 1.5
Quick Disconnect Type
M12 (Euro)
Color Option 4
Yellow
Max Op. Temperature (°C)
50
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color Option 1
White
Lumens Color 3
7.5
Input Type
Bimodal (PNP/NPN)
Modbus RTU
No
Color 1 - Wavelength/Color Temp/Coordinates
5500K
Lumens Color 4
6.5
Max Input Response Time (ms)
1
Storage Temp (°C)
-40 to 70
Wireless
No
Pro-Editor Compatible (Discrete)
No
NEMA Type and UL Type Rating
UL 4X, 13
Feature: Audible
No
Feature: Chemical Resistant
No
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Diffused
Feature: Quick Disconnect
Yes
