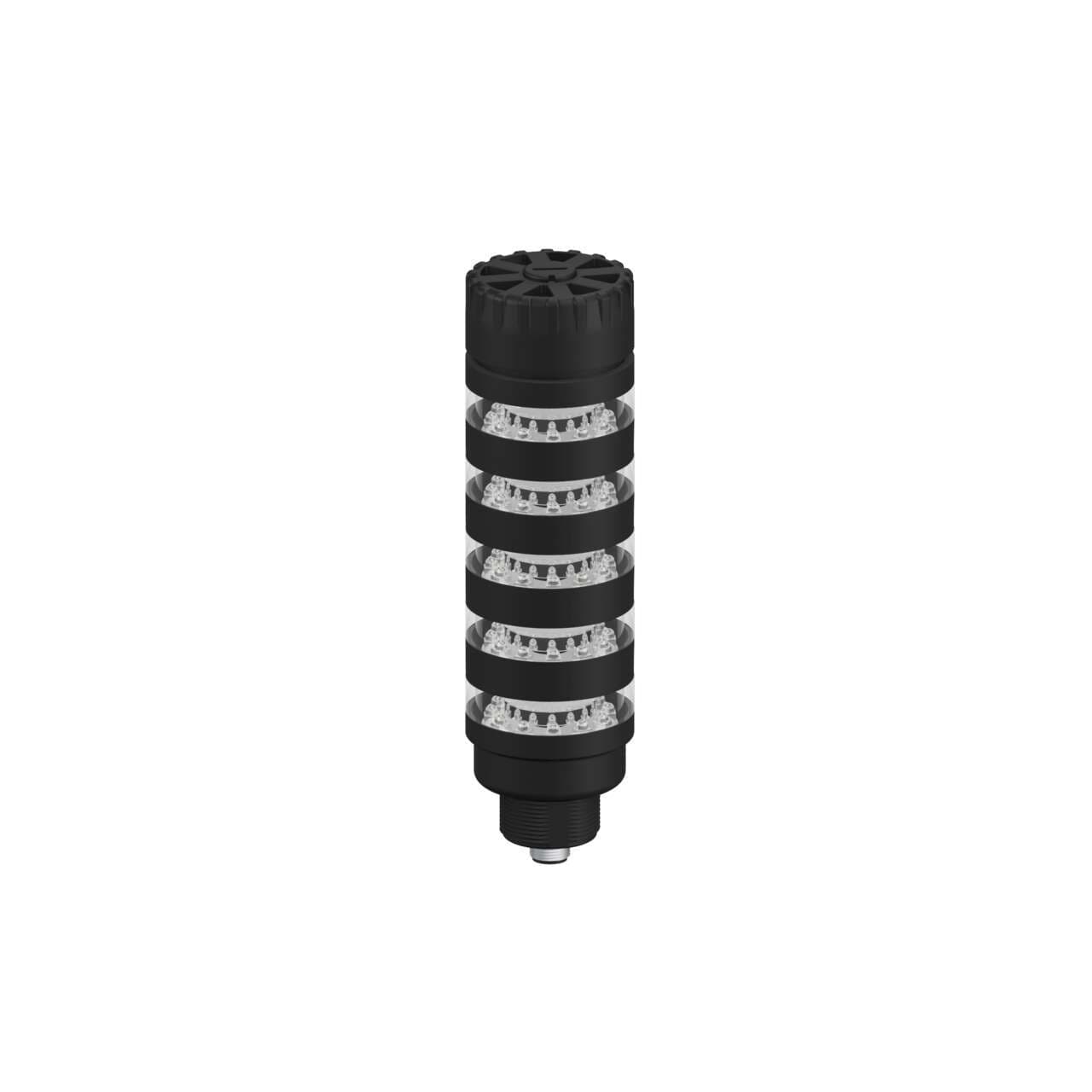

TL50BL5AKQ Banner Signal Towers
Part#:TL50BL5AKQ
Alt. Part#:804972
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL50 Pro Tower Light with IO-Link Audible, Beacon Black Housing: 5 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 312.97848 g
- Country Of Origin US
- Product Size (mm) 50
- Supply Voltage 18-30 V dc
- Input Type Communication Protocol
- Primary Housing Color Black
- Power Source DC
- Number of Input Pins/Conductors 4
- Max Input Response Time (ms) 20
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 5
- Color Technology RGB IO-Link
- Dimming Option Programmable
- Environmental Rating IP50
- Power DC
- Color Option 1 RGB
- Min Audible Intensity (db at 1m) 62
- Max Op. Temperature (°C) 50
- Housing Style Base Mount - Tower
- Number of Tower Light Segments 6
- Audible Alarm Type Continuous
- Feature: Quick Disconnect Yes
- Primary Housing Material ABS
- Connection Integral QD
- Max Audible Intensity (db at 1m) 92
- Min Op. Temperature (°C) -20
- Indication Yes
- Animation Option 1 Programmable
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Current - Audible Alarm (mA) 25
- Primary Window Material Polycarbonate Clear
- Wireless No
- Color Input Control Communication Protocol
- Max Current Color (mA) 100
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 207.7
- Feature: Audible Yes
- Multi-Color Device Simultaneous Colors On
- Audible Operating Frequency (kHz) 2.7
- IO Link Yes
- Indication Intensity High Brightness & Daylight Visible
- NEMA Type and UL Type Rating NEMA and UL 13
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL50BL5AKQ on Powermatic Associates is $536.00. Order now.
About the product
Banner Engineering TL50BL5AKQ is a tower light designed for audible and visual signaling in automation environments. This monolithic, continuous sound, IO-Link compatible tower light features 5-tiers with 14-color multicolor LED illumination. It is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. The device has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The housing is black, and it operates on a supply voltage of 24Vac (50Hz/60Hz) or 18Vdc-30Vdc (24Vdc nom.). It offers flexible mounting options, including surface or base pole with an M30 thread. Designed to operate in ambient air temperatures ranging from -20°C to +50°C, it has a degree of protection rated at IP50 NEMA 13 UL type 13, making it suitable for a variety of industrial settings. The current consumption is 100mA, and its cylindrical shape allows for efficient use of space.
