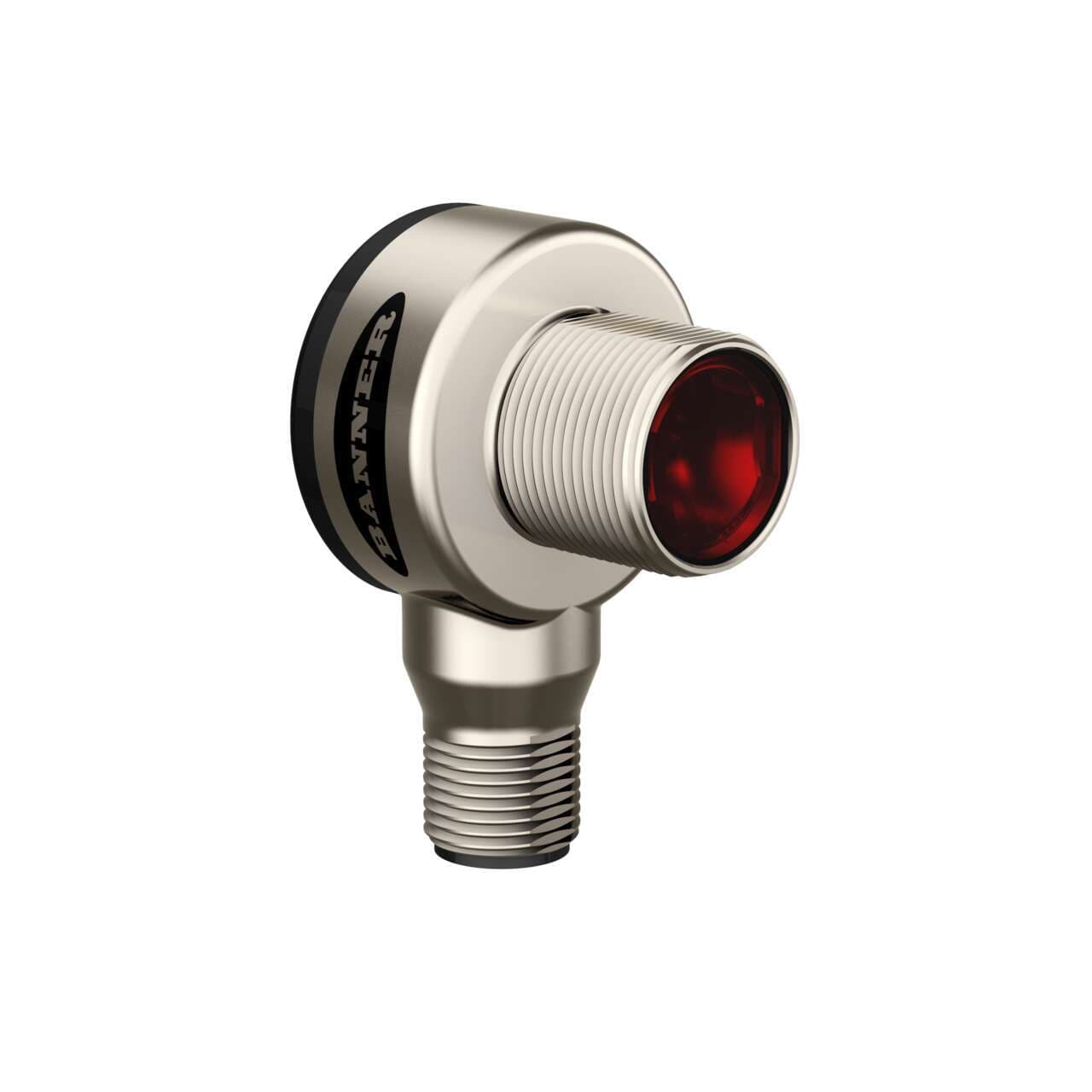

TM18VN6FF100IRQ8 Banner Proximity Sensors
Part#:TM18VN6FF100IRQ8
Alt. Part#:86487
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
TM18: IR Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: NPN Complementary; M12 Integral QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Product series / family name EZ-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Operating mode Light-ON Dark-ON
- Design background suppression system heavy-duty
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 86487
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Sub-range name TM18 series
- Wavelength 870 nm
- Material Nickel-plate die-cast Zinc housing Acrylic lns.
- Compliant with standard(s) cULus CE
- Shape Cylindrical threaded/barrel
- Degree of protection IP69K NEMA 6
- Response time 3ms / 0.003 s
- Light Color Infrared (IR)
- Thread size M18
- Ambient air temperature for operation -40...+70 °C
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Lens Material Acrylic
- Sensing Mode (General) Proximity
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Power DC
- Output response time (ms) 3 ON/1.5 OFF
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Max Op. Temp. (°C) 70
- Repeatability (µs) 185
- Feature: Washdown Rated Yes
- Input/Output Discrete
- Operation Light/Dark Operate
- IP Rating IP67, IP69
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- IO Link No
- Max Sensing Distance (mm) 100
- Min Op. Temp. (°C) -40
- Sensing Beam Wavelength 870
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant No
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Housing Style Barrel
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Timing (Hold/Delay) No
- Outputs NPN
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Indicator LEDs
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VN6FF100IRQ8 on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering TM18VN6FF100IRQ8 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector and operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc. It is built to function in ambient air temperatures ranging from -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6, making it suitable for harsh environments. The sensor features a cylindrical threaded/barrel shape with an M18 thread size, a sensing distance of 100mm, and utilizes infrared light with a wavelength of 870 nm for detection. It has a digital output (NPN transistor) and a quick response time of 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.
