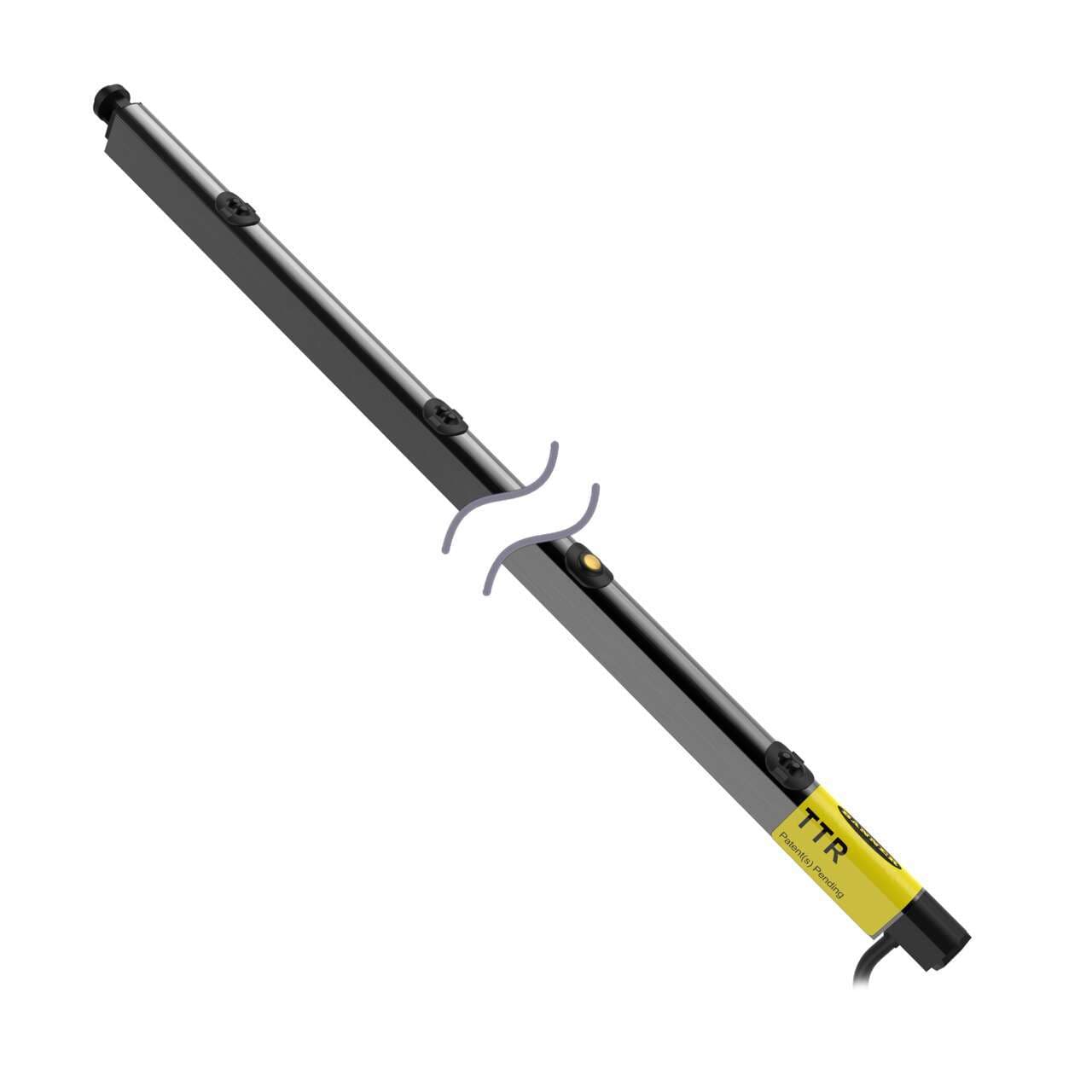

TTR490APSB5D-2.0FL-CTR Banner Safety Light Curtains
Part#:TTR490APSB5D-2.0FL-CTR
Alt. Part#:809712
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 5 Beam Sensor Array 19.29 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap D: Flat Up / Round
Product Details
- Weight 331.12216 g
- Country Of Origin MX
- Sensing Mode (Detailed) Diffuse
- Slot Overall Depth (mm) 12
- Lens Material Polycarbonate
- Distance to First Beam [mm] 58.8
- Power DC
- Outputs PNP
- Slot Depth/Array Length (mm) 490
- Primary Housing Material Black Anodized Aluminum
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Operation Light Operate
- Connection Cable

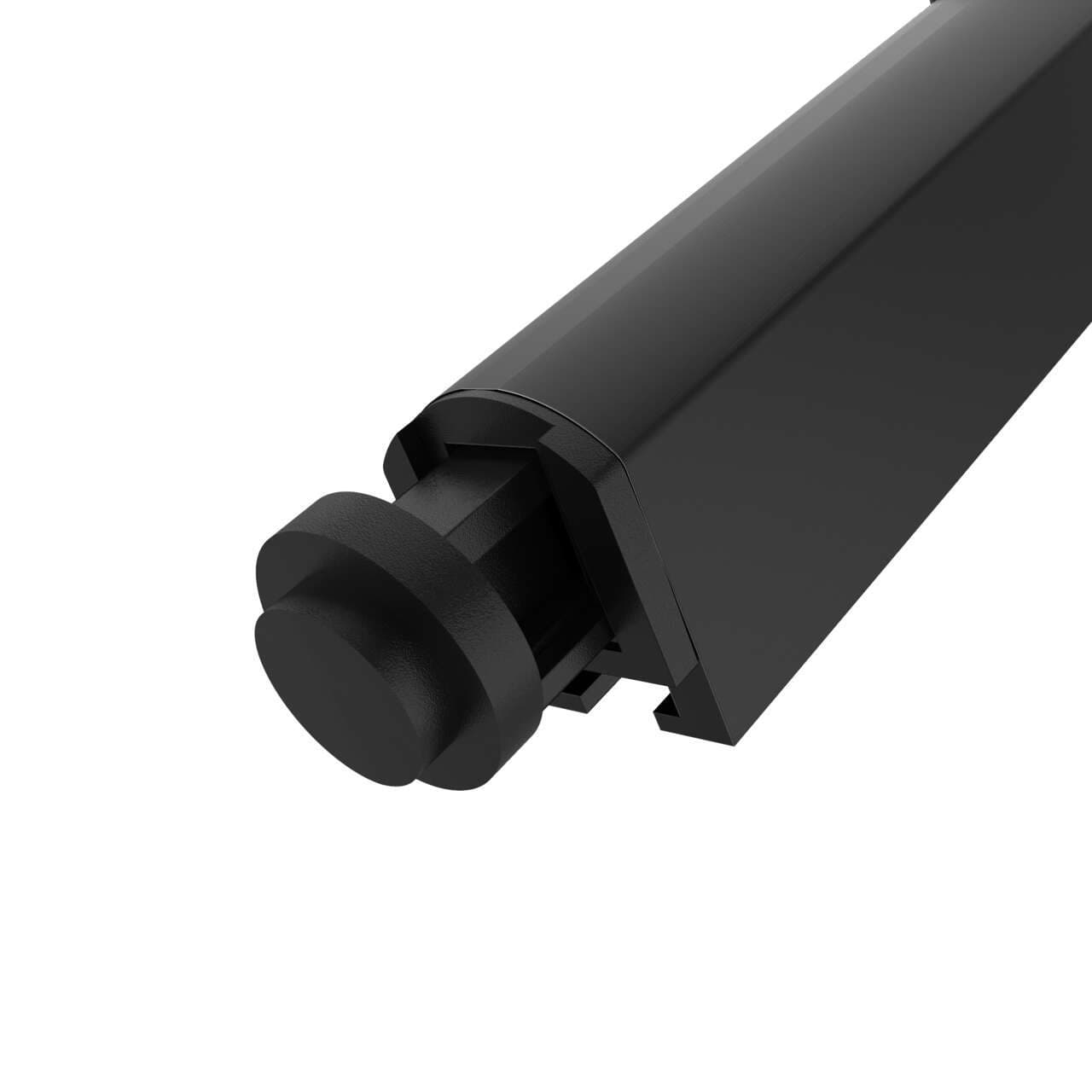

- End Cap Type D: Hex Flat Up / Spring 8 mm Round
- NEMA Rating N/A
- Max Sensing Range (mm) 120
- Adjustments N/A
- Housing Style Roller Conveyor
- Power Supply/Supply Voltage 18-30 V dc
- Output response time (ms) 1
- Indicator Indicator LEDs
- Number of Beams 5
- Delay at Power-up (ms) 1500
- Number of Pins 4
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- IP Rating IP50
- Max Op. Relative Humidity (%) 95% @ 55°C
- Beam to Beam Spacing [mm] 93.1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR490APSB5D-2.0FL-CTR on Powermatic Associates is $197.00. Order now.
About the product
Banner Engineering TTR490APSB5D-2.0FL-CTR is a sensor array designed in a diffuse mode with 5 beams. This part features a pre-wired connection with a 2m cable and bare end flying leads. It has a rectangular shape with dimensions including a 490mm array length and a beam spacing/pitch of 93.1mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to operate within an ambient air temperature range of -10 to +70°C and offers a degree of protection rated at IP50. This sensor array has a sensing distance of 120mm and utilizes an infrared (IR) light with a wavelength of 940 nm. It is equipped with 1 x digital output (PNP transistor).
