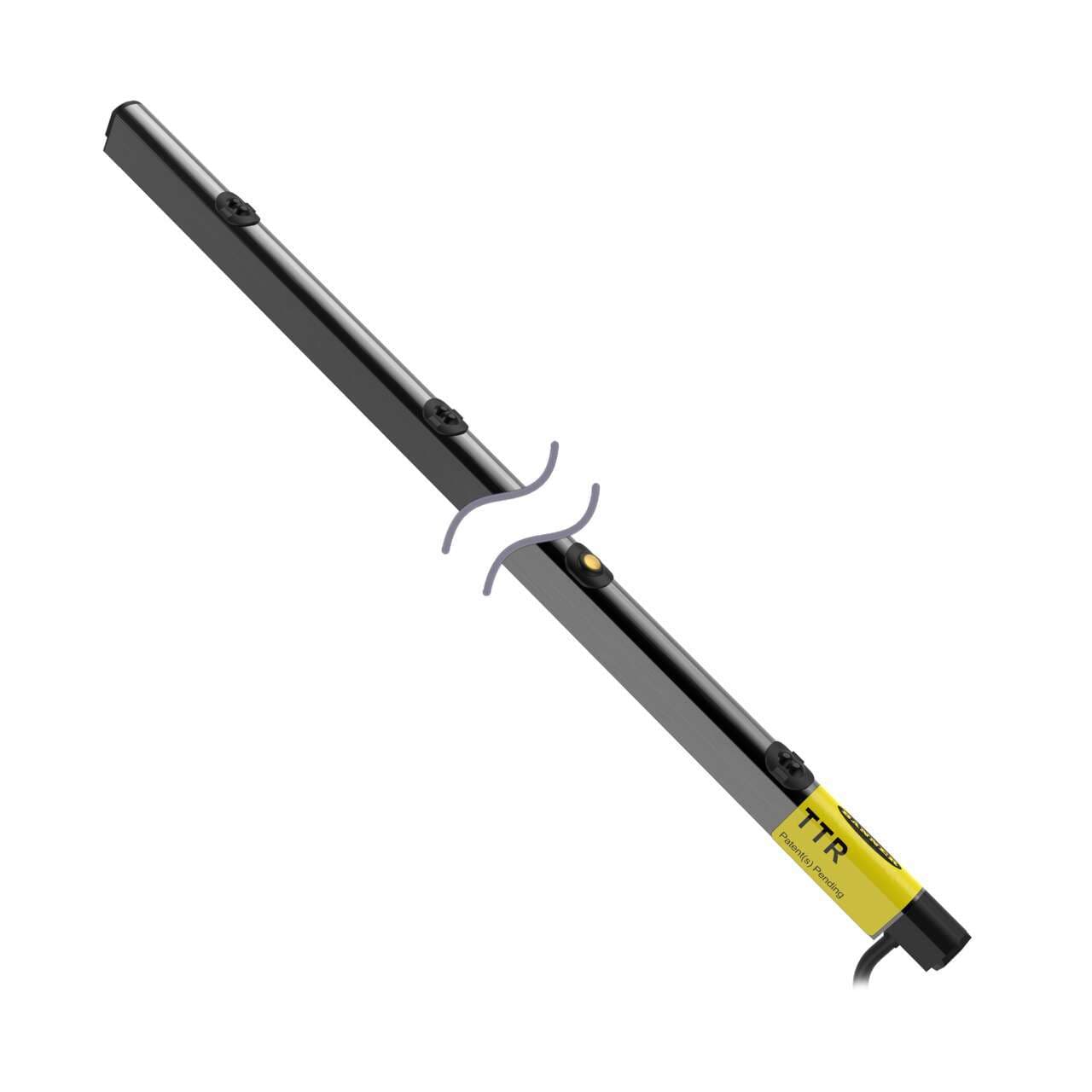

TTR500BMSB5B-2.0FL-CTR Banner Safety Light Curtains

TTR500BMSB5B-2.0FL-CTR on Powermatic Associates
Banner
  • TTR500BMSB5B-2.0FL-CTR
  • TTR500BMSB5B-2.0FL-CTR

Part#:TTR500BMSB5B-2.0FL-CTR

Alt. Part#:810088

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

TTR Series 5 Beam Sensor Array 19.7 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads B: Point Up / Hex & Round Endcap

Product Details

  • Weight
    285.76296 g
  • Country Of Origin
    MX
  • Min Op. Temperature (°C)
    -10
  • Slot Depth/Array Length (mm)
    558
  • Adjustments
    N/A
  • IP Rating
    IP50
  • Sensing Mode (Detailed)
    Diffuse
  • Outputs
    PNP
  • Operation
    Dark Operate
  • Number of Beams
    6
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Lens Material
    Polycarbonate
  • Beam to Beam Spacing [mm]
    93.1
  • Indicator
    Indicator LEDs
  • NEMA Rating
    N/A
  • Distance to First Beam [mm]
    61
  • Delay at Power-up (ms)
    1500
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    18-30 V dc
  • Primary Housing Material
    Black Anodized Aluminum
  • Number of Pins
    4
  • Repeatability (µs)
    N/A
  • Power
    DC
  • Slot Overall Depth (mm)
    19
  • Max Sensing Range (mm)
    120
  • Output response time (ms)
    1
  • Housing Style
    Roller Conveyor
  • Cable Length (m)
    2
  • Max Op. Temperature (°C)
    55
  • End Cap Type
    T: T-Slot Mounting
  • Quick Disconnect Type
    M8 (Pico)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR500BMSB5B-2.0FL-CTR on Powermatic Associates is $197.00. Order now.

About the product

Banner Engineering TTR500BMSB5B-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 5 beams. This part is pre-wired with a 2m cable that has bare end flying leads for connection. It has a rectangular shape with dimensions specifying a 500mm array length and operates within a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The sensor array is designed to function within an ambient air temperature range of -10 to +70°C and offers a degree of protection rated at IP50. The distance between beams is 93.1mm, and it has a sensing distance of 120mm. This part includes 1 x digital output (PNP/NPN transistor) and utilizes infrared (IR) light with a wavelength of 940 nm for detection.
