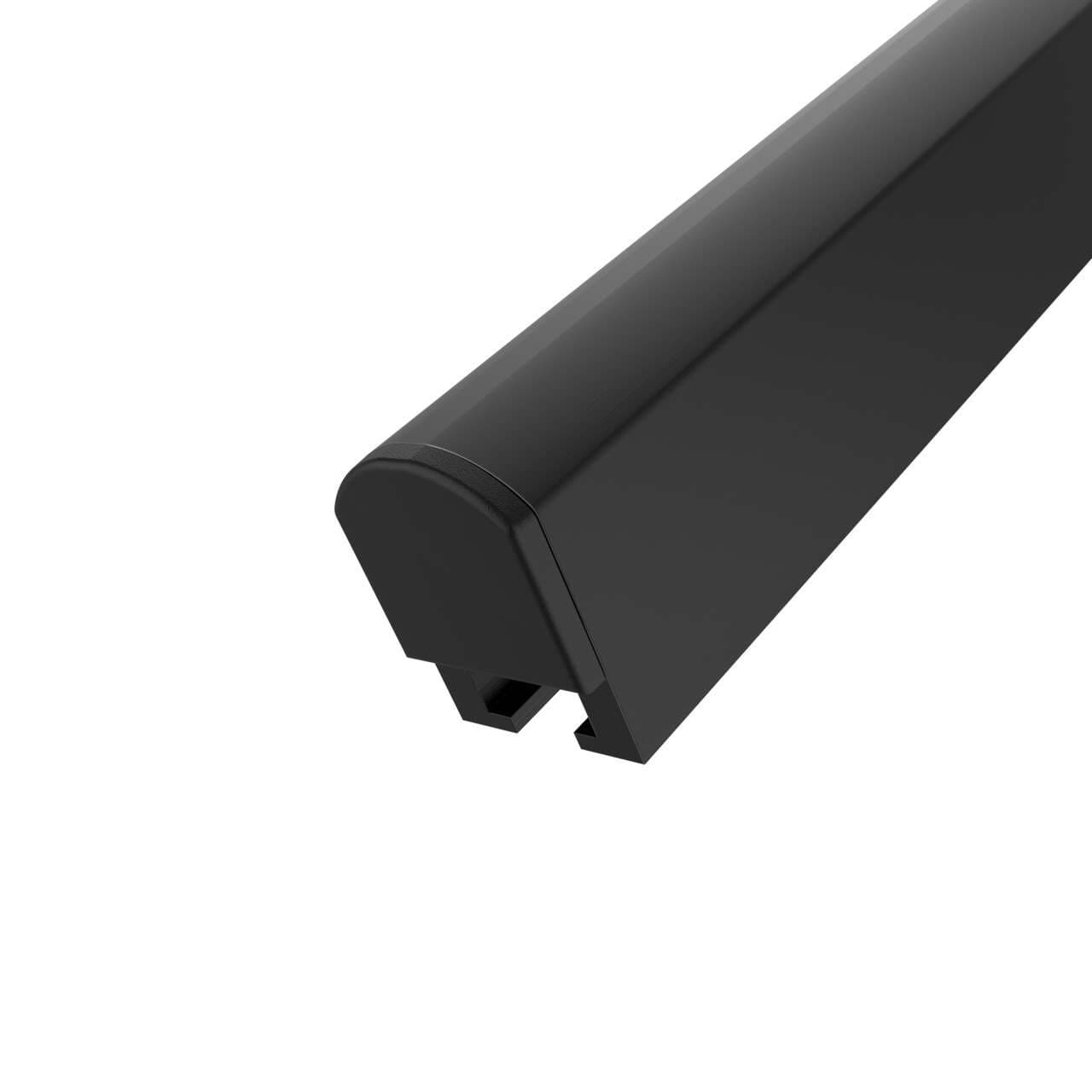

TTR610BMSB6T-2.0FL-CTR Banner Safety Light Curtains
Part#:TTR610BMSB6T-2.0FL-CTR
Alt. Part#:810316
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 6 Beam Sensor Array 24.0 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads
Product Details
- Weight 358.33768 g
- Country Of Origin MX
- Power DC
- Quick Disconnect Type No QD
- Lens Material Polycarbonate
- Beam to Beam Spacing [mm] 93.1
- Primary Housing Material Black Anodized Aluminum
- Number of Pins 4
- Indicator Indicator LEDs
- NEMA Rating N/A
- Sensing Mode (Detailed) Diffuse
- Outputs Bimodal
- Special Feature: Remote Teach No
- Housing Style Sensing Array Bar
- Delay at Power-up (ms) 1500
- Cable Length (m) 2
- Adjustments N/A
- Distance to First Beam [mm] 72.25
- Max Sensing Range (mm) 120
- Max Op. Relative Humidity (%) 95% @ 55°C
- Slot Depth/Array Length (mm) 604
- Power Supply/Supply Voltage 18-30 V dc
- IP Rating IP50
- Connection Cable
- Output response time (ms) 1
- Min Op. Temperature (°C) -10
- Number of Beams 6
- End Cap Type T: T-Slot Mounting
- Slot Overall Depth (mm) 19
- Max Op. Temperature (°C) 55
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR610BMSB6T-2.0FL-CTR on Powermatic Associates is $241.00. Order now.
About the product
Banner Engineering TTR610BMSB6T-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 6 beams. This part is pre-wired with a 2m cable that ends in bare flying leads for connectivity. It has a rectangular shape with dimensions including a 610mm array length and a beam spacing/pitch of 93.1mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is capable of operating in ambient air temperatures ranging from -10 to +70 degrees Celsius. The sensor offers a degree of protection rated at IP50. It includes 1 digital output (PNP/NPN transistor) and has a sensing distance of 120mm. The light emitted by the sensor is in the infrared (IR) spectrum with a wavelength of 940 nm.
