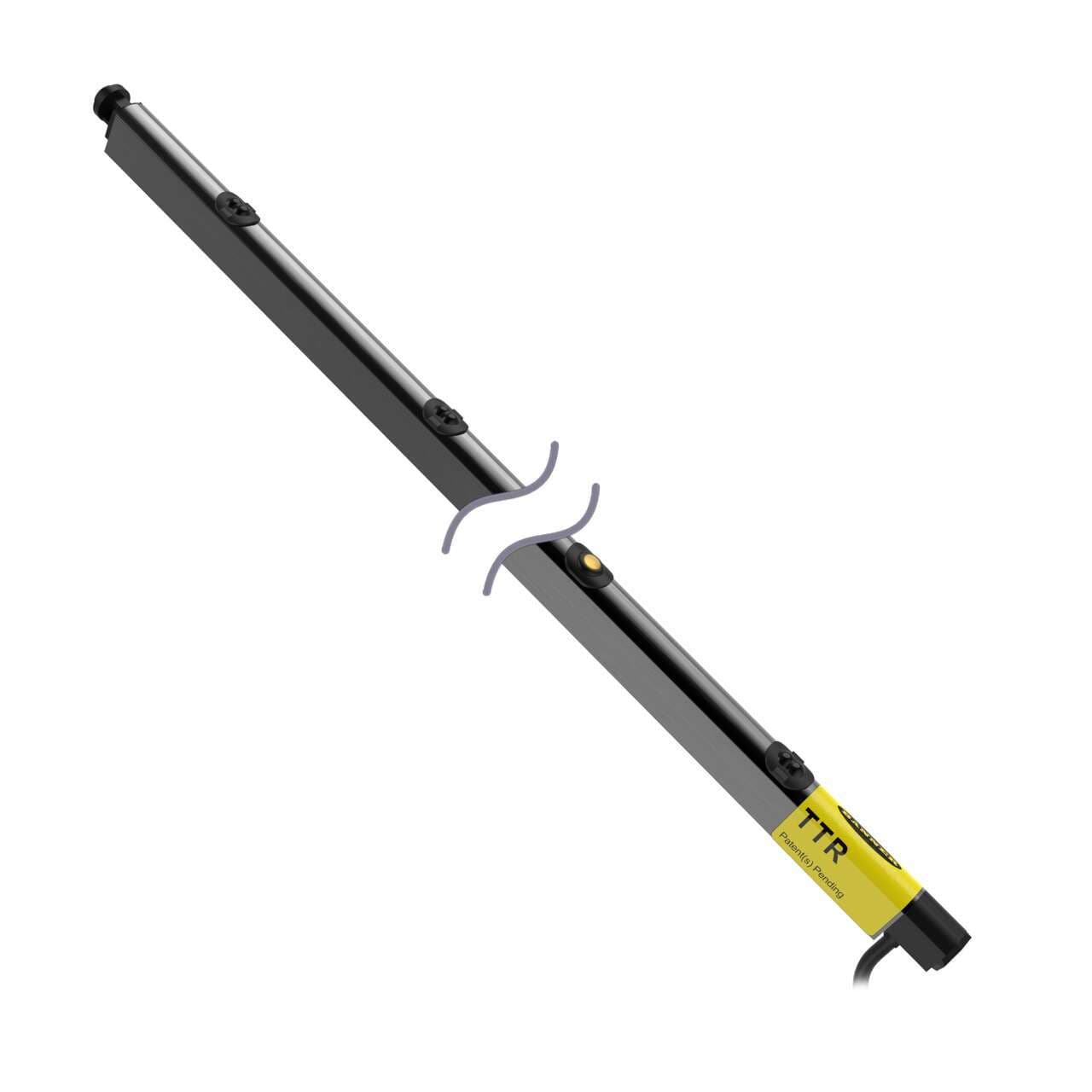

TTR637APSB6D-2.0RJ-CTR Banner Safety Light Curtains
Part#:TTR637APSB6D-2.0RJ-CTR
Alt. Part#:809749
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 6 Beam Sensor Array 25.08 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) RJ11 Conn. Endcap D: Flat Up / Round
Product Details
- Weight 367.40952 g
- Country Of Origin MX
- Sensing Mode (Detailed) Diffuse
- Output response time (ms) 1
- Max Op. Relative Humidity (%) 95% @ 55°C
- Primary Housing Material Black Anodized Aluminum
- Power Supply/Supply Voltage 18-30 V dc
- NEMA Rating N/A
- Max Sensing Range (mm) 120
- Indicator Indicator LEDs
- Connection Pigtail QD
- Adjustments N/A
- IP Rating IP50
- Number of Pins 4
- Min Op. Temperature (°C) -10
- End Cap Type D: Hex Flat Up / Spring 8 mm Round
- Distance to First Beam [mm] 85.75
- Slot Depth/Array Length (mm) 637
- Lens Material Polycarbonate
- Cable Length (m) 2
- Slot Overall Depth (mm) 12
- Max Op. Temperature (°C) 55
- Outputs PNP
- Delay at Power-up (ms) 1500
- Beam to Beam Spacing [mm] 93.1
- Housing Style Roller Conveyor
- Power DC
- Quick Disconnect Type RJ11
- Operation Light Operate
- Number of Beams 6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR637APSB6D-2.0RJ-CTR on Powermatic Associates is $247.00. Order now.
About the product
Banner Engineering TTR637APSB6D-2.0RJ-CTR is a sensor array designed with a diffuse mode endcap D (flat up / round) featuring 6 beams. This part is pre-wired with a 2m pigtail terminated with an RJ11 connector. It has a rectangular shape with dimensions including a 637mm array length and a beam spacing/pitch of 93.1mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is capable of operating within an ambient air temperature range of -10 to +70°C and offers a degree of protection rated at IP50. This sensor array includes 1 x digital output (PNP transistor), has a sensing distance of 120mm, and utilizes infrared (IR) light with a wavelength of 940 nm.
