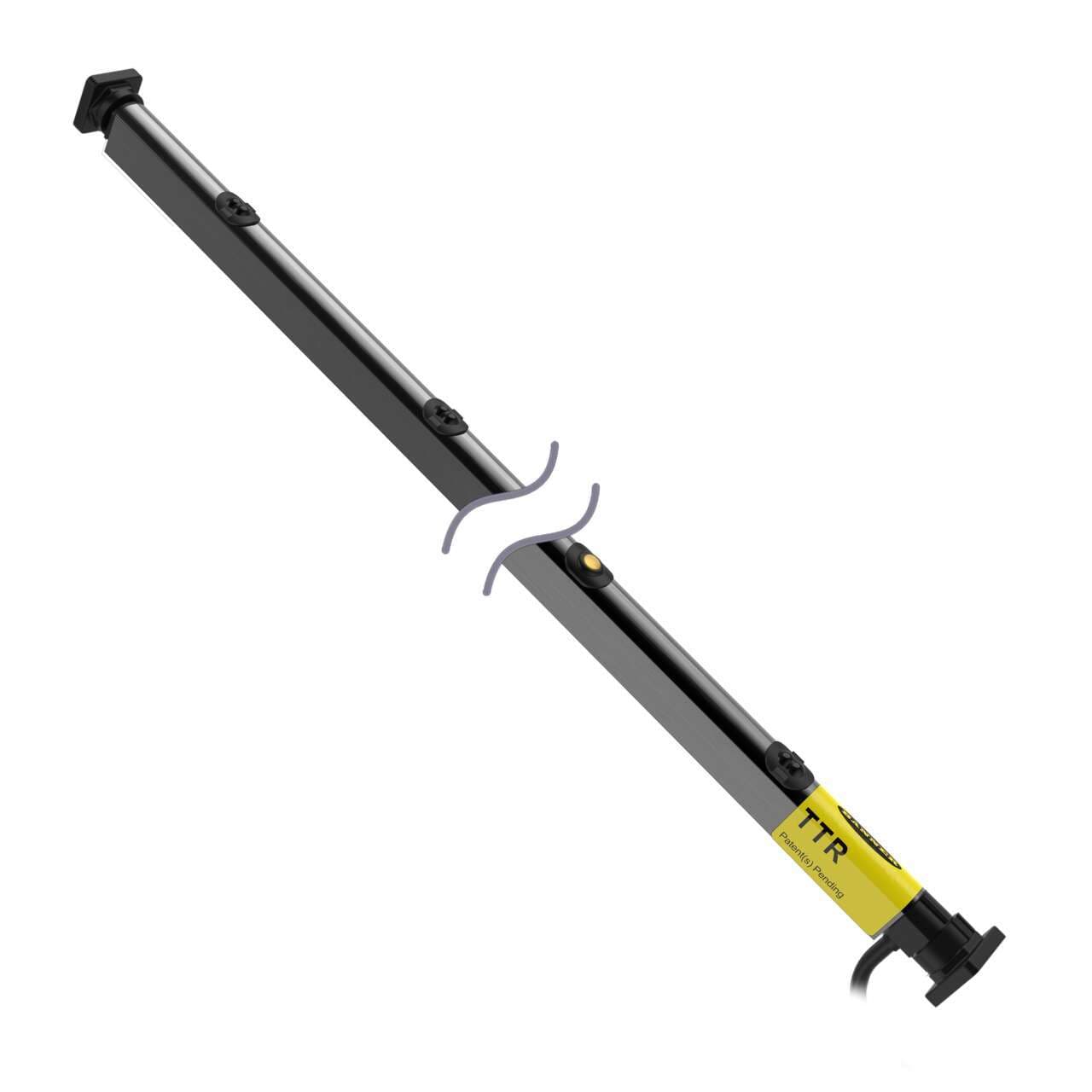

TTR750BMSB7G-2.0FL-CTR Banner Safety Light Curtains

Name: TTR750BMSB7G-2.0FL-CTR
Brand: Banner
Price: 260 USD
Availability: BackOrder

TTR750BMSB7G-2.0FL-CTR on Powermatic Associates

Part#:TTR750BMSB7G-2.0FL-CTR

Alt. Part#:810975

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

TTR Series 7 Beam Sensor Array 29.5 in Between Frame; 30.0 in Conveyor Width; Beam Spacing: 93.1 mm; Range: 120 mm; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads; Adhesive Bracket Kit

Product Details

Weight
399.16096 g
Country Of Origin
MX
End Cap Type
G: Adj Hex + Bracket / Spring 11 mm Hex - 8 mm Round+ Bracket
Power Supply/Supply Voltage
18-30 V dc
Operation
Light/Dark Operate
Number of Beams
7
Cable Length (m)
2
Number of Pins
4
Indicator
Indicator LEDs
Power
DC
Quick Disconnect Type
No QD
NEMA Rating
N/A
Connection
Cable
Lens Material
Polycarbonate
IP Rating
IP50
Primary Housing Material
Black Anodized Aluminum
Max Sensing Range (mm)
120
Adjustments
N/A
Min Op. Temperature (°C)
-10
Housing Style
Sensing Array Bar

Special Feature: Remote Teach

Max Op. Temperature (°C)

Sensing Mode (Detailed)

Diffuse

Outputs

Bimodal

Slot Overall Depth (mm)

Distance to First Beam [mm]

95.7

Slot Depth/Array Length (mm)

750

Output response time (ms)

Max Op. Relative Humidity (%)

95% @ 55°C

Delay at Power-up (ms)

1500

Beam to Beam Spacing [mm]

93.1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR750BMSB7G-2.0FL-CTR on Powermatic Associates is $260.00. Order now.

About the product

TTR Series 7 Beam Sensor Array 29.5 inch Between Frame, 30.0 inch Conveyor Width, Beam Spacing: 93.1 mm Range: 120 mm, Output: Bimodal Input: 18 - 30 V dc, 2.0 m (6 ft) Flying Leads, Adhesive bracket kit
