TTR762APSE3T-2.0FL-CTR Banner Safety Light Curtains

TTR762APSE3T-2.0FL-CTR on Powermatic Associates
Banner
  • TTR762APSE3T-2.0FL-CTR
  • TTR762APSE3T-2.0FL-CTR

Part#:TTR762APSE3T-2.0FL-CTR

Alt. Part#:811382

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

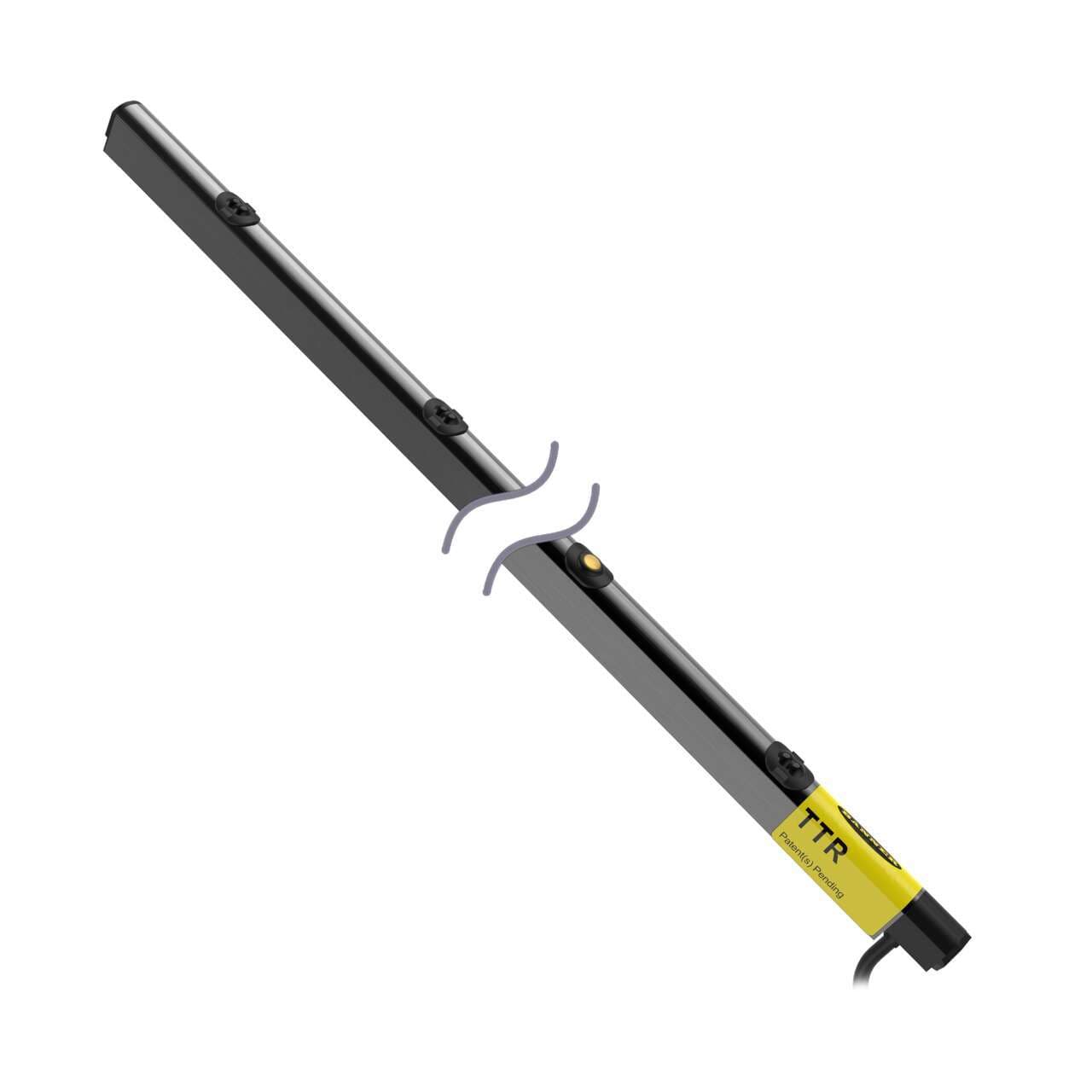

TTR Series 3 Beam Sensor Array 30.0 in Between Frame; Beam Spacing: 186.2 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap T: T-slot Mounting

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    MX
  • Cable Length (m)
    2
  • Sensing Mode (Detailed)
    Diffuse
  • Delay at Power-up (ms)
    1500
  • Number of Beams
    3
  • Beam to Beam Spacing [mm]
    186.2
  • Min Op. Temperature (°C)
    -10
  • Indicator
    Indicator LEDs
  • Max Op. Temperature (°C)
    55
  • IP Rating
    IP50
  • NEMA Rating
    N/A
  • Connection
    Cable
  • Distance to First Beam [mm]
    194.80
  • Adjustments
    N/A
  • Primary Housing Material
    Black Anodized Aluminum
  • Lens Material
    Polycarbonate
  • Power
    DC
  • Slot Overall Depth (mm)
    19
  • Quick Disconnect Type
    No QD
  • Operation
    Light Operate
  • End Cap Type
    T: T-Slot Mounting
  • Output response time (ms)
    1
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Power Supply/Supply Voltage
    18-30 V dc
  • Outputs
    PNP
  • Housing Style
    Roller Conveyor
  • Max Sensing Range (mm)
    120
  • Slot Depth/Array Length (mm)
    762
  • Number of Pins
    4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR762APSE3T-2.0FL-CTR on Powermatic Associates is $184.00. Order now.

About the product

TTR Series 3 Beam Sensor Array 30.0 inch Between Frame, Beam Spacing: 186.2 mm Range: 120 mm Diffuse, Output: LO PNP Input: 18 - 30 V dc, 2.0m (6 ft) Flying Leads Endcap T: T-slot mounting
