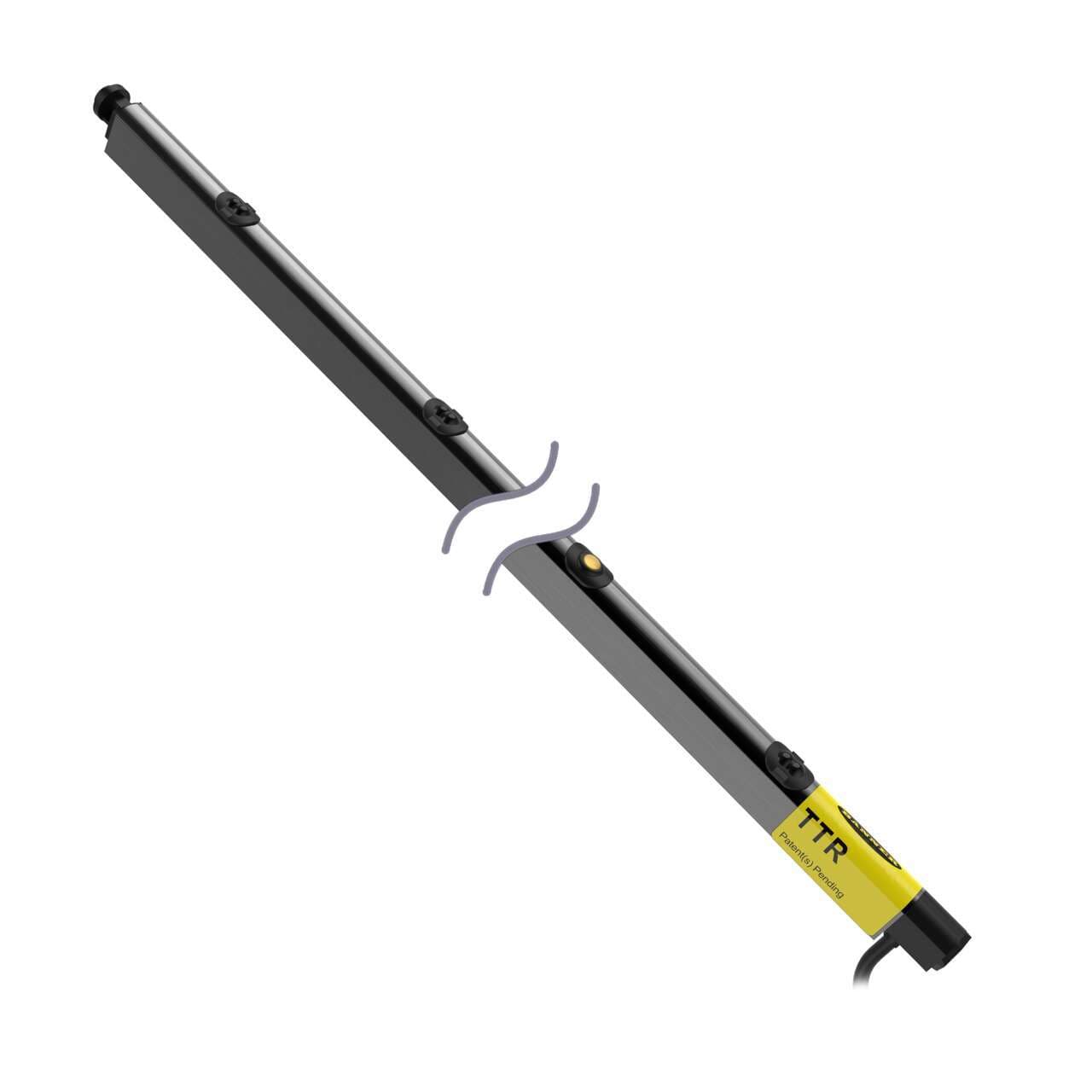

TTR891APSC7D-2.0FL-CTR Banner Safety Light Curtains

TTR891APSC7D-2.0FL-CTR on Powermatic Associates
Banner
  • TTR891APSC7D-2.0FL-CTR
  • TTR891APSC7D-2.0FL-CTR

Part#:TTR891APSC7D-2.0FL-CTR

Alt. Part#:809715

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

TTR Series 7 Beam Sensor Array 35.07 in Between Frame; Beam Spacing: 108 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap D: Flat Up / Round

Product Details

  • Weight
    430.9124 g
  • Country Of Origin
    MX
  • Connection
    Cable
  • Lens Material
    Polycarbonate
  • Number of Beams
    7
  • Primary Housing Material
    Black Anodized Aluminum
  • Slot Overall Depth (mm)
    12
  • Min Op. Temperature (°C)
    -10
  • Beam to Beam Spacing [mm]
    108
  • Number of Pins
    4
  • Distance to First Beam [mm]
    121.5
  • Slot Depth/Array Length (mm)
    891
  • Outputs
    PNP
  • Indicator
    Indicator LEDs
  • Housing Style
    Roller Conveyor
  • Power Supply/Supply Voltage
    18-30 V dc
  • Max Sensing Range (mm)
    120
  • Operation
    Light Operate
  • End Cap Type
    D: Hex Flat Up / Spring 8 mm Round
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Power
    DC
  • Quick Disconnect Type
    No QD
  • Max Op. Temperature (°C)
    55
  • Output response time (ms)
    1
  • IP Rating
    IP50
  • Adjustments
    N/A
  • NEMA Rating
    N/A
  • Sensing Mode (Detailed)
    Diffuse
  • Cable Length (m)
    2
  • Delay at Power-up (ms)
    1500

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR891APSC7D-2.0FL-CTR on Powermatic Associates is $260.00. Order now.

About the product

Banner Engineering TTR891APSC7D-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 7 beams. This part is pre-wired with a 2m cable that ends in bare flying leads, facilitating easy integration into various systems. It has a rectangular shape with an array length of 891mm and operates within a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor is designed to function in ambient air temperatures ranging from -10 to +70°C and offers a degree of protection rated at IP50. The distance between beams, or beam spacing/pitch, is 108mm, and it has a sensing distance of 120mm. This model features one digital output (PNP transistor) and utilizes infrared (IR) light with a wavelength of 940 nm for detection.
