VS1AN5CV20Q5 Banner Proximity Sensors
Part#:VS1AN5CV20Q5
Alt. Part#:74926
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS1 AN5CV20Q5 3-PIN M12 in PIGTAIL
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Connection Pigtail QD
- Number of Pins 3
- Feature: Timing (Hold/Delay) No
- Power DC
- IP Rating IP54
- Indicator LEDs
- Sensing Beam Visible Red LED
- Outputs NPN
- Output response time (ms) 1
- Feature: Hazardous Area No
- IO Link No
- Max Sensing Distance (mm) 20
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 3
- DeviceNet No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- Sensing Beam Wavelength 630
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) N/A
- Adjustments N/A
- Input/Output Discrete
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 80% @ 50°C
- Feature: Audible No
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- Sensing Mode (Detailed) Convergent
- Operation Light Operate
- Repeatability (µs) 250
- Opposed Mode Emitter/Receiver N/A
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS1AN5CV20Q5 on Powermatic Associates is $131.00. Order now.
About the product

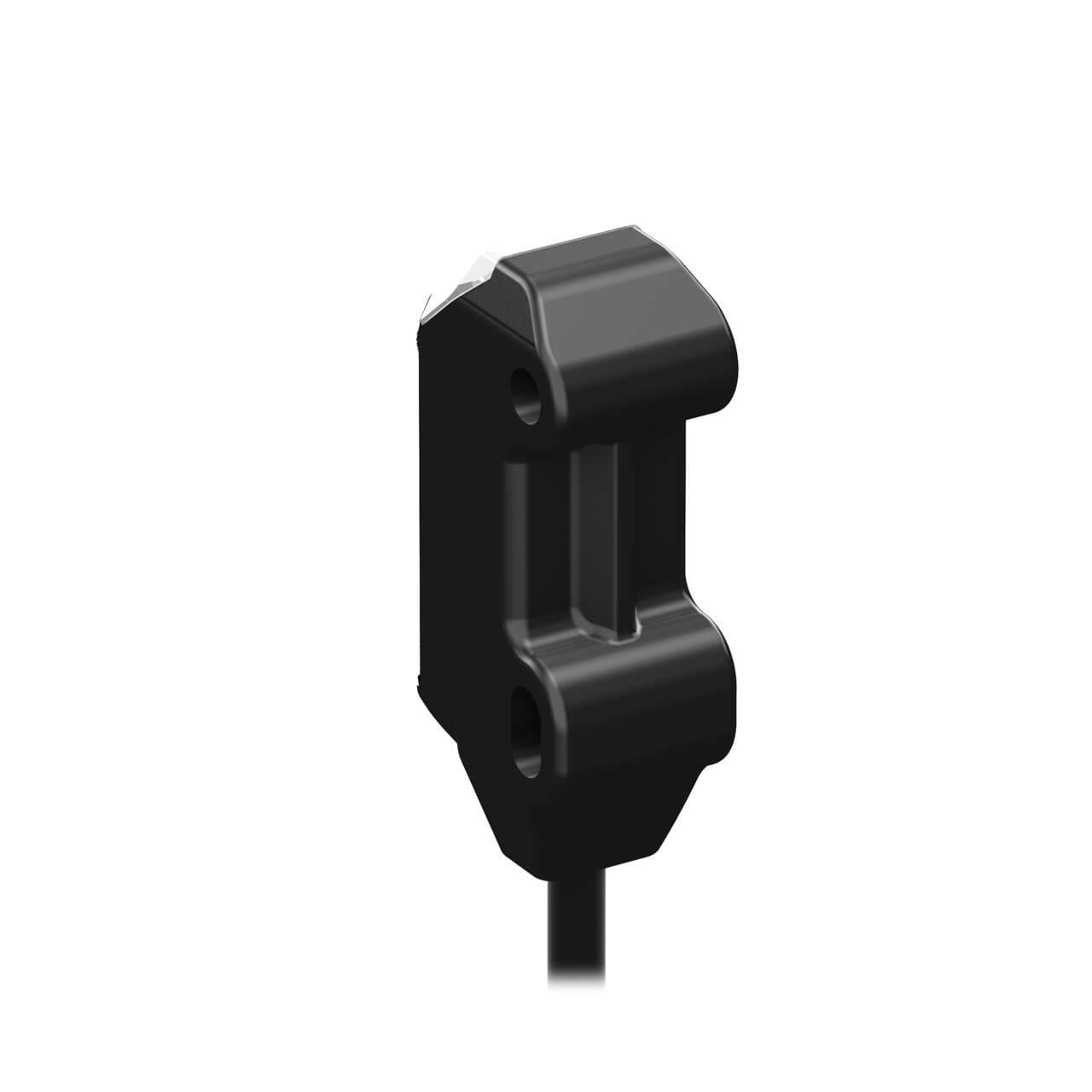

Banner Engineering VS1AN5CV20Q5 is a photo-electric sensor constructed with a thermoplastic housing and an acrylic lens. It features an IP54 and NEMA 3 degree of protection, making it suitable for operation in ambient air temperatures ranging from -20 to +55°C. This sensor operates in a Light-ON NO (Normally Open) mode and includes 1 x digital output (NPN transistor) with a response time of 1ms / 0.001 s. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 630 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). Designed in a convergent mode, it has a sensing distance of 20mm. This part belongs to the VS1 series.
