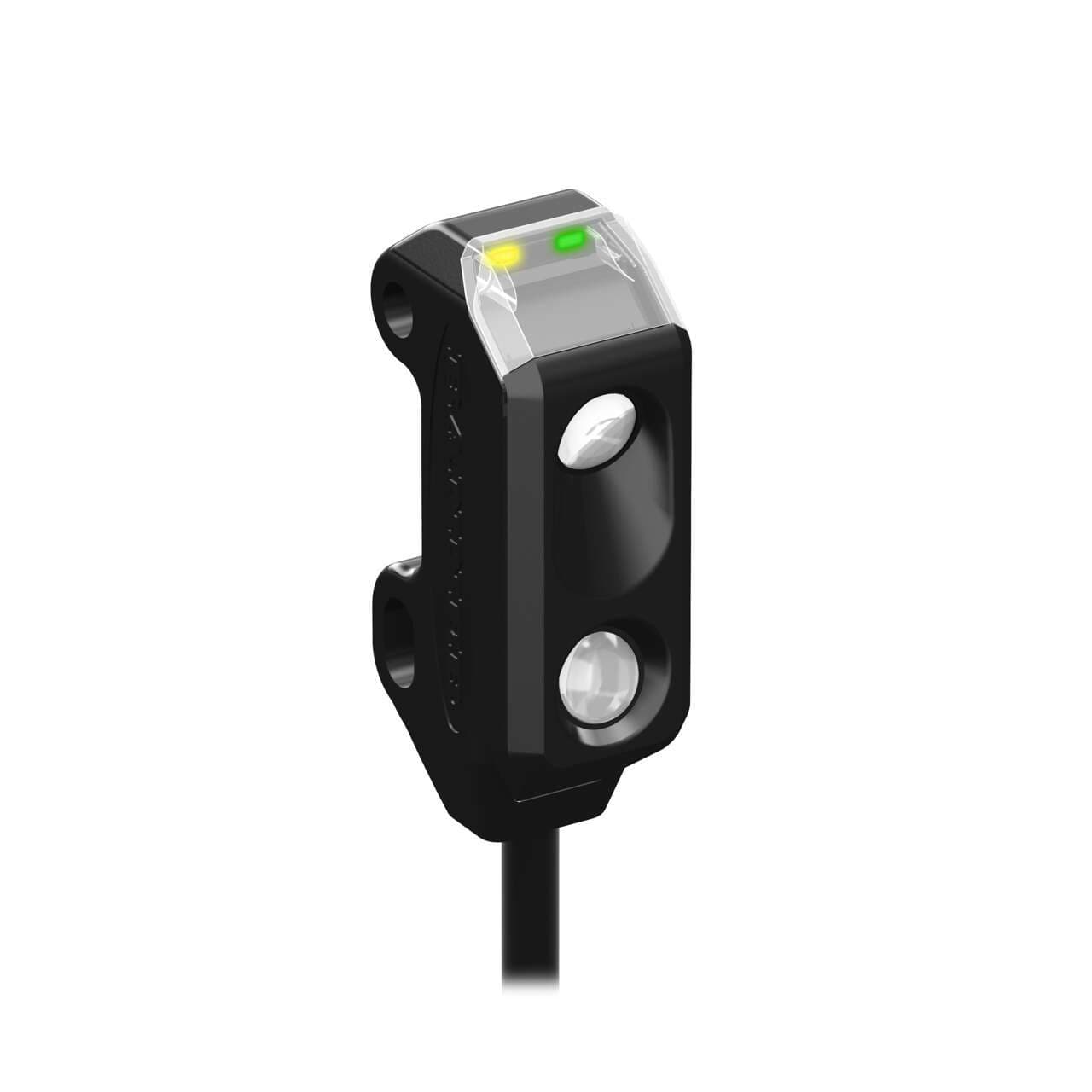

VS1RN5CV10Q Banner Proximity Sensors
Part#:VS1RN5CV10Q
Alt. Part#:63085
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS1 Series: Convergent; Focal Point: 10 mm; Input: 12-24 V dc; Output: Dark Operate - NPN; 3-pin M8 Pigtail QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Sub-range name VS1 series
- Wavelength 630 nm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 10mm
- Material thermoplastic housing Acrylic lns.
- Shape Rectangular
- Main function Sensor (Photo-electric)
- Design convergent mode
- Operating mode Dark-ON NC (Normally Closed)
- Order code / Manufacturer SKU 63085
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) amber LED (light sensed)
- Light Color Visible red
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) CE
- Response time 1ms / 0.001 s
- Ambient air temperature for operation -20...+55 °C
- Degree of protection IP54 NEMA 3
- Housing Style Rectangular
- Power DC
- Operation Dark Operate
- Special Feature: Water Detection No
- Repeatability (µs) 250
- Number of Pins 3
- Feature: Encapsulated No
- Indicator LEDs
- Outputs NPN
- Sensing Mode (General) Proximity
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Sensing Mode (Detailed) Convergent
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 10
- Power Supply/Supply Voltage 10-30 V dc
- Quick Disconnect Type M8 (Pico)
- Output response time (ms) 1
- Max Op. Temp. (°C) 55
- Min Op. Temp. (°C) -20
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Connection Pigtail QD
- Delay at Power-up (ms) N/A
- Sensing Beam Wavelength 630
- IP Rating IP54
- Max Op. Relative Humidity [%] 80% @ 50°C
- NEMA Rating NEMA 3
- Barrel Diameter (mm) N/A
- Adjustments N/A
- DeviceNet No
- Feature: Chemical Resistant No
- Opposed Mode Emitter/Receiver N/A
- Feature: Audible No
- IO Link No
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Lens Material Acrylic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS1RN5CV10Q on Powermatic Associates is $131.00. Order now.
About the product
Banner Engineering VS1RN5CV10Q is a photo-electric sensor designed with a thermoplastic housing and an acrylic lens. It offers a degree of protection rated at IP54 NEMA 3, making it suitable for operation in ambient air temperatures ranging from -20 to +55 °C. This sensor operates in a Dark-ON NC (Normally Closed) mode and features a single digital output utilizing an NPN transistor. With a rapid response time of 1ms / 0.001 s, it ensures timely operation. The sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 3-pin Pico-style M8 connector for easy installation. Its rectangular shape and visible red light, with a wavelength of 630 nm, are designed for convergent mode operation. The VS1RN5CV10Q has a sensing distance of 10mm and requires a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc / 24Vdc nominal. It belongs to the VS1 series of photo-electric sensors.
