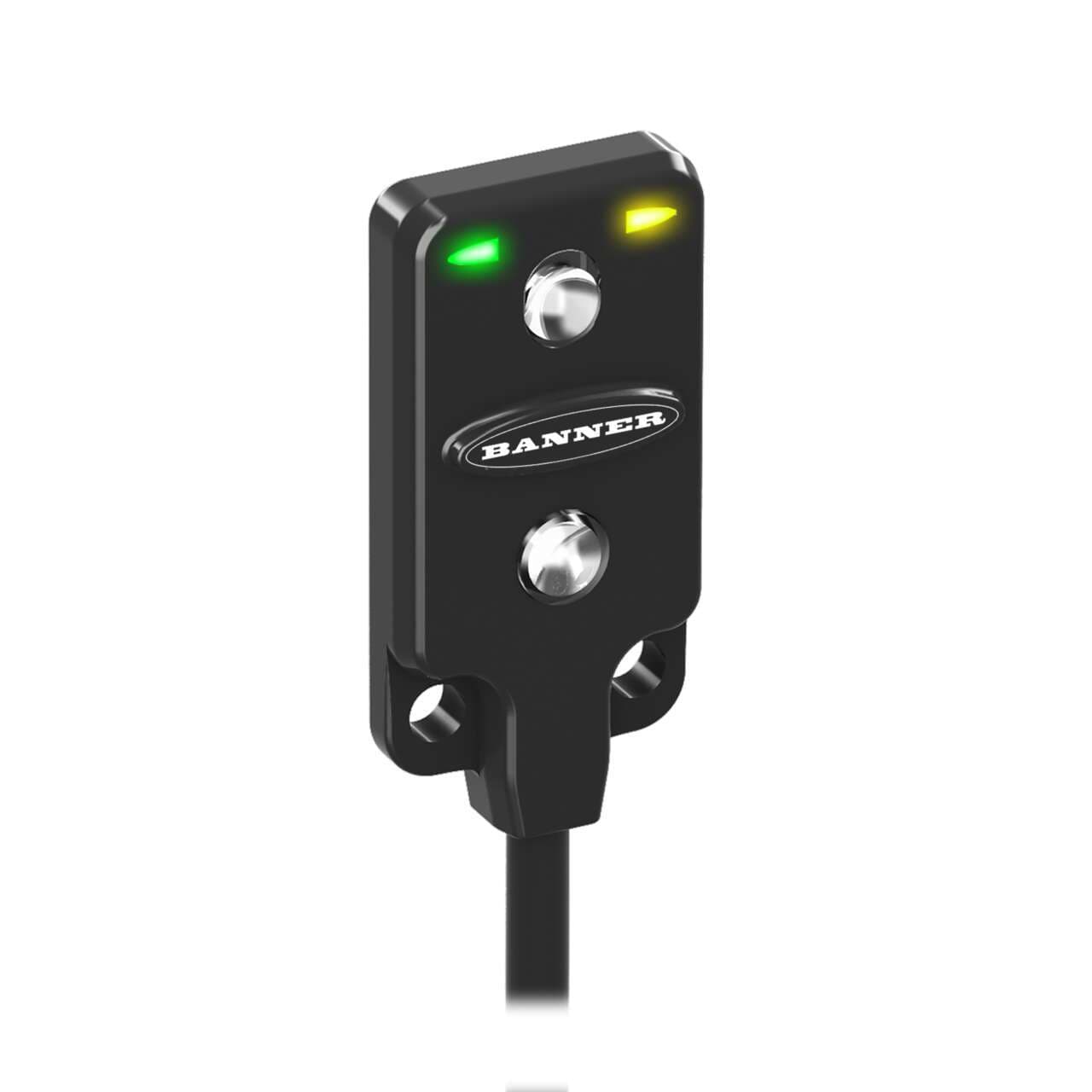

VS2AN5CV15Q Banner Proximity Sensors
Part#:VS2AN5CV15Q
Alt. Part#:63074
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS2 Series: Convergent; Focal Point: 15 mm; Input: 10-30 V dc; Output: NPN Light Operate; 3-pin M8 Pigtail QD
Product Details
- Weight 36.28736 g
- Country Of Origin MX
- Wavelength 660 nm
- Sub-range name VS2 series
- Main function Sensor (Photo-electric)
- Order code / Manufacturer SKU 63074
- Primary brand Banner Engineering
- Light Color Visible red
- Operating mode Light-ON
- Material thermoplastic housing MABS lns.
- Response time 1ms / 0.001 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 15mm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+55 °C
- Functions Photo-electric sensor green LED (power ON) amber LED (light sensed)
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) CE
- Design convergent mode
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Sensing Beam Visible Red LED
- Operation Light Operate
- Sensing Beam Wavelength 660
- Adjustments N/A
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 80% @ 50°C
- DeviceNet No
- Max Sensing Distance (mm) 15
- Max Op. Temp. (°C) 55
- NEMA Rating NEMA 6
- Feature: Audible No
- Outputs NPN
- Special Feature: Water Detection No
- Lens Material MABS
- IO Link No
- Input/Output Discrete
- Output response time (ms) 1 ON/0.5 OFF
- Barrel Diameter (mm) N/A
- Sensing Mode (General) Proximity
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 100
- Number of Pins 3
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Connection Pigtail QD
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Mode (Detailed) Convergent
- Min Op. Temp. (°C) -20
- Repeatability (µs) 100
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS2AN5CV15Q on Powermatic Associates is $131.00. Order now.
About the product
Banner Engineering VS2AN5CV15Q is a photo-electric sensor constructed with a thermoplastic housing MABS lns. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for operation in environments with ambient air temperatures ranging from -20 to +55 °C. This sensor operates in Light-ON mode and features a single digital output (NPN transistor) with a rapid response time of 1ms / 0.001 s. It comes pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector for easy installation. The rectangular-shaped sensor operates at a wavelength of 660 nm, emitting visible red light. It is designed for a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and operates in convergent mode with a sensing distance of 15mm. This part belongs to the VS2 series.
