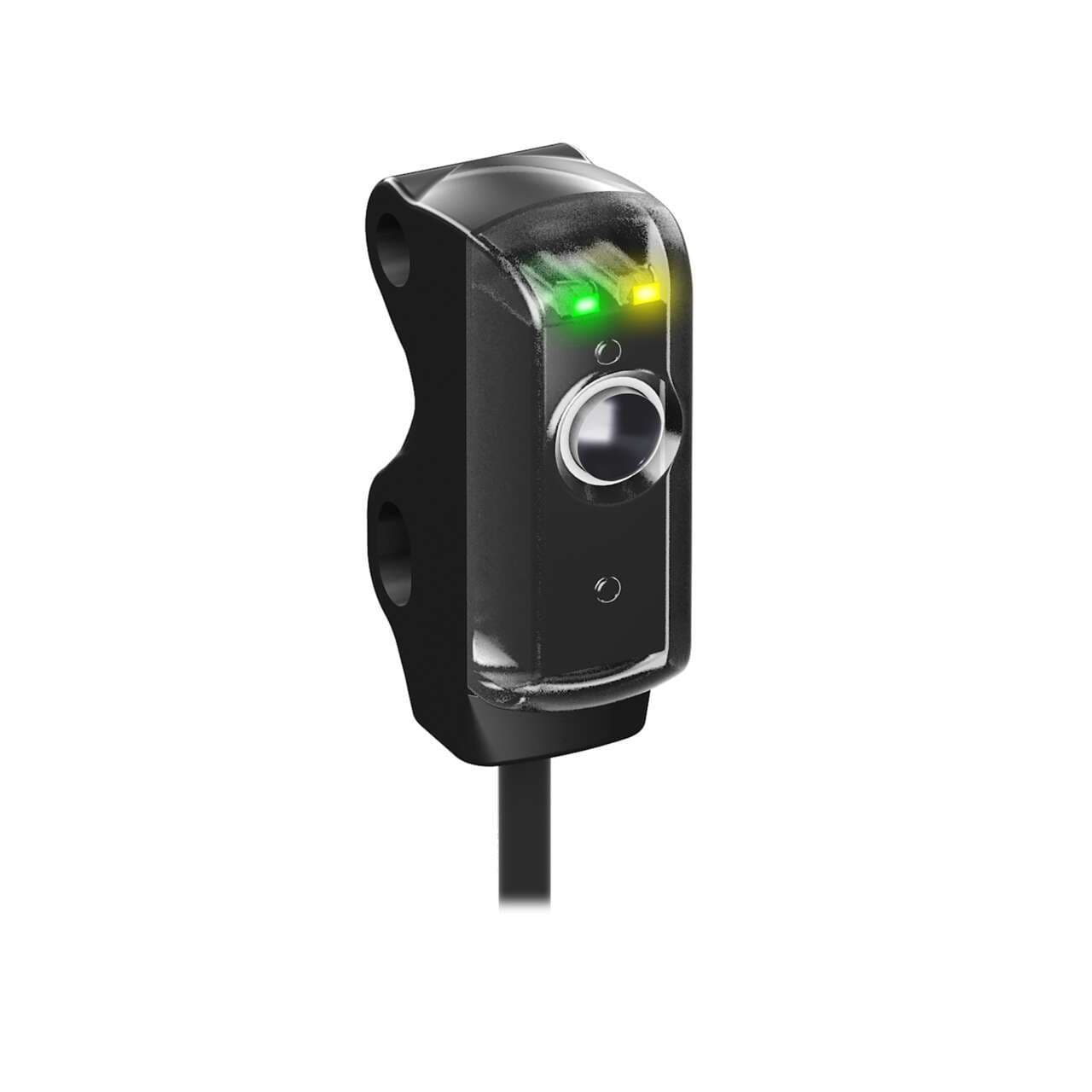

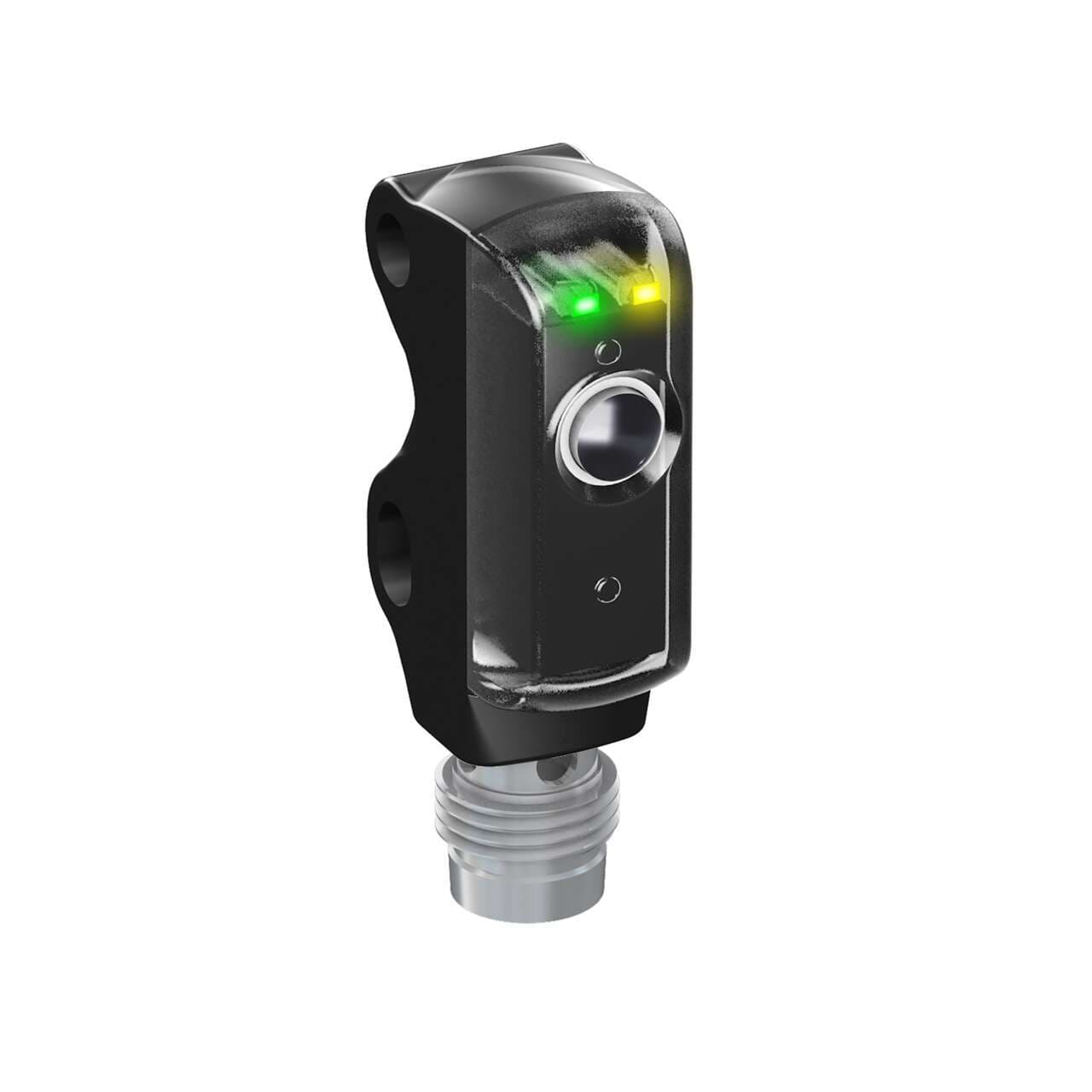

VS3RN5XLPQ Banner Proximity Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  MX
• DeviceNet
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• IO Link
  No
• Feature: Encapsulated
  No
• Feature: Hazardous Area
  No
• Feature: Timing (Hold/Delay)
  No
• Opposed Mode Emitter/Receiver
  N/A
• Indicator
  LEDs
• Adjustments
  N/A
• Barrel Diameter (mm)
  N/A
• Max Op. Relative Humidity [%]
  80% @ 50°C
• Lens Material
  Glass
• NEMA Rating
  NEMA 6
• IP Rating
  IP67
• Number of Pins
  3
• Repeatability (µs)
  160
• Delay at Power-up (ms)
  150
Special Feature: Water Detection
No
Min Op. Temp. (°C)
-20
Special Feature: Remote Teach
No
Output response time (ms)
1
Operation
Dark Operate
Special Feature: Intrinsically Safe
No
Max Op. Temp. (°C)
55
Quick Disconnect Type
M8 (Pico)
Connection
Pigtail QD
Power Supply/Supply Voltage
10-30 V dc
Sensing Mode (Detailed)
Polarized (Coaxial)
Outputs
NPN
Input/Output
Discrete
Max Sensing Distance (mm)
250
Primary Housing Material
Thermoplastic
Housing Style
Rectangular
Sensing Mode (General)
Retroreflective
Sensing Beam
Visible Red LED
Power
DC
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Sensing distance
250mm
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
Material
thermoplastic housing Glass lns. Acrylic lid cover
Order code / Manufacturer SKU
62622
Degree of protection
IP67 NEMA 6
Compliant with standard(s)
CE
Main function
Sensor (Photo-electric)
Functions
Polarized (coaxial) photo-electric sensor green LED (power ON) yellow LED (light sensed)
Wavelength
680 nm
Digital outputs
1 x digital output (NPN transistor)
Ambient air temperature for operation
-20...+55 °C
Primary brand
Banner Engineering
Design
retro-reflective mode
Shape
Rectangular
Response time
1ms / 0.001 s
Sub-range name
VS3 series
Light Color
Visible red
Operating mode
Dark-ON NC (Normally Closed)
