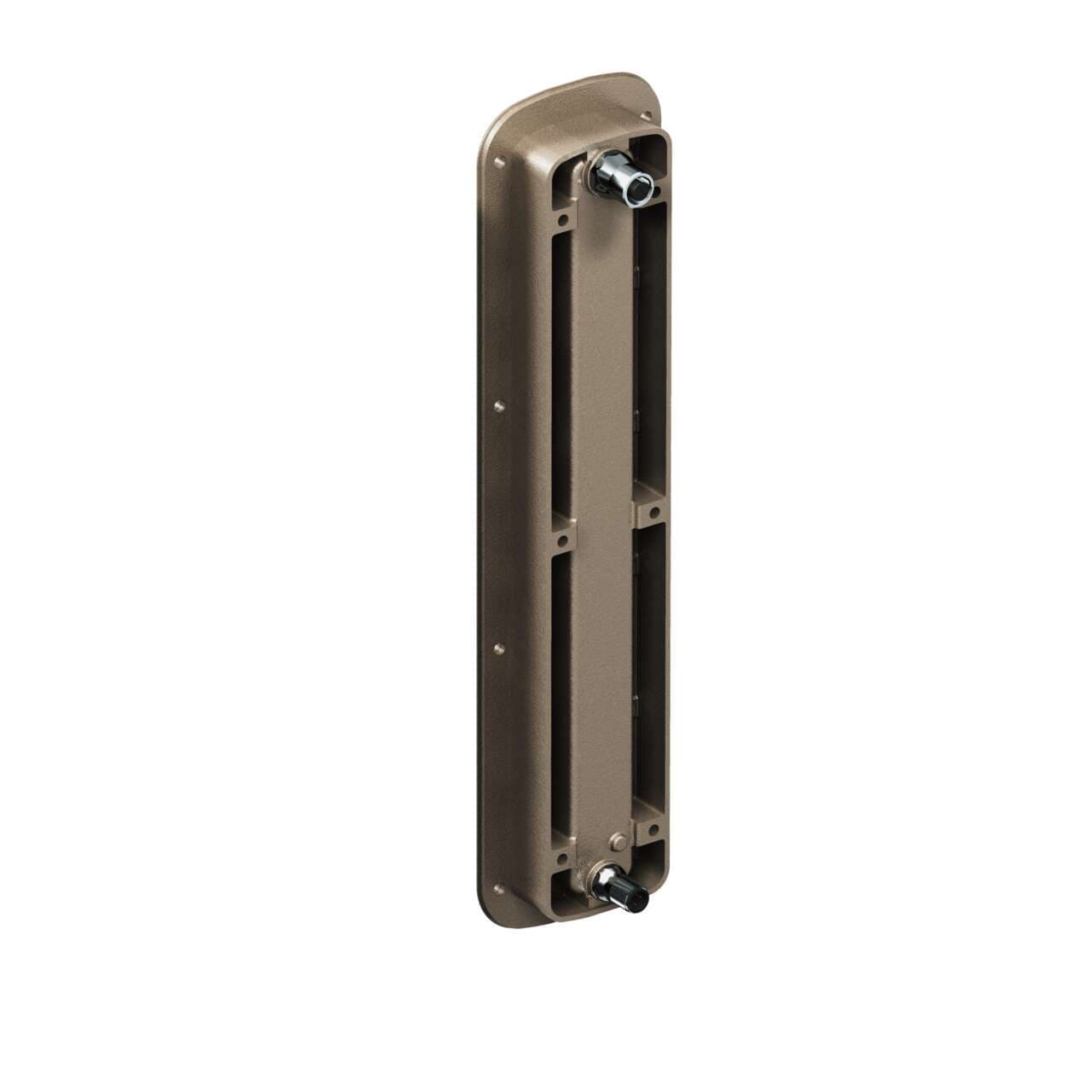

WLC60CW340GFARQ Banner Light Bars

WLC60CW340GFARQ on Powermatic Associates
Banner
  • WLC60CW340GFARQ
  • WLC60CW340GFARQ

Part#:WLC60CW340GFARQ

Alt. Part#:86880

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLC60 Work Light; Length: 340 mm; Flush Mount; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Cascadable; Window: Glass; 4-pin M12 Integral QD; Rear exit

Product Details

  • Weight
    1179.3392 g
  • Country Of Origin
    MX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • Illuminated Length (LxWxH mm)
    254.6
  • Housing Style
    Linear Strip
  • Lumens Color 1
    1300
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Mounting Thread
    No Thread
  • Color Option 1
    White
  • Physical Dimensions (LxWxH or DxH mm)
    367.0 x 88.0 x 52.3
  • Feature: Quick Disconnect
    Yes
  • Supply Voltage
    12-30 V dc
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Product Size (mm)
    60
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Temperature (°C)
    70
  • Feature: Cascade
    Yes
  • Power
    DC
  • Dimming Option
    High-Low-Off
  • Feature: Washdown Rated
    Yes
  • Power Source
    DC
  • Number of Input Pins/Conductors
    4
  • Feature: Audible
    No
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Storage Temp (°C)
    -40 to 70
  • Wireless
    No
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Color Technology
    Standard LED
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • IO Link
    No
  • Illumination
    Yes
  • Connection
    Integral QD
  • Primary Window Material
    Glass Clear
  • Feature: Chemical Resistant
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC60CW340GFARQ on Powermatic Associates is $546.00. Order now.

About the product

Banner Engineering WLC60CW340GFARQ is a cascadable industrial heavy-duty LED area light designed for task lighting applications. It features 1-color Cool White (W) LED illumination through a clear glass window and is housed in a nickel-plated aluminum casing. This linear strip lighting operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and offers a luminous flux of 1300 lm. It measures L340mm x W24.5mm and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The WLC60CW340GFARQ is designed for flush mounting and boasts a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

WLC60CW340GFARQ Related Documents
