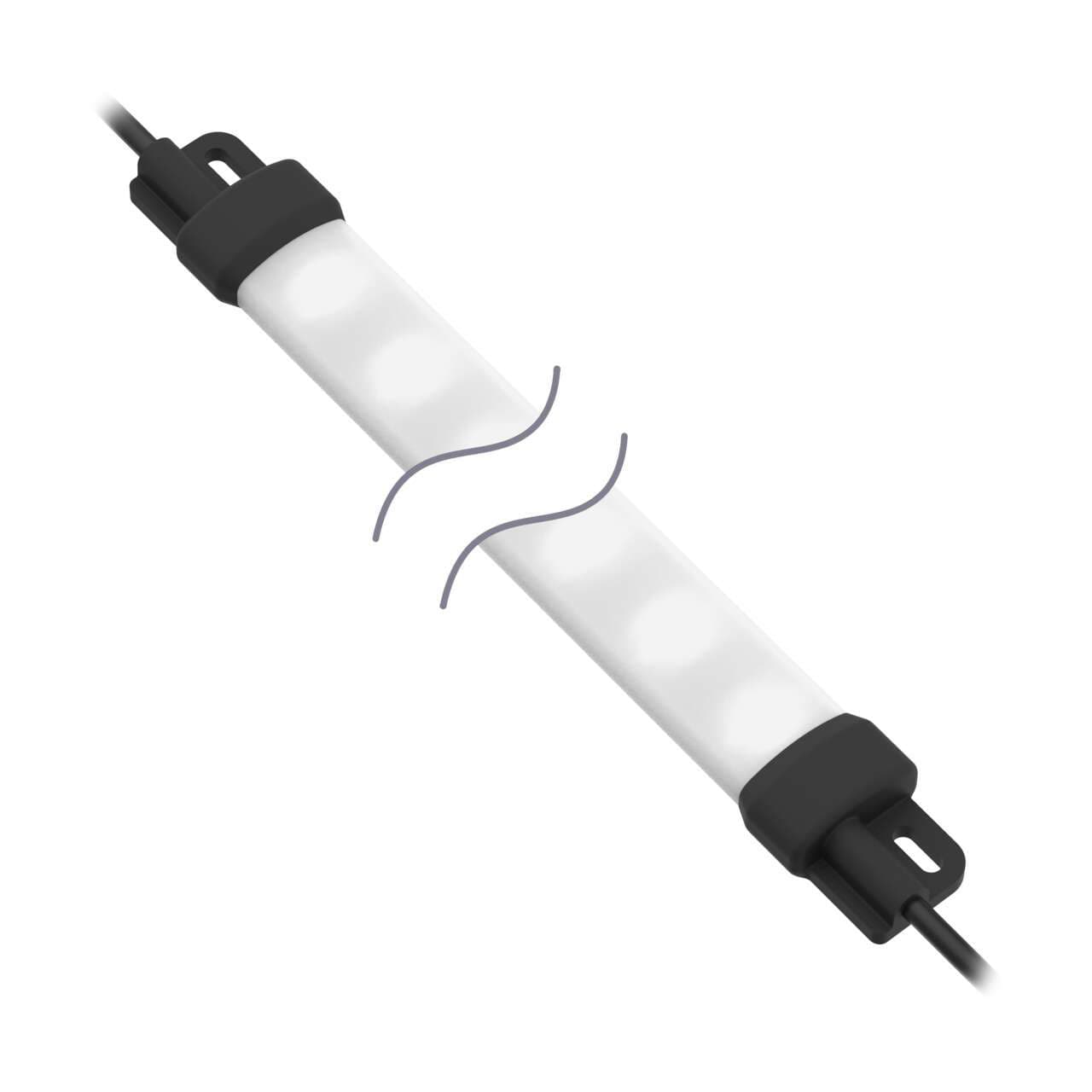

WLS15CWW0920DSQP Banner Pick-to-Light Sensors
Part#:WLS15CWW0920DSQP
Alt. Part#:802059
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
WLS15 Work Light Strip; Diffused Window; Length: 920 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Warm White; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 294.8348 g
- Country Of Origin MX
- Power DC
- Color Option 1 White
- Max Op. Temperature (°C) 60
- Wireless No
- Primary Housing Material Polycarbonate
- Lumens Color 1 1020
- Environmental Rating IP66; IP67
- Feature: Hazardous Area No
- Housing Style Linear Strip
- Illuminated Length (LxWxH mm) 846.4
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Feature: Quick Disconnect Yes
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Color Technology Standard LED
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Power Source DC
- Connection Pigtail QD
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Max Current Color (mA) 1440
- Supply Voltage 12/24 V dc
- Feature: Cascade Yes
- Number of Colors / Segments 1
- Dimming Option PWM
- Min Op. Temperature (°C) -40
- IO Link No
- Cable Length (m) 0.15
- Product Size (mm) 15
- Number of Input Pins/Conductors 4
- Secondary Material Polyamide
- Pro-Editor Compatible (Discrete) No
- Physical Dimensions (LxWxH or DxH mm) 920.0 x 30.6 x 15.5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS15CWW0920DSQP on Powermatic Associates is $199.00. Order now.
About the product
Banner Engineering WLS15CWW0920DSQP is a task light designed as a cascadable sealed industrial low power LED light strip/bar with a diffused window for 1-color warm white (WW) LED illumination. It operates on a supply voltage of either 12Vdc or 24Vdc and measures 920mm in length and 15mm in width. The construction features a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It is pre-wired with a 6-inch (15cm) pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy installation. The linear light strip is designed to withstand harsh environments with a degree of protection rated at IP66 and IP67, making it suitable for a wide range of industrial applications. It can operate in ambient air temperatures ranging from -40°C to +60°C. The light strip includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 1.44A of current, and provides a luminous flux of 1020 lumens.
