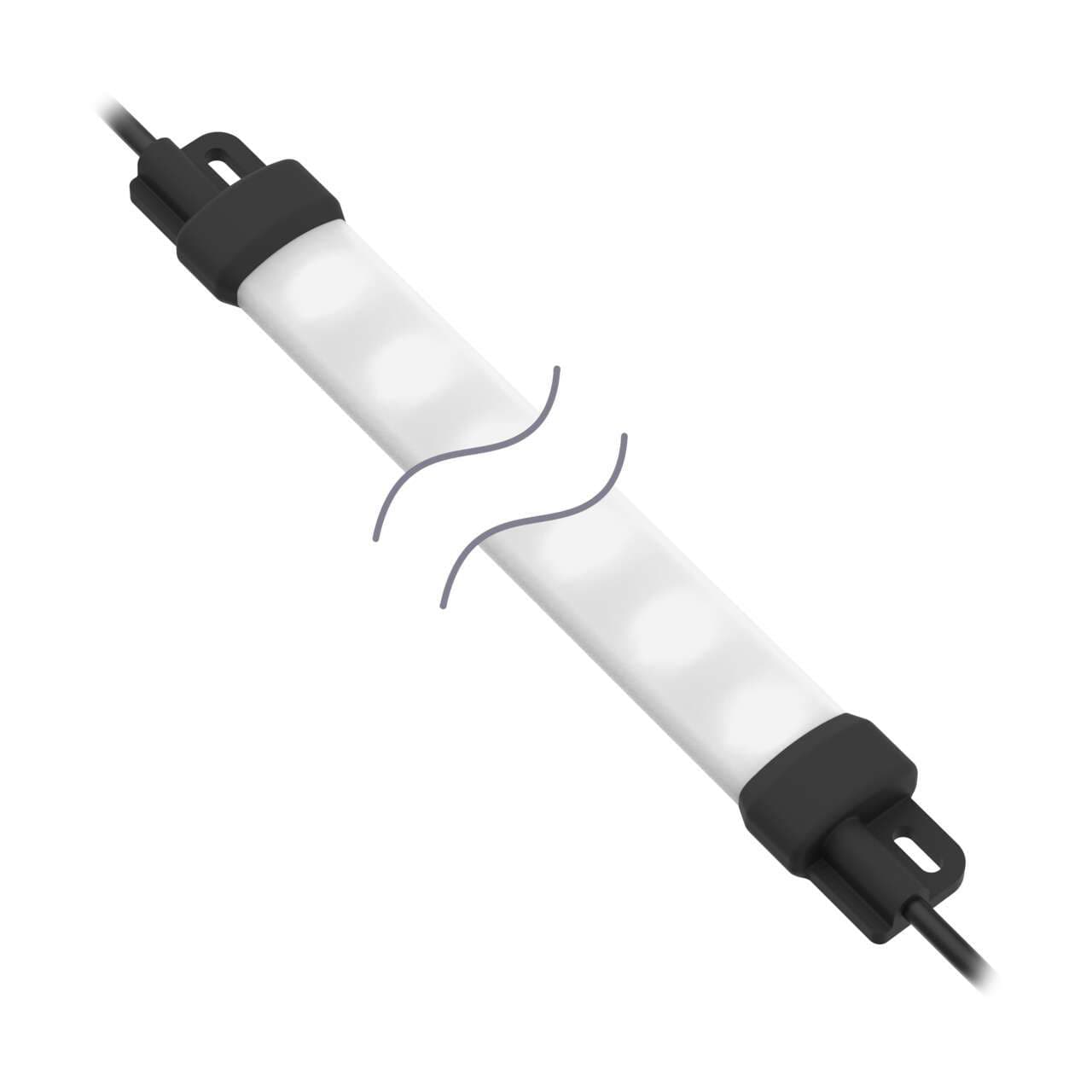

WLS15CWY0220DSQP Banner Pick-to-Light Sensors
Part#:WLS15CWY0220DSQP
Alt. Part#:806928
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
WLS15 Dual Color Light Strip; Length: 220 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Colors: White Yellow; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Power DC
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Physical Dimensions (LxWxH or DxH mm) 220.0 x 30.6 x 15.5
- Primary Window Material Polycarbonate Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 175
- Illuminated Length (LxWxH mm) 146.4
- Storage Temp (°C) -40 to 70
- Power Source DC
- Color Option 1 White
- Color 2 - Wavelength/Color Temp/Coordinates 580 nm
- Feature: Cascade Yes
- Feature: Quick Disconnect Yes
- Multi-Color Device Single Color On
- Mounting Thread No Thread
- Lumens Color 2 165
- Feature: Hazardous Area No
- Product Size (mm) 15
- Number of Input Pins/Conductors 4
- Feature: Chemical Resistant No
- IO Link No
- Housing Style Linear Strip
- Cable Length (m) 0.15
- Number of Colors / Segments 2
- Max Current Color (mA) 240
- Feature: Audible No
- Wireless No
- Illumination Yes
- Connection Pigtail QD
- Supply Voltage 12/24 V dc
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Color Option 2 Yellow
- Max Op. Temperature (°C) 60
- Secondary Material Polyamide
- Color Technology Standard LED
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP66; IP67
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS15CWY0220DSQP on Powermatic Associates is $92.00. Order now.
About the product
Banner Engineering WLS15CWY0220DSQP is a task light designed as a cascadable sealed industrial low power LED light strip/bar. It features a diffused window with a 2-color white/yellow (W/Y) color pattern LED illumination. This product operates on a supply voltage of either 12Vdc or 24Vdc and has dimensions of L220mm x W15mm. The material used for both the diffused window and the base is Polycarbonate (PC), ensuring durability. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. The linear light strip shape is designed for easy installation in a variety of settings. It offers a degree of protection rated at IP66 and IP67, making it suitable for use in environments with temperatures ranging from -40°C to +60°C. The WLS15CWY0220DSQP is equipped with 2 digital inputs (12Vdc / 24Vdc) for color control and has a current consumption of 240mA. It provides a luminous flux of 175 lumens.
