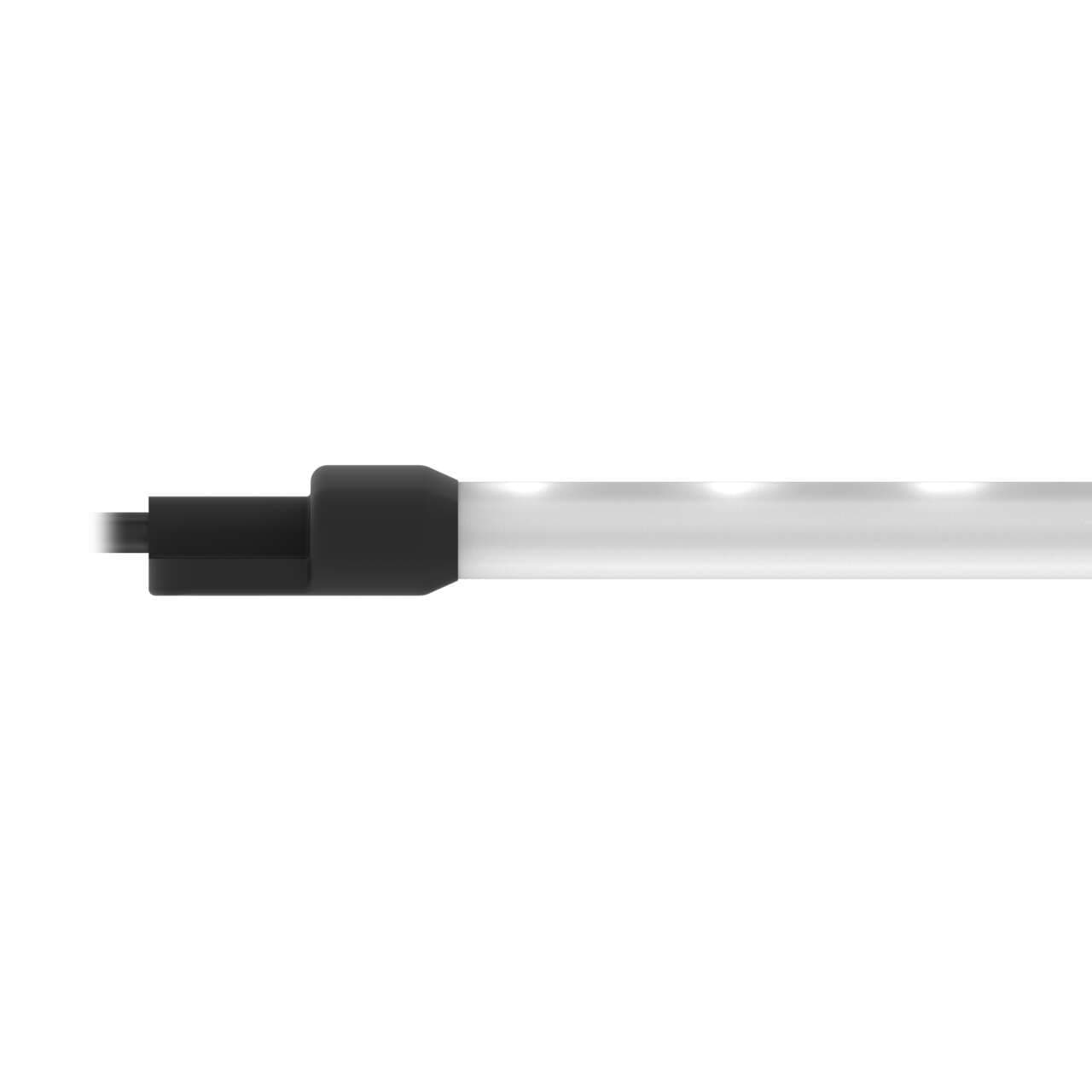

WLS15CYL0920DSQP Banner Pick-to-Light Sensors
Part#:WLS15CYL0920DSQP
Alt. Part#:806174
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
WLS15 Work Light Strip; Diffused Window; Length: 920 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Yellow; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 294.8348 g
- Country Of Origin MX
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 846.4
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 580 nm
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Dimming Option PWM
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Number of Colors / Segments 1
- Color Option 1 Yellow
- Environmental Rating IP66; IP67
- Secondary Material Polyamide
- Illumination Yes
- Connection Pigtail QD
- Max Op. Temperature (°C) 60
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power DC
- Number of Input Pins/Conductors 4
- Feature: Cascade Yes
- Power Source DC
- Max Current Color (mA) 1440
- Physical Dimensions (LxWxH or DxH mm) 920.0 x 30.6 x 15.5
- IO Link No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Storage Temp (°C) -40 to 70
- Wireless No
- Product Size (mm) 15
- Lumens Color 1 990
- Supply Voltage 12/24 V dc
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS15CYL0920DSQP on Powermatic Associates is $199.00. Order now.
About the product
WLS15 Work Light Strip; Diffused Window; Length: 920 mm, Voltage: 12 or 24 V dc; Environmental Rating: IP66,67, Color: Yellow; Cascadable, Euro 4-pin 150 mm (6 in) PVC Pigtail
