WLS15XDW1200DSC4 Banner Pick-to-Light Sensors
Part#:WLS15XDW1200DSC4
Alt. Part#:809973
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description

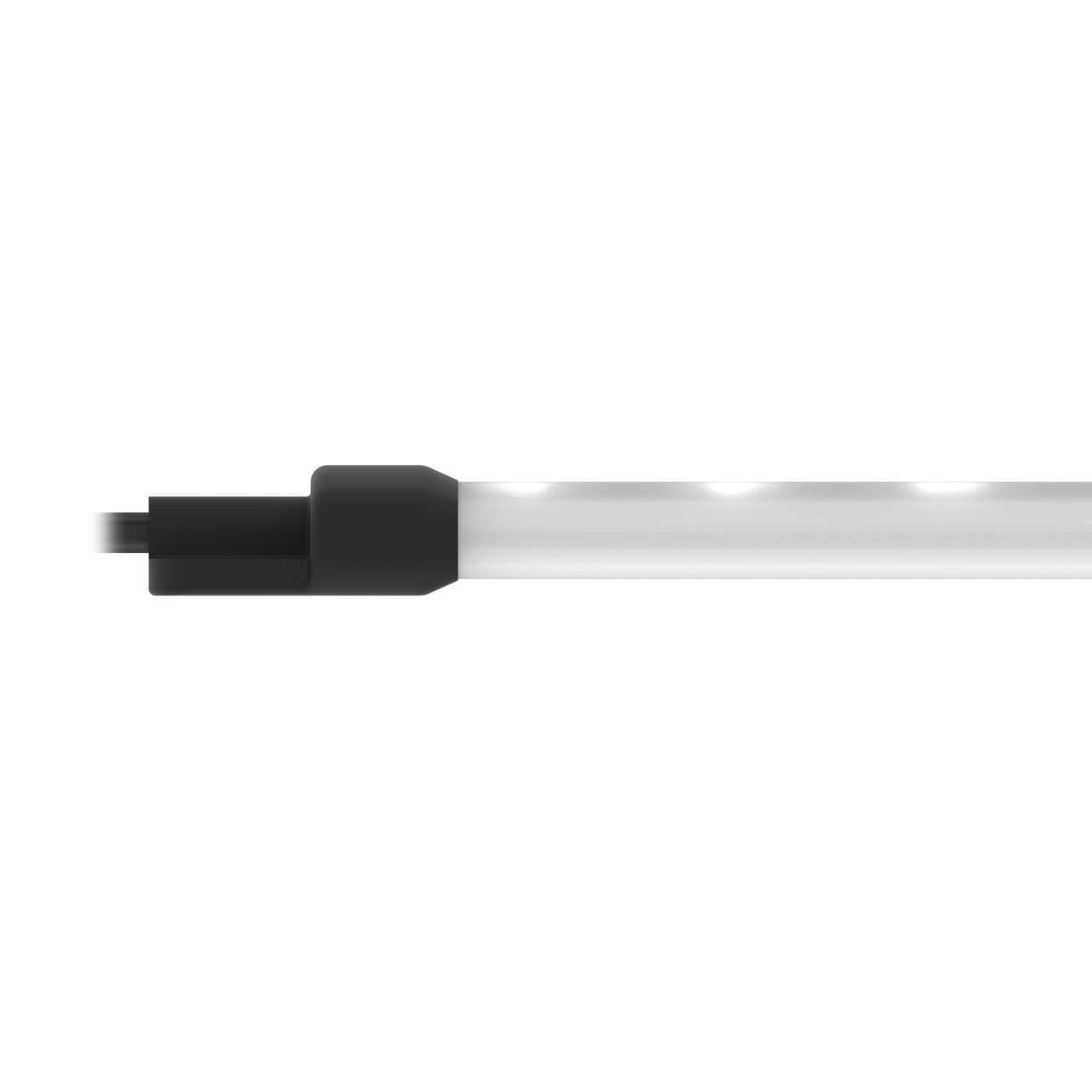

WLS15 Work Light Strip; Diffused Window; Length: 1200 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; 4 m (13 ft) Integral Cable
Product Details
- Weight 453.592 g
- Country Of Origin MX
- Power Source DC
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 1200.0 x 30.6 x 15.5
- IO Link No
- Housing Style Linear Strip
- Dimming Option PWM
- Secondary Material Polyamide
- Primary Housing Material Polycarbonate
- Lumens Color 1 1400
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Power DC
- Connection Cable
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect No
- Illumination Yes
- Max Current Color (mA) 1920
- Storage Temp (°C) -40 to 70
- Number of Colors / Segments 1
- Supply Voltage 12/24 V dc
- Feature: Hazardous Area No
- Cable Length (m) 4
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 1126.4
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type No QD
- Max Op. Temperature (°C) 60
- Modbus RTU No
- Product Size (mm) 15
- Number of Input Pins/Conductors 2
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Environmental Rating IP66; IP67
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS15XDW1200DSC4 on Powermatic Associates is $245.00. Order now.
About the product
WLS15 Work Light Strip; Diffused Window; Length: 1200 mm, Voltage: 12 or 24 V dc; Environmental Rating: IP66,67, Color: Daylight White, 4 m (13 ft) Cable
