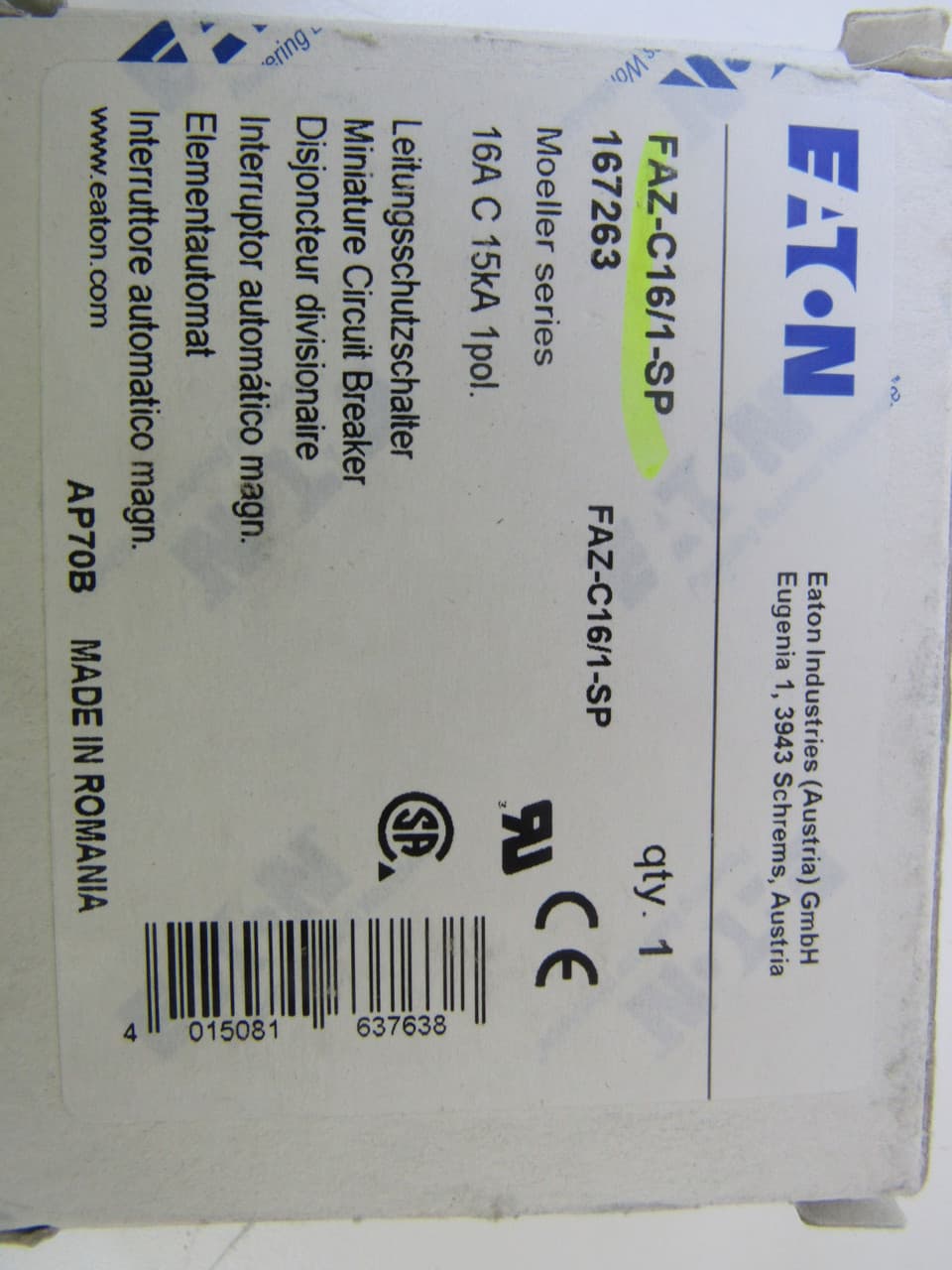

FAZ-C16/1-SP Eaton Miniature Circuit Breakers (MCBs)

Product Details

• Product Length/Depth
  .69 in
• Product Height
  3.5 in
• Circuit protection
  C curve
• Product Name
  Eaton FAZ supplementary protector
• Special features
  Single package
• Number of poles
  Single-pole
• EAN
  4015081637638
• Type
  UL 1077 Industrial miniature circuit breaker - supplementary protector
• UPC
  786689005436
• Quantity
  38
• Product Width
  3 in
• Terminals
  Standard
• Product Weight
  .2 lb
• Certifications
  UL 1077 CSA Std. C22.2 No.235 IEC 60947-2
• Voltage rating
  277V
• Catalog Number
  FAZ-C16/1-SP
• Interrupt rating
  15 kAIC
• Trip Type
  5-10X /n
• Warranty
  1 year
• Frequency rating
  50-60 Hz
Catalog Notes
Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices. Single packaging of single-pole curves B, C and D for select amperages only.
Application
Suitable for applications where medium levels of inrush current are expected
Amperage Rating
16 A
Shipping Weight:
0.25
Gauge:
0
Shipping Width:
3.00 In.
Terminal Type:
Screw
Approval:
UL 1077
Series:
FAZ
UPC:
015081637632
Type:
Miniature
Interrupting Rating:
10 Kiloamp at 277 Volt AC
Trip Setting:
5 to 10 x Rated Current
Shipping Height:
1.00 In.
Poles:
1
Shipping Length:
4.00 In.
Volts:
277 VAC/48 VDC (UL/CSA)
Amps:
16 A
Size:
0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
Mounting:
DIN Rail Mount
