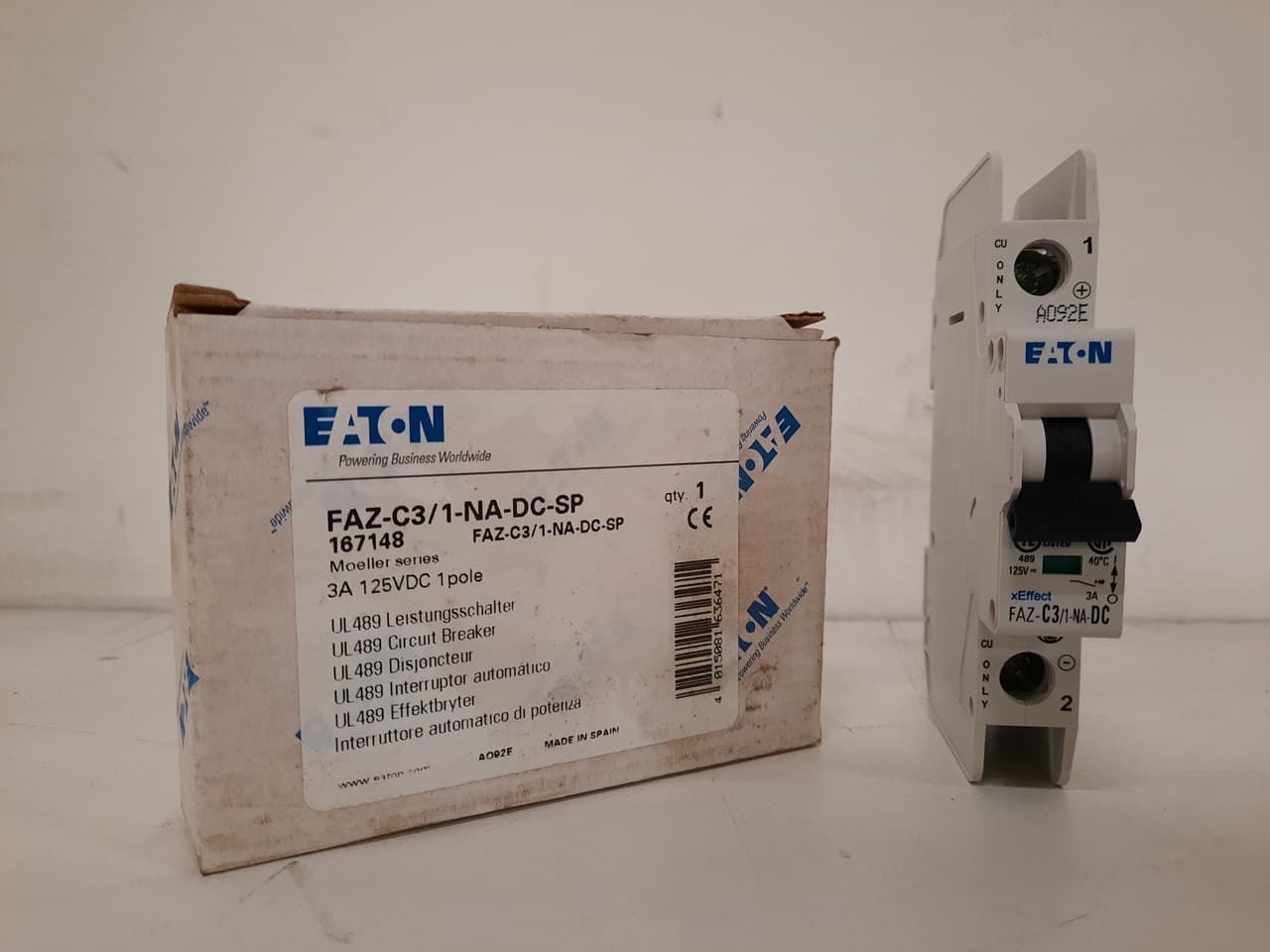

FAZ-C3/1-NA-DC-SP Eaton Miniature Circuit Breakers (MCBs)

FAZ-C3/1-NA-DC-SP on Powermatic Associates
Eaton

Part#:FAZ-C3/1-NA-DC-SP

Manufacturer:Eaton

Category:Miniature Circuit Breakers (MCBs)

Product Lifecycle:Active

Product description

FAZ-C3/1-NA-DC-SP Eaton - UL 489 Industrial Miniature Circuit Breakers - Supplementary Protector

Product Details

  • Trip Type
    5-10X /n
  • Terminal Type
    Standard Terminals
  • Length
    .7 inches
  • Width
    2.97 inches
  • Amperage
    3 amperes
  • Height
    4.13 inches
  • Number of Poles
    1
  • Series:
    FAZ
  • Terminal Type:
    Screw
  • Type:
    Current Limiting
  • Wire Size:
    18 to 4/18 to 8 AWG
  • Mounting:
    DIN Rail
  • Approval:
    UL 489
  • Shipping Length:
    5.00 In.
  • Poles:
    1
  • Shipping Width:
    3.00 In.
  • Shipping Weight:
    1.00
  • Interrupting Rating:
    10 kA
  • Shipping Height:
    1.00 In.
  • Amps:
    32 A
  • UPC:
    015081636475
  • Size:
    0.7 Inch Width x 2.36 Inch Depth x 4.13 Inch Height
  • Volts:
    277/480 VAC
  • Trip Setting:
    5 to 10 x Rated Current

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
