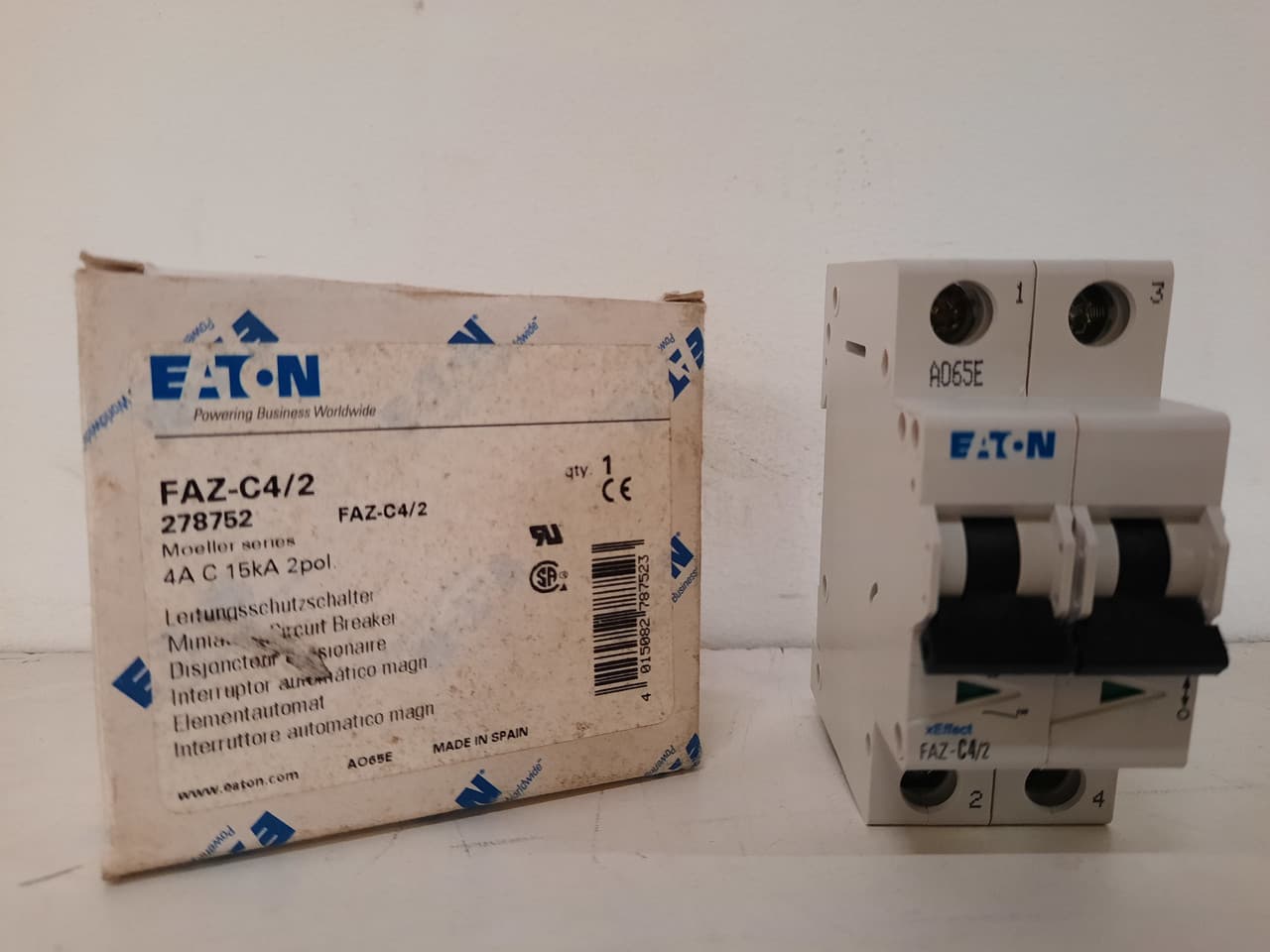

FAZ-C4/2 Eaton Miniature Circuit Breakers (MCBs)

Product Details

• Number of Poles
  2 Pole
• Current Rating
  4 A
• Trip Curve
  C
• SCCR
  10 kA
• UL Standard
  1077
• UL CCN
  QVNU2
• UL File No.
  E177451
• Terminal Type
  Compression
• Type
  UL 1077 Industrial miniature circuit breaker - supplementary protector
• Warranty
  1 year
• Product Weight
  .53 lb
• Trip Type
  5-10X /n
• Product Width
  1.5 in
• Terminals
  Standard
• Product Length/Depth
  1.38 in
• Interrupt rating
  15 kAIC
• EAN
  4015082787523
• Circuit protection
  C curve
• Product Height
  1.38 in
• Application
  Suitable for applications where medium levels of inrush current are expected
Product Name
Eaton FAZ supplementary protector
Certifications
CSA Std. C22.2 No.235 IEC 60947-2 UL 1077
Amperage Rating
4 A
Catalog Notes
Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
Number of poles
Two-pole
Catalog Number
FAZ-C4/2
Frequency rating
50-60 Hz
Terminal Type:
Line/Load
Shipping Length:
4.00 In.
Interrupting Rating:
10 kA
Approval:
UL 1077
Series:
FAZ
Amps:
32 A
Shipping Weight:
0.55
Shipping Height:
2.00 In.
Size:
1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
Trip Setting:
5 to 10 x Rated Current
Shipping Width:
3.00 In.
Volts:
277/480 VAC
Type:
Current Limiting
UPC:
015082787527
Mounting:
DIN Rail
Poles:
2
Wire Size:
18 to 4/18 to 8 AWG
