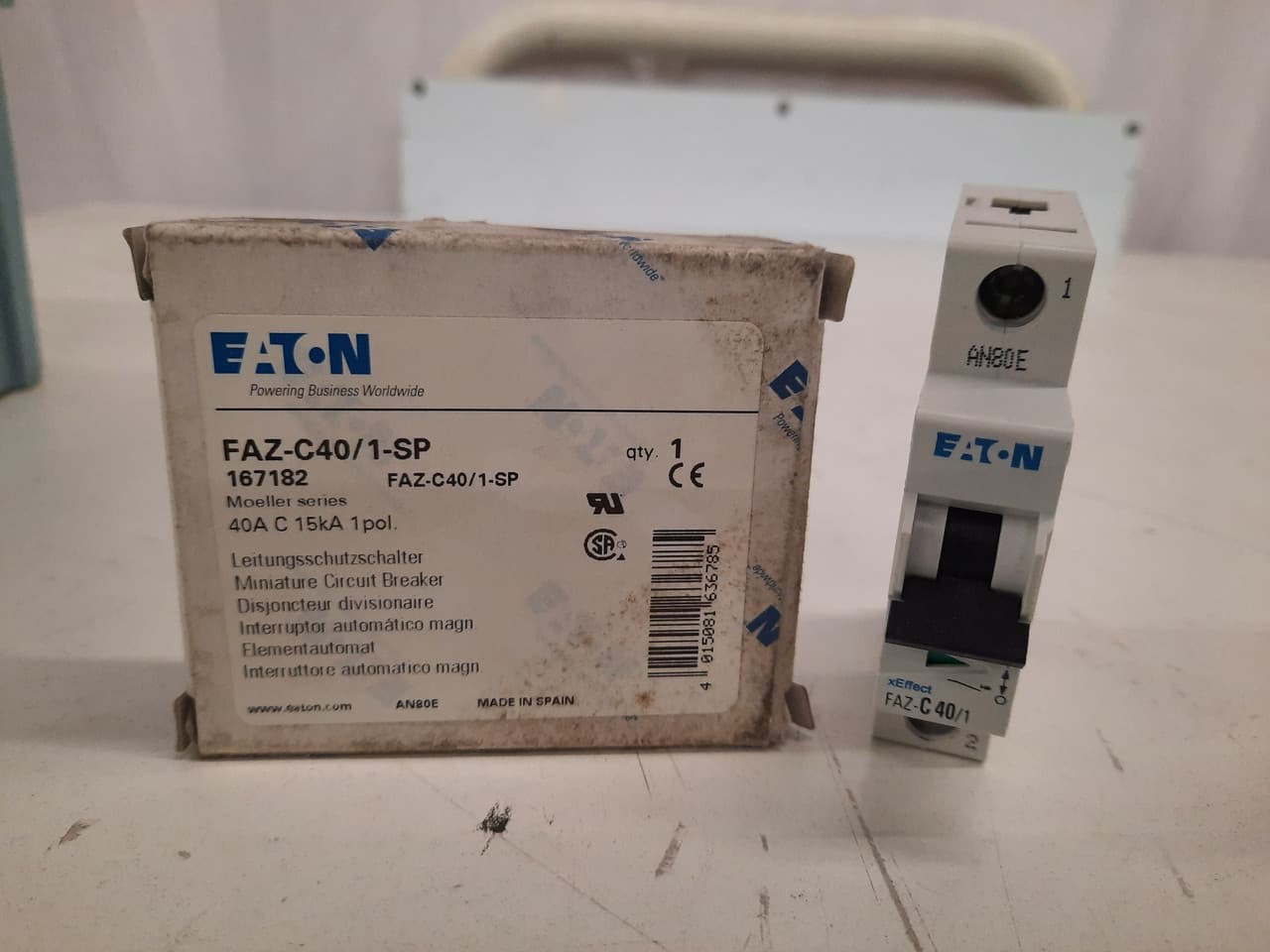

FAZ-C40/1-SP Eaton Miniature Circuit Breakers (MCBs)

Product Details

• Certifications
  IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
• Number of poles
  Single-pole
• Product Weight
  .27 lb
• Terminals
  Standard
• EAN
  4015081636785
• Circuit protection
  C curve
• Catalog Number
  FAZ-C40/1-SP
• Type
  UL 1077 Industrial miniature circuit breaker - supplementary protector
• Trip Type
  5-10X /n
• Product Width
  1 in
• Frequency rating
  50-60 Hz
• Product Name
  Eaton FAZ supplementary protector
• Special features
  Single package
• Application
  Suitable for applications where medium levels of inrush current are expected
• Warranty
  1 year
• Interrupt rating
  15 kAIC
• Voltage rating
  277V
• Product Length/Depth
  .69 in
• Catalog Notes
  Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices. Single packaging of single-pole curves B, C and D for select amperages only.
• Amperage Rating
  40 A
Product Height
.69 in
Quantity
38
Mounting:
DIN Rail
Shipping Length:
4.00 In.
Volts:
277/480 VAC
Type:
Current Limiting
Size:
0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
Terminal Type:
Line/Load
Shipping Width:
2.00 In.
Poles:
1
Series:
FAZ
Interrupting Rating:
10 kA
Shipping Height:
3.00 In.
Amps:
32 A
UPC:
015081636789
Trip Setting:
5 to 10 x Rated Current
Shipping Weight:
0.30
Wire Size:
18 to 4/18 to 8 AWG
Approval:
UL 1077
