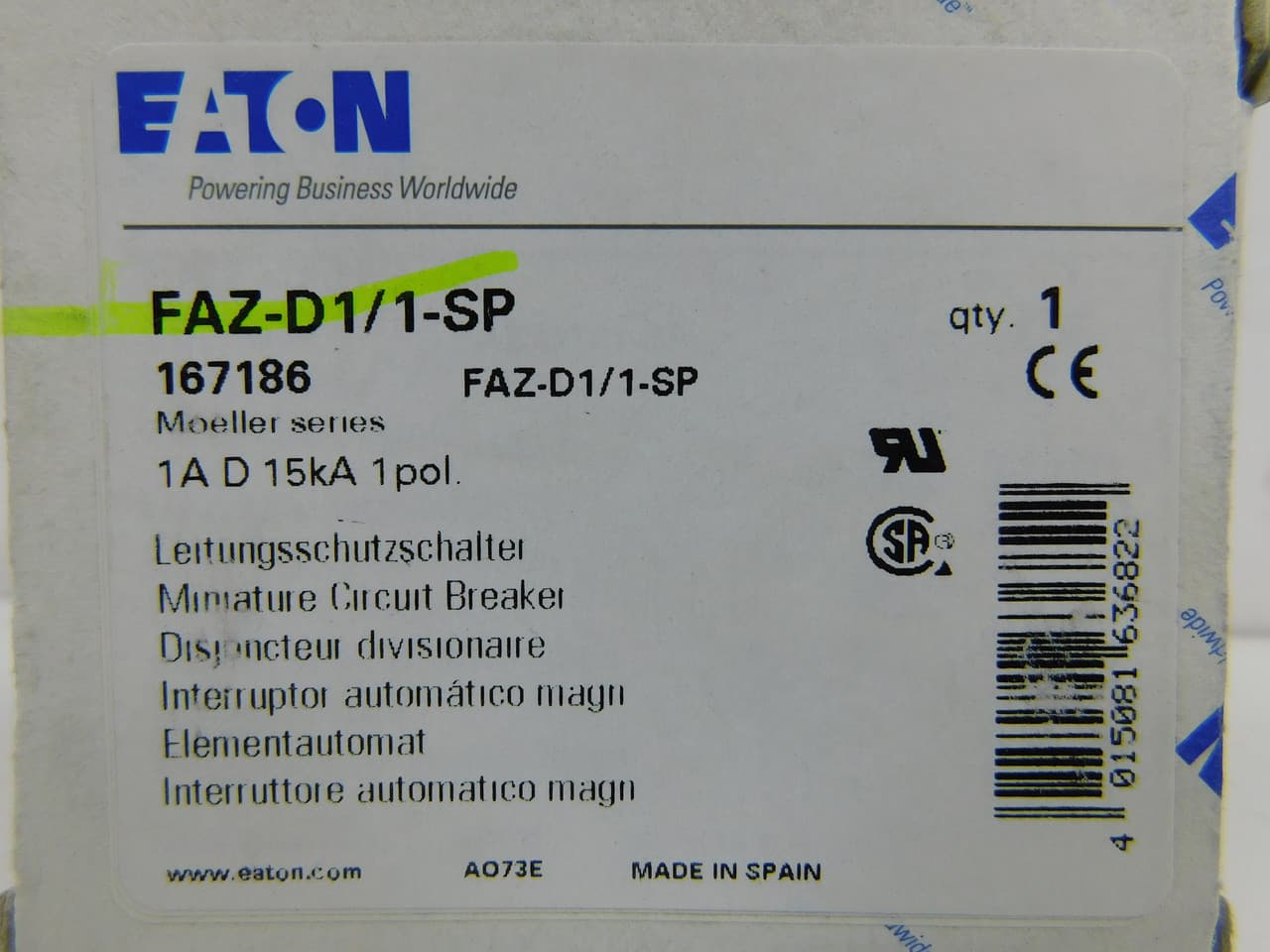

FAZ-D1/1-SP Eaton Miniature Circuit Breakers (MCBs)

Product Details

• Warranty
  1 year
• Frequency rating
  50-60 Hz
• EAN
  4015081636822
• Circuit protection
  D curve
• Trip Type
  10-20X /n
• Product Weight
  .27 lb
• Quantity
  38
• Product Height
  .75 in
• Interrupt rating
  15 kAIC
• Certifications
  IEC 60947-2 UL 1077 CSA Std. C22.2 No.235
• Terminals
  Standard
• Product Name
  Eaton FAZ supplementary protector
• Catalog Notes
  Magnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems. Single packaging of single-pole curves for select amperages only.
• Amperage Rating
  1 A
• Product Length/Depth
  .69 in
• Application
  Suitable for applications where high levels of inrush current are expected
• Catalog Number
  FAZ-D1/1-SP
• Special features
  Single package
• Number of poles
  Single-pole
• Product Width
  3 in
Voltage rating
277V
Type
UL 1077 Industrial miniature circuit breaker - supplementary protector
Size:
0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
UPC:
015081636826
Poles:
1
Type:
Current Limiting
Wire Size:
18 to 4/18 to 8 AWG
Shipping Height:
1.00 In.
Series:
FAZ
Mounting:
DIN Rail
Shipping Width:
4.00 In.
Terminal Type:
Line/Load
Shipping Weight:
0.30
Interrupting Rating:
10 kA
Volts:
277/480 VAC
Shipping Length:
3.00 In.
Amps:
32 A
Approval:
UL 1077
Trip Setting:
10 to 20 x Rated Current
