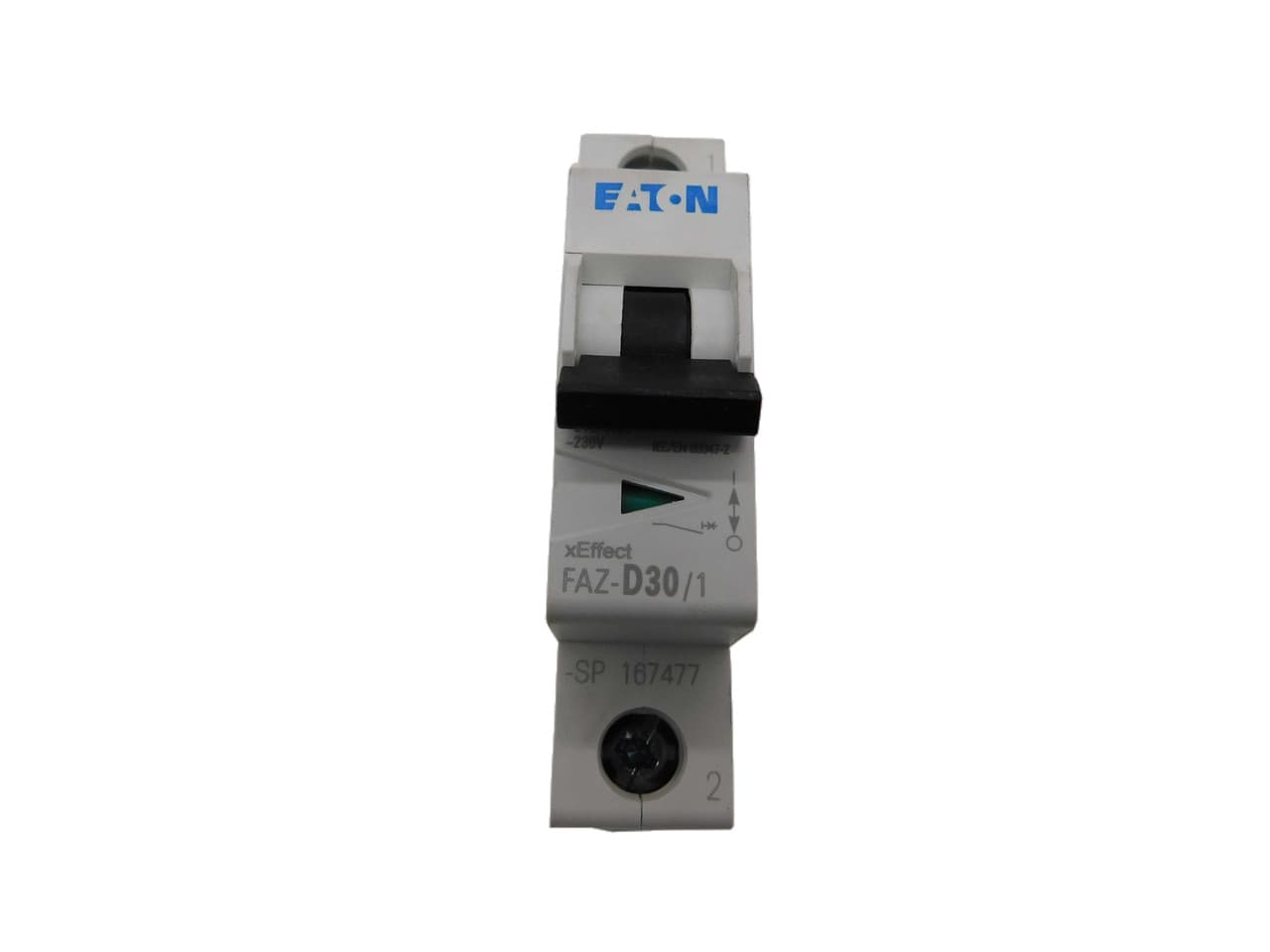

FAZ-D30/1-SP Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-D30/1-SP
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Product description
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker-supplementary protector,Single package,High levels of inrush current are expected,30 A,15 kAIC,Single-pole,277 V,10-20X/n,Q38,50-60 Hz,Standard terminals,D Curve
Product Details
- Catalog Number FAZ-D30/1-SP
- Certifications IEC 60947-2 UL 1077 CSA Std. C22.2 No.235
- Catalog Notes Magnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems. Single packaging of single-pole curves for select amperages only.
- EAN 4015081639793
- Amperage Rating 30 A
- Product Weight .5 lb
- Terminals Standard
- Product Length/Depth 1 in
- Quantity 38
- Product Name Eaton FAZ supplementary protector
- Number of poles Single-pole
- Product Width 1 in
- Warranty 1 year
- Trip Type 10-20X /n
- Product Height 1 in
- Shipping Length: 1.00 In.
- Poles: 1
- Shipping Height: 1.00 In.
- Size: 0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Interrupting Rating: 10 Kiloamp
- Terminal Type: Line/Load
- Mounting: DIN Rail
- Type: Current Limiting
- UPC: 015081639797
- Volts: 277/480 VAC
- Approval: UL 1077
- Amps: 30 A
- Gauge: 18 to 4/18 to 8 AWG
- Shipping Width: 1.00 In.
- Trip Setting: 10 to 20 x Rated Current
- Shipping Weight: 0.50 lbs.
- Series: FAZ
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
