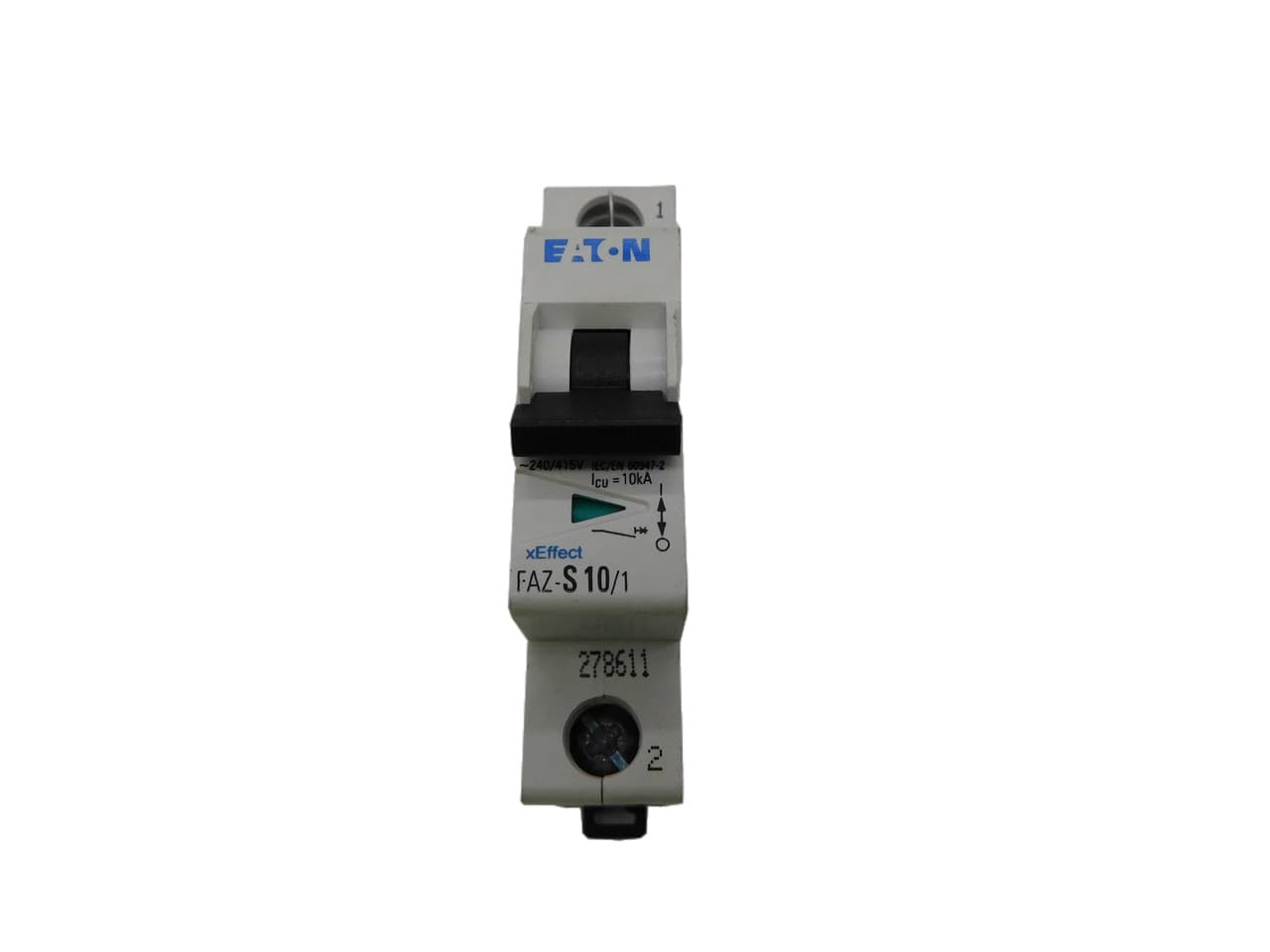

FAZ-S10/1 Eaton Supplementary Protectors
Part#:FAZ-S10/1
Manufacturer:Eaton
Category:Supplementary Protectors
Product Lifecycle:Active
Product description
277/480 VAC 50/60 Hz, 10 A, 1-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic, Supplementary Protector
Product Details
- Number of Poles 1 Pole
- Current Rating 10 A
- Trip Curve S
- SCCR 5 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- EAN 4015082786113
- Certifications IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
- Product Width .75 in
- Number of poles Single-pole
- Product Length/Depth 1 in
- Amperage Rating 10 A
- Catalog Number FAZ-S10/1
- Terminals Standard
- Warranty 1 year
- Product Weight .5 lb
- Product Name Eaton FAZ supplementary protector
- Catalog Notes Positioned for highly inductive loads especially in control circuits with coils and light filaments.
- Product Height 1 in
- Trip Type 13-17X /n
- Mounting: DIN Rail
- Shipping Weight: 0.25
- Gauge: 18 to 4/18 to 8 AWG
- Interrupting Rating: 10 Kiloamp
- Series: FAZ
- Approval: UL 1077
- Amps: 10 A
- Type: Current Limiting
- Shipping Length: 3.00 In.
- Size: 0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Shipping Width: 1.00 In.
- UPC: 015082786117
- Terminal Type: Line/Load
- Trip Setting: 13 to 17 x Rated Current
- Shipping Height: 4.00 In.
- Poles: 1
- Volts: 277/480 VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
