FDB2015LS21 Eaton Industrial Automation Components

Name: FDB2015LS21
Brand: Eaton

Part#:FDB2015LS21

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

FDB2015LS21 Eaton - Eaton Series C complete molded case circuit breaker, F-frame, FDB, Fixed thermal and magnetic trips, Two-pole, 15A, 600 Vac, 250 Vdc, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 48-127 Vac or 48-60 Vdc same side w/ right pigtail

Product Details

Product Width
2.75 in
Circuit breaker frame type
Complete breaker
Frame
F
Number of poles
Two-pole
Product Height
6 in
Voltage rating
600 Vac, 250 Vdc
Product Name
Eaton Series C complete molded case circuit breaker
Circuit breaker type
FDB
Amperage Rating
15 A
UPC
786679068953
Shunt trip
48-127 Vac or 48-60 Vdc right pigtail same side
Product Length/Depth
3.38 in
Interrupt rating
14 kAIC at 480 Vac 18 kAIC at 240 Vac
Certifications
UL Listed
Frequency rating
50/60 Hz
Series
Series C
Catalog Number
FDB2015LS21
Trip Type
Fixed Magnetic, Fixed Thermal
Product Weight
3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Terminals

Line and load

Frequency

50 hertz, 60 hertz

Weight

3 pounds

Amperage

15 amperes

Number of Poles

Terminal Type

Line And Load

Height

6 inches

Interrupt Rating

14 kiloamps

Length

3.38 inches

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: Eaton Industrial Automation Components

XBUTT4

Eaton

XBUTT4 Eaton - Eaton XB IEC terminal block, Screw Connection Double Level Blocks, IEC-XB Series, Gray, IEC/UL #26-10 AWG wire

25 in stock

XBAFBS55

Eaton

XBAFBS55 Eaton - Plug-in bridge

6 in stock

XBAFBS35

Eaton

XBAFBS35 Eaton - Eaton XB IEC, Plug-in bridge, For cross connections in the bridge shaft, Red, 10, 3, XBUT25, XBUT25PE, XBUT25D12, XBUT25D22, XBUT25D12PE, XBUT25D22PE, XBPT25

56 in stock

XBACUTT4

Eaton

XBACUTT4 Eaton - End Cover

3 in stock

5366NCR

Eaton

5366NCR Eaton - Eaton Arrow Hart corrosion resistant straight blade plug, #16-12 AWG, 20A, Industrial, 125V, Back wire, Yellow, Nickel-plated brass, Corrosion resistant, Nylon, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack

2 in stock

M22-LED-G

Eaton

M22-LED-G Eaton - Eaton M22 modular pushbutton, LED Light Unit, Screw, IP66, NEMA 4X, 13, Rk resistance 4.7, Illuminated, Green, 12-30 Vac/dc

1 in stock

Manufacturer warranty

FDB2015LS21 Eaton

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare FDB2015LS21 with other Industrial Automation Components products

Product Width

Circuit breaker frame typ...

Frame

Number of poles

Product Height

Voltage rating

Product Name

Circuit breaker type

Amperage Rating

UPC

Selected product

Backordered

FDB2015LS21

Eaton

FDB2015LS21 Eaton - Eaton Series C complete molded case circuit breaker, F-frame, FDB, Fixed thermal...

Product Width2.75 in

Circuit breaker frame typeComplete breaker

FrameF

Number of polesTwo-pole

Product Height6 in

Voltage rating600 Vac, 250 Vdc

Product NameEaton Series C complete mold...

Circuit breaker typeFDB

Amperage Rating15 A

UPC786679068953

1 in stock

M22-LED-G

Eaton

M22-LED-G Eaton - Eaton M22 modular pushbutton, LED Light Unit, Screw, IP66, NEMA 4X, 13, Rk resista...

Product Width2 in

Circuit breaker frame type-

Frame-

Number of poles-

Product Height1 in

Voltage rating-

Product NameEaton M22 modular pushbutton

Circuit breaker type-

Amperage Rating-

UPC786685277585

1 in stock

M22-LED-B

Eaton

M22-LED-B Eaton - Eaton M22 modular pushbutton, LED Light Unit, Screw, IP66, NEMA 4X, 13, Illuminate...

Product Width2 in

Circuit breaker frame type-

Frame-

Number of poles-

Product Height1 in

Voltage rating-

Product NameEaton M22 modular pushbutton

Circuit breaker type-

Amperage Rating-

UPC786685277592

About the manufacturer

Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...

Recently viewed products

LC1D126BL

Schneider Electric

Schneider Electric LC1D126BL is a magnetic contactor from the Deca sub-range designed with a low-consumption coil (<2.4W) and ring-lugs connections. This 3-pole (3P; 3NO) contactor supports a rated current of 25A (AC-1) and 12A (440Vac; AC-3), and is suitable for DIN rail mounting. It features a net width of 45 mm and offers a degree of protection of IP20. The control voltage (DC) ranges from 19.2-30Vdc (24Vdc nom.; 0.8...1.25 x Uc), with a rated operating voltage (Ue) of up to 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV, and it has a rated active power ranging from 3kW (220-230Vac; AC-3) to 7.5kW (660-690Vac; AC-3). The rated power (HP) varies from 0.5HP (115Vac; single-phase) to 10HP (575-600Vac; 3-phase), under UL/CSA standards. This contactor is designed for mechanical durability of 15 million operations at no load and electrical durability of 2 million operations with load, with a power consumption of 2.4 W.

0 in stock

RK 4.5T-10-RS 4.5T/S679/S1587

Turck

RK 4.5T-10-RS 4.5T/S679/S1587 Turck - RK 4.5T-10-RS 4.5T/S679/S1587 Actuator and Sensor Cordset, Extension Cordset

0 in stock

9001KS52FBH37

Schneider Electric

Schneider Electric 9001KS52FBH37 is a selector switch designed for use with a gloved hand or with a long handle, featuring a metal (chromium-plated) bezel. It is rated for IP66, NEMA 1, 2, 3, 3R, 4, 12, and 13, indicating a high level of protection against dust, water, and other environmental conditions. The switch operates at a network frequency of 9001K, with a net height of 2.5 kV and a diameter of 600 V. It offers a 3-position, spring-return to center mechanism and has an electrical durability of 500,000 operations with a silver alloy (Ag / Ni) contact material. The primary voltage is rated at 30 mm, with a type of lens at 1.18 inches and a screw-clamp trip unit type. It supports an earthing system with a rated thermal current (Ith) of 10 A and a control circuit rated current of AC-15 3 A at 240Vac and DC-13 0.55 A at 125Vdc. The selector switch weighs 0.55 A and can operate within a temperature range of -70°C to +70°C.

0 in stock

X20DO6639

B&R

X20 digital output module, 6 relays, normally open contacts, 240 VAC / 2 A, 30 VDC / 2 A

1 in stock

SU-7

Panasonic

Panasonic SU-7 is an amplifier designed for sensor applications, featuring an interference prevention function and an OFF-delay/ON-delay timer adjustable from 0 to 5 seconds. It is constructed with a polycarbonate case cover and an ABS housing that is heat resistant. This part is pre-wired with a 2-meter 6-core cable for connectivity and operates within an ambient air temperature range of -10 to +55°C. It includes 6 circuits within the cable and offers 2 digital outputs, both NPN open-collector type, capable of 24Vdc at 100mA, with one designated for self-diagnosis output. The SU-7 has a current consumption of 35mA or 0.035 A and features a visual position indicator with a red LED for operation and a green LED for stability. It is equipped with output short-circuit protection, has a response time of 600µs or 0.0006 seconds, and can operate in either Light-ON or Dark-ON mode. The time delay function can be set anywhere from 0 to 5 seconds.

0 in stock

LC1D126BL

Schneider Electric

0 in stock

9001KS52FBH37

Schneider Electric

0 in stock

SU-7

Panasonic

0 in stock

LC1D126BL

Schneider Electric

0 in stock

Relevant products

FDB2100S23

Verified stock: 0

FDB2100S23 Eaton - Eaton Series C complete molded case circuit breaker, F-frame, FDB, Fixed thermal and magnetic trips, Two-pole, 100A, 600 Vac, 250 Vdc, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, 48-127 Vac or 48-60 Vdc opposite side w/ right pigtail

Eaton

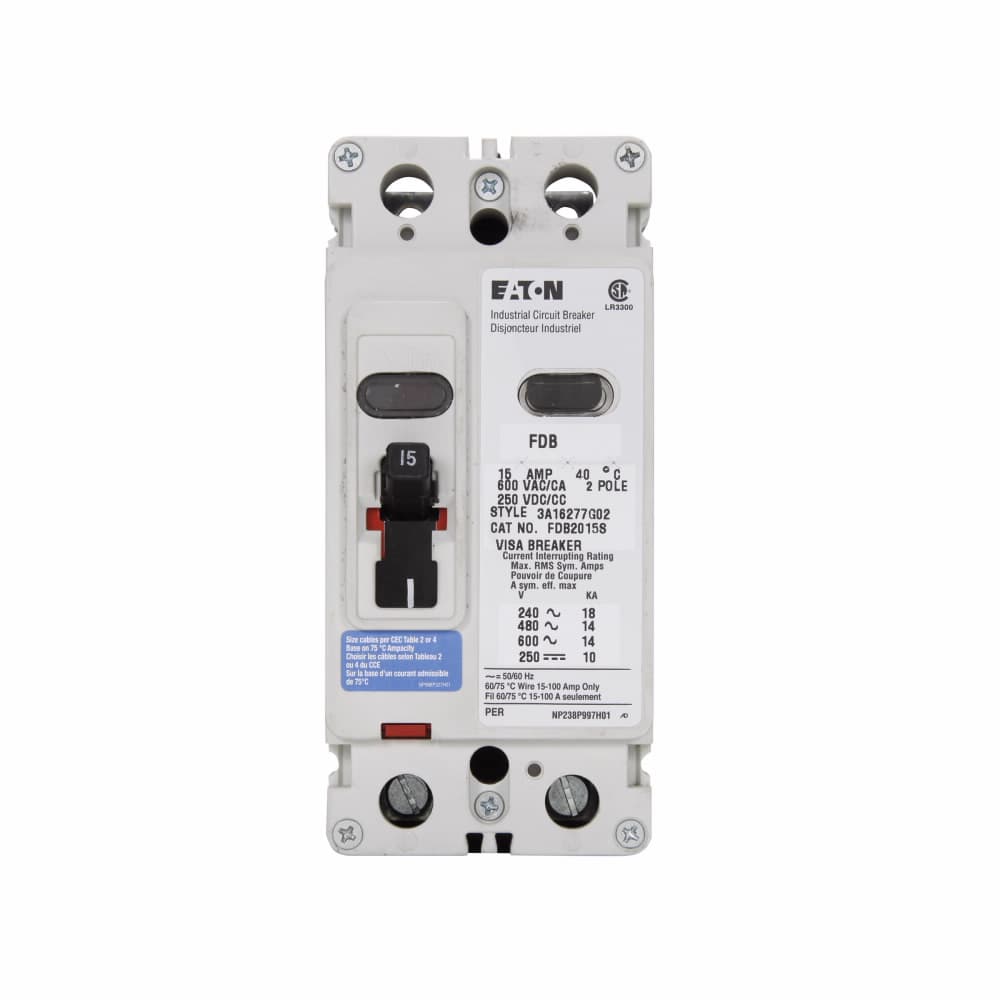

FDB2015S
