Powermatic Associates Logo

HFDDC3150K Eaton Industrial Automation Components

HFDDC3150K on Powermatic Associates
Eaton

Part#:HFDDC3150K

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

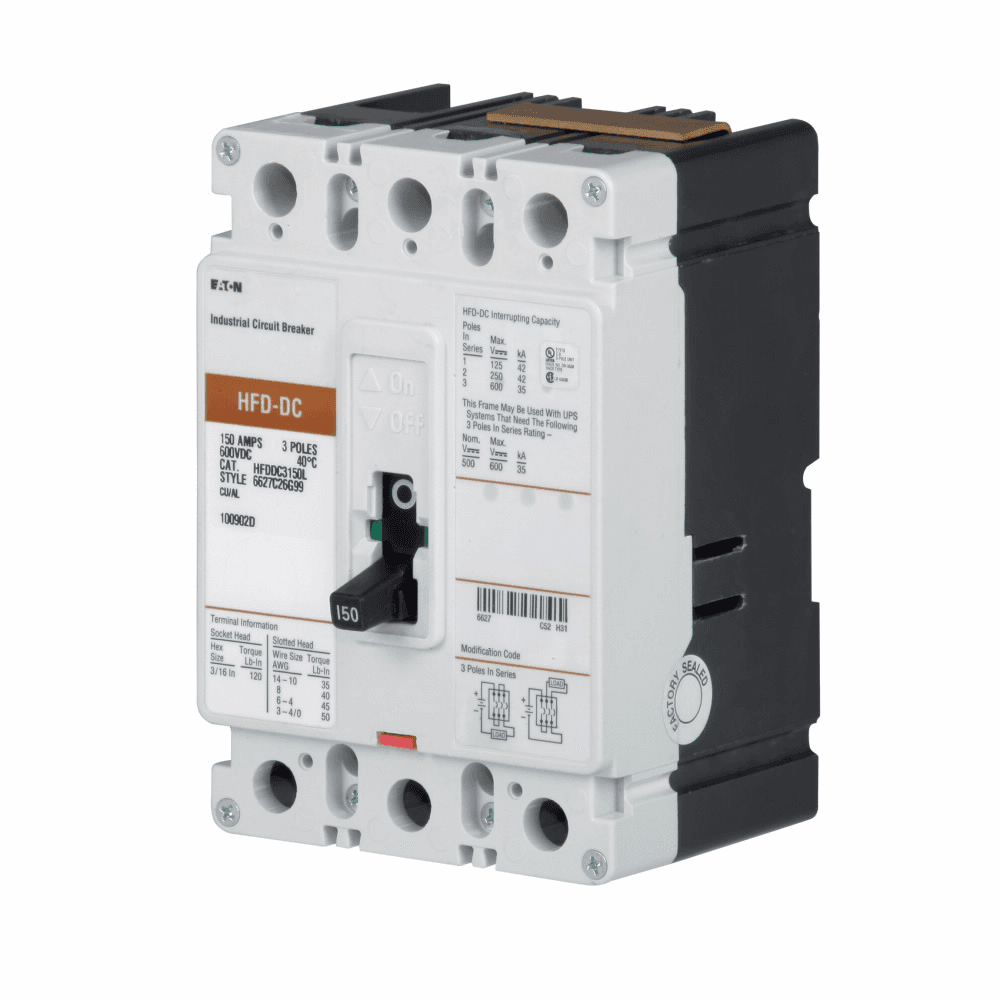

HFDDC3150K Eaton - Eaton Series C DC/PvGard molded case switch, F-frame, HFD, Molded case switch, Three-pole, 150A, 600 Vac, 250 Vdc, 42 kAIC at 600 Vac, Load side, Vdc

Product Details

  • Circuit Breaker Type
    HFD
  • Interrupt Rating
    42 kiloamps
  • Frame
    F
  • Terminal Type
    Load Side
  • Amperage
    150 amperes
  • Weight
    4.5 pounds
  • Class
    Vdc
  • Length
    3.38 inches
  • Switch Type
    Molded Case
  • Height
    4.13 inches

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
