PDG24G0060P3MN Eaton Molded Case Circuit Breakers (MCCB)

PDG24G0060P3MN on Powermatic Associates
Eaton

Part#:PDG24G0060P3MN

Manufacturer:Eaton

Category:Molded Case Circuit Breakers (MCCB)

Product Lifecycle:Active

Product description

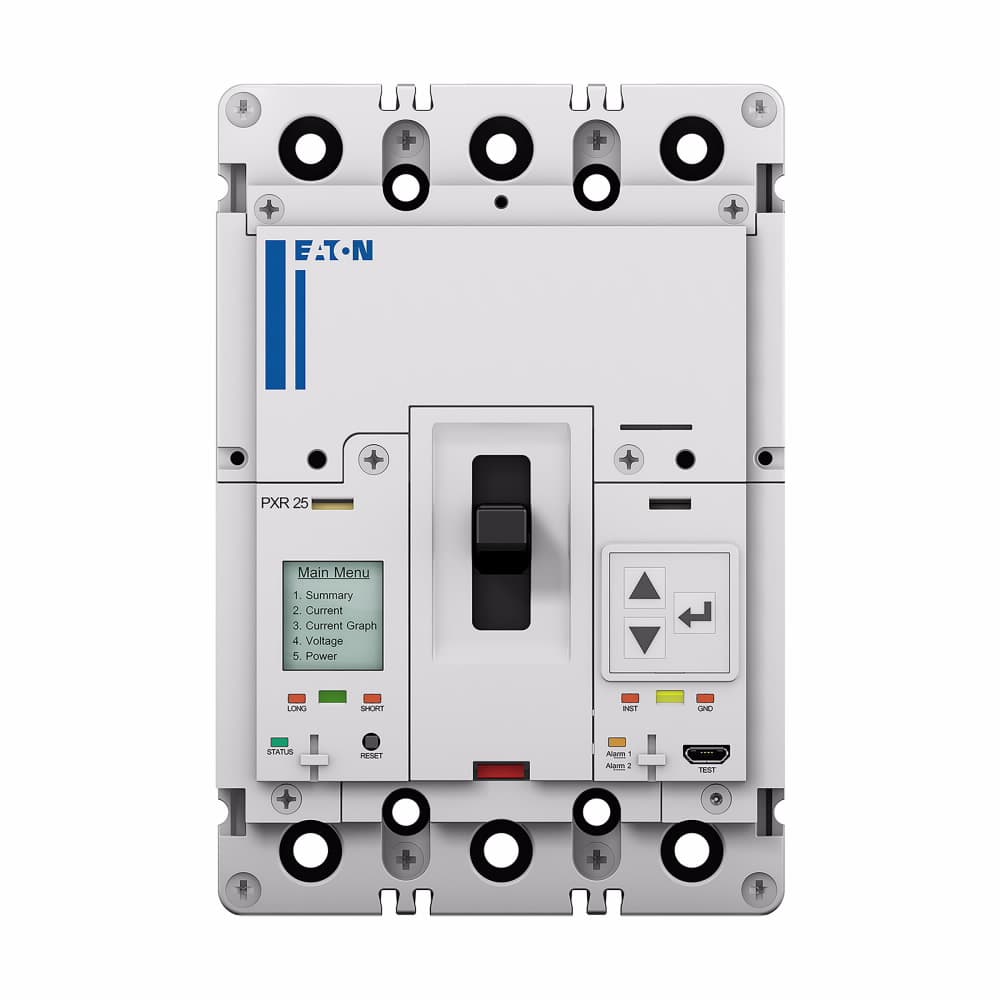

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 60A, 35kA/480V, PXR25 LSIG w/ Modbus RTU and Relays, No Terminals

Product Details

  • UPC
    786679248294
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications
    UL 489 CCC Marked CSA IEC 60947-2
  • Circuit breaker type
    PD2 Global
  • Product Name
    Eaton Power Defense molded case circuit breaker
  • Product Width
    139.5 mm
  • Product Length/Depth
    88.9 mm
  • Special features
    Modbus / relays
  • Frame
    2
  • Class
    Class A
  • Number of poles
    Four-pole (100% N)
  • Protection
    100% neutral protection
  • Circuit breaker frame type
    Complete breaker
  • Communication
    Modbus RTU
  • Terminals
    No Terminals
  • Trip Type
    PXR 25 LSIG
  • Product Weight
    2.46 kg
  • Voltage rating - max
    600 V
  • Voltage rating
    600 Vac
  • Compliances
    RoHS Compliant
  • Amperage Rating
    60 A
  • Product Height
    152.4 mm
  • Rated operation voltage (Ue) at AC - max
    600
  • Interrupt rating range
    10 kAIC Icu @250 Vdc 35 kAIC @480V (UL) 10 kAIC Icu @125 Vdc 65 kAIC @240V (UL) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) 18 kAIC @600V (UL/CSA) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC
  • Catalog Number
    PDG24G0060P3MN
  • Interrupt rating
    35 kAIC at 480 Vac
  • Switch off technique
    Electronic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

PDG24G0060P3MN Eaton

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Eaton

Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...

About the Product Category

An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.

Molded Case Circuit Breakers (MCCB)
