PDG24G0150D2WK Eaton Molded Case Circuit Breakers (MCCB)

PDG24G0150D2WK on Powermatic Associates
Eaton

Part#:PDG24G0150D2WK

Manufacturer:Eaton

Category:Molded Case Circuit Breakers (MCCB)

Product Lifecycle:Active

Product description

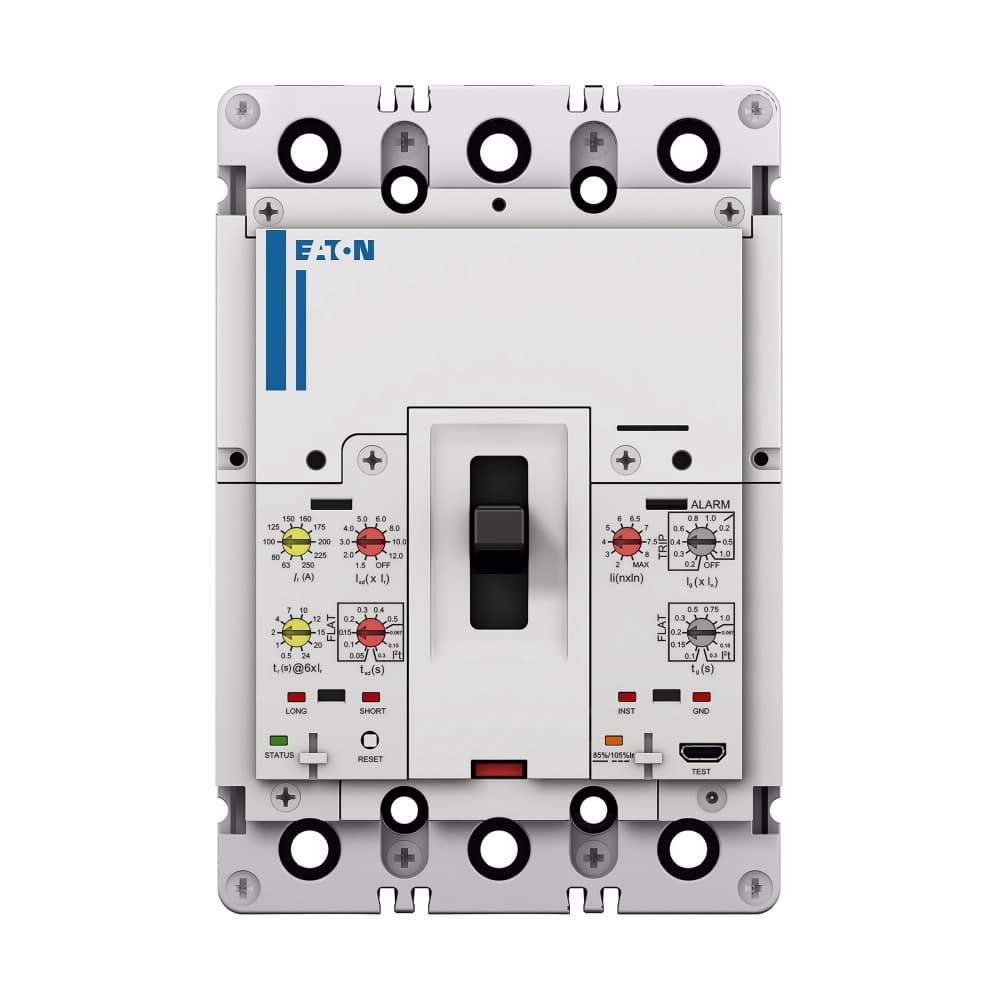

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 150A, 35kA/480V, PXR20D LSI w/ Modbus RTU, ZSI and Relays, Standard Terminals Line Only (PDG2X4TA225)

Product Details

  • UPC
    786679950050
  • Number of poles
    Four-pole (100% N)
  • Class
    Class A
  • Circuit breaker type
    PD2 Global
  • Product Weight
    2.46 kg
  • Frame
    2
  • Protection
    100% neutral protection
  • Catalog Number
    PDG24G0150D2WK
  • Interrupt rating
    35 kAIC at 480 Vac
  • Switch off technique
    Electronic
  • Product Length/Depth
    88.9 mm
  • Rated operation voltage (Ue) at AC - max
    600
  • Terminals
    Standard Terminals Line Only
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications
    CCC Marked IEC 60947-2 UL 489 CSA
  • Interrupt rating range
    10 kAIC Icu @250 Vdc 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 3
  • Communication
    Modbus RTU
  • Product Name
    Eaton Power Defense molded case circuit breaker
  • Product Height
    152.4 mm
  • Circuit breaker frame type
    Complete breaker
  • Compliances
    RoHS Compliant
  • Special features
    ZSI / Modbus / Relays
  • Voltage rating - max
    600 V
  • Trip Type
    PXR 20D LSI
  • Product Width
    139.5 mm
  • Amperage Rating
    150 A
  • Voltage rating
    600 Vac

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

PDG24G0150D2WK Eaton

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Eaton

Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...

About the Product Category

An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
