PDG24G0150E3WL Eaton Molded Case Circuit Breakers (MCCB)

PDG24G0150E3WL on Powermatic Associates
Eaton

Part#:PDG24G0150E3WL

Manufacturer:Eaton

Category:Molded Case Circuit Breakers (MCCB)

Product Lifecycle:Active

Product description

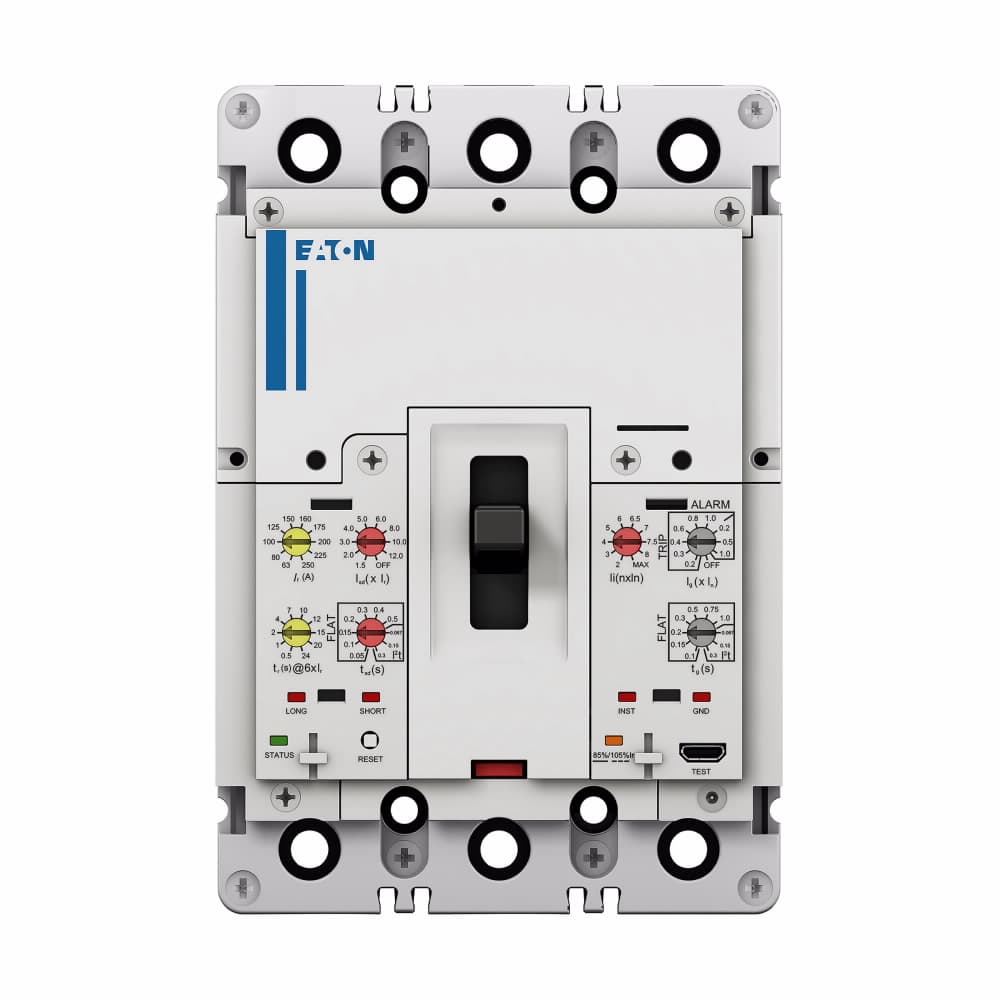

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 150A, 35kA/480V, PXR20 LSIG w/ Modbus RTU, ZSI and Relays, Standard Terminals Load Only (PDG2X4TA225)

Product Details

  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Voltage rating - max
    600 V
  • Communication
    Modbus RTU
  • Product Height
    152.4 mm
  • Frame
    2
  • Product Length/Depth
    88.9 mm
  • Product Width
    139.5 mm
  • Interrupt rating
    35 kAIC at 480 Vac
  • Number of poles
    Four-pole (100% N)
  • Switch off technique
    Electronic
  • Voltage rating
    600 Vac
  • Product Weight
    2.46 kg
  • Trip rating
    150 A
  • Circuit breaker frame type
    Complete breaker
  • Catalog Number
    PDG24G0150E3WL
  • UPC
    786679769218
  • Certifications
    IEC 60947-2 CSA UL 489 CCC Marked
  • Rated operation voltage (Ue) at AC - max
    600
  • Class
    Class A
  • Terminals
    Standard Terminals Load Only
  • Product Name
    Eaton Power Defense molded case circuit breaker
  • Special features
    ZSI / Modbus / Relays
  • Circuit breaker type
    PD2 Global
  • Interrupt rating range
    55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 10 kAIC Icu @125 Vdc 10 kAIC Icu @250 Vdc 35 kAIC @480V (UL) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) 65 kAIC @240V (UL) 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 18 kAIC @
  • Trip Type
    PXR 20 LSIG
  • Compliances
    RoHS Compliant
  • Amperage Rating
    150 A
  • Protection
    100% neutral protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

PDG24G0150E3WL Eaton

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Eaton

Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...

About the Product Category

An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
