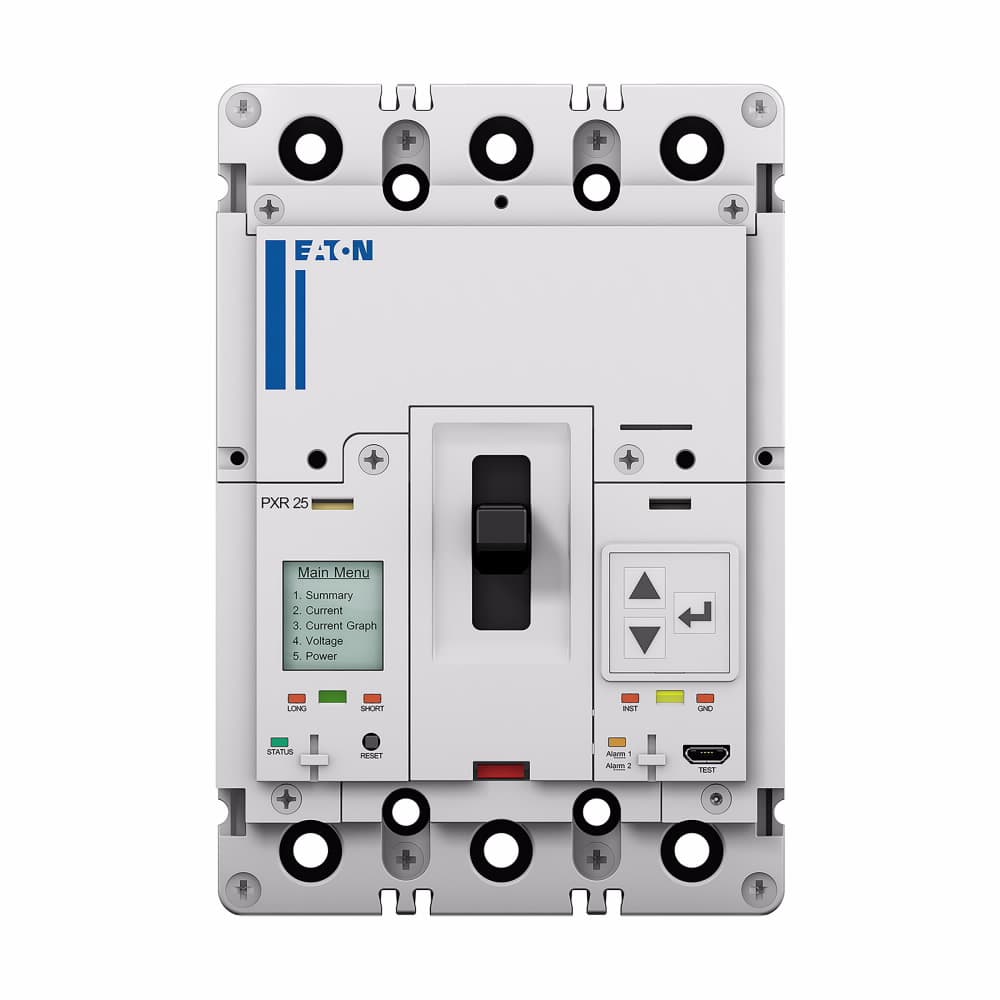

PDG24K0100P3YN Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG24K0100P3YN
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 100A, 50kA/480V, PXR25 LSIG w/ Modbus RTU, CAM Link, ZSI and Relays, No Terminals
Product Details
- Product Width 139.5 mm
- Number of poles Four-pole (100% N)
- Protection 100% neutral protection
- Product Height 152.4 mm
- Rated operation voltage (Ue) at AC - max 600
- Catalog Number PDG24K0100P3YN
- Interrupt rating 50 kAIC at 480 Vac
- Class Class A
- Product Name Eaton Power Defense molded case circuit breaker
- Special features ZSI / Modbus / Relays / CAM
- Circuit breaker frame type Complete breaker
- Compliances RoHS Compliant
- Circuit breaker type PD2 Global
- Communication Modbus RTU and CAM Link
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Interrupt rating range 10 kAIC Icu @250 Vdc 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC) 85 kAIC Icu/ 85 kAIC Ics/ 187 kAIC Icm @240V (IEC) 85 kAIC @240V (UL) 10 kAIC Icu @125 Vdc 25 kAIC @600V (UL/CSA) 35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC)
- Voltage rating 600 Vac
- Product Weight 2.46 kg
- Amperage Rating 100 A
- Product Length/Depth 88.9 mm
- Voltage rating - max 600 V
- Terminals No Terminals
- UPC 786679268476
- Certifications IEC 60947-2 UL 489 CCC Marked CSA
- Frame 2
- Switch off technique Electronic
- Trip Type PXR 25 LSIG
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG24K0100P3YN Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Powermatic Associates is an authorized Eaton distributor, proudly partnering with a global leader in power management solutions to bring our customers innovative and reliable products. Eaton is renowned for its comprehensive range of products and services designed to enhance electrical, hydraulic, and mechanical power efficiency, reliability, and safety. By incorporating Eaton's cutting-edge techn...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
