11304 Festo Pneumatic Components

Name: 11304
Brand: Festo

Part#:11304

Alt. Part#:NAW-1/4-1E-ISO

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

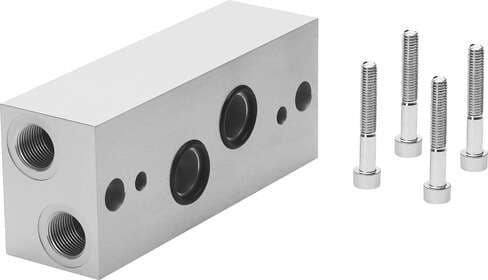

90° connection plate NAW-1/4-1E-ISO Connections at side. Conforms to standard: ISO 5599-1, Product weight: 360 g, Auxiliary pilot air port 12/14: G1/8, Pneumatic connection, port 2: G1/4, Pneumatic connection, port 4: G1/4

Product Details

Type code
NAW
Conforms to standard
ISO 5599-1
Pneumatic connection 2
G¼
Material of sub-base
Die-cast aluminum
Designation to VDMA
VDMA 24345-E-1
Product weight
360 g
Note on materials
Free of copper and PTFE
Pneumatic connection 4
G1/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
