11309 Festo Pneumatic Components

Name: 11309
Brand: Festo

Part#:11309

Alt. Part#:NAW-1/2-3E-ISO

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

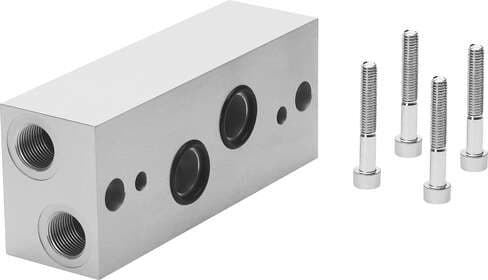

90° connection plate NAW-1/2-3E-ISO Connections at side. Conforms to standard: ISO 5599-1, Product weight: 920 g, Auxiliary pilot air port 12/14: G1/8, Pneumatic connection, port 2: G1/2, Pneumatic connection, port 4: G1/2

Product Details

Conforms to standard
ISO 5599-1
Note on materials
Free of copper and PTFE
Pneumatic connection 2
G1/2
Type code
NAW
Product weight
920 g
Material of sub-base
Die-cast aluminum
Designation to VDMA
VDMA 24345-E-3
Pneumatic connection 4
G1/2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
