1451675 Festo Cable Assemblies
Part#:1451675
Alt. Part#:NEBM-M12W8-E-2.5-LE8
Manufacturer:Festo
Category:Cable Assemblies
Product Lifecycle:Active
Product description

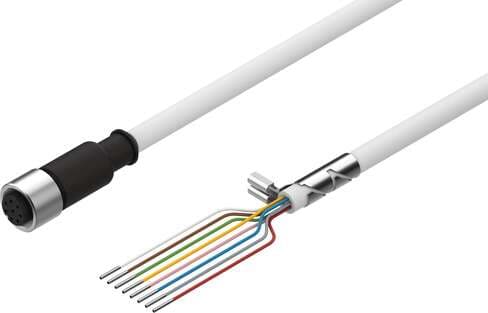

encoder cable NEBM-M12W8-E-2.5-LE8 Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Round, Electrical connection 1, connection type: Plug socket, Electrical conn
Product Details
- Electrical connection 1, function Field device end
- Type code NEBM
- Electrical connection 1, connection type Socket
- Electrical connection 2, function Control side
- DC operating voltage range 0 V ... 30 V
- Cable length 2.5 m
- Cable design 4 x 2 x 0.14 mm² Shielded
- Degree of protection IP65
- Ambient temperature with flexible cable installation -5 °C ... 80 °C
- Color cable sheath Gray
- Cable designation Without label holder
- Electrical connection 1, cable outlet Angled
- Electrical connection 2, connection type Cable
- Electrical connection 2, connection technology Open end
- Nominal operating voltage DC 24 V
- Note on degree of protection In mounted state
- Electrical connection 1, design Round
- Electrical connection 1, occupied pins/wires 8
- Nominal operating voltage AC 24 V
- Nominal conductor cross section 0.14 mm²
- CE marking (see declaration of conformity) As per EU RoHS directive
- Electrical connection 1, connection technology M12x1 A-coded as per EN 61076-2-101
- Electrical connection for input 1, connection pattern 00992265
- Electrical connection 2, occupied pins/wires 8
- Cable diameter 6.8 mm
- Ambient temperature -40 °C ... 80 °C
- Note on materials RoHS-compliant
- Electrical connection 1, number of pins/wires 8
- Electrical connection 2, number of pins/wires 8
- Operating voltage range AC 0 V ... 30 V
- Cable characteristic Suitable for energy chains
- Bending radius, flexible cable installation ≥ 68 mm
- Wire ends Cable end sleeve
- Material of cable sheath TPE-U(PUR)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
