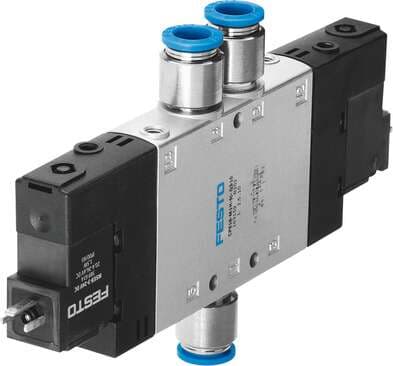

163159 Festo Directional Control Valves

Product Details

• Valve function
  5/2, bistable
• Width
  18 mm
• Operating pressure
  2 bar ... 10 bar
• Certification
  c UL us - Recognized (OL)
• Exhaust air function
  With flow control option
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• Max. positive test pulse with 0 signal
  3300 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 2
  QS-10
• Note on materials
  RoHS-compliant
• Maritime classification
  See certificate
• Standard nominal flow rate
  1000 l/min
• Pneumatic working port
  QS-10
• Degree of protection
  IP65 as per IEC 60529
• Nominal width
  8 mm
• Mounting position
  Any
• Flow direction
  Non-reversible
• Duty cycle
  100%
Permissible voltage fluctuations
-15 % / +10 %
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 84
M5
Pilot air port 14
M5
Housing material
Die-cast aluminum
Type of control
Pilot-controlled
Valve position ID
Label holder
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 1
QS-10
Pneumatic connection 5
G1/4
Changeover time
13 ms
Coil characteristics
24 V DC: 1.5 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pilot air port 12
M5
Pneumatic connection 4
QS-10
Lap
Overlap
Actuation type
Electrical
Operating voltage
24V DC
Design
Piston gate valve
Type code
CPE18
Manual override
Detenting via accessory Non-detenting
Symbol
00991013
Max. negative test pulse on 1 signal
3100 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot exhaust air port 82
M5
Pneumatic connection 3
G1/4
Seals material
NBR
