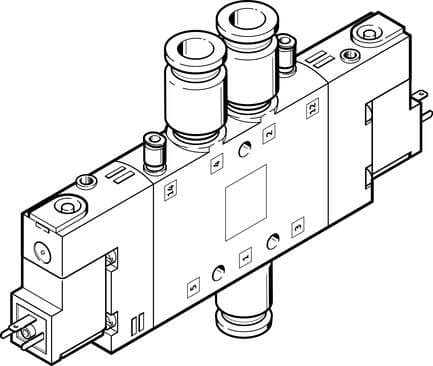

163163 Festo Directional Control Valves

Product Details

• Pneumatic connection 3
  G1/4
• Pneumatic connection 4
  QS-10
• Actuation type
  Electrical
• Pneumatic working port
  QS-10
• Design
  Piston gate valve
• Nominal width
  8 mm
• Sealing principle
  Soft
• Symbol
  00991016
• Duty cycle
  100%
• Permissible voltage fluctuations
  -15 % / +10 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Pilot exhaust air port 84
  M5
• Pneumatic connection 1
  QS-10
• Lap
  Overlap
• Width
  18 mm
• Certification
  c UL us - Recognized (OL)
• Manual override
  Detenting via accessory Non-detenting
• Maritime classification
  See certificate
• Operating voltage
  24V DC
• Type code
  CPE18
Flow direction
Reversible
Coil characteristics
24 V DC: 1.5 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M5
Pneumatic connection 2
QS-10
Housing material
Die-cast aluminum
Degree of protection
IP65 as per IEC 60529
Mounting position
Any
Pilot air supply port
External
Pilot pressure
2 bar ... 10 bar
Changeover time
13 ms
Max. positive test pulse with 0 signal
3300 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Electrical connection
Form C
Temperature of medium
-5 °C ... 50 °C
Pilot air port 14
M5
Note on materials
RoHS-compliant
Valve function
5/2, bistable
Standard nominal flow rate
1000 l/min
Operating pressure
-0.9 bar ... 10 bar
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Valve position ID
Label holder
Max. negative test pulse on 1 signal
3100 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Type of mounting
With through-hole
Pneumatic connection 5
G1/4
Seals material
NBR
