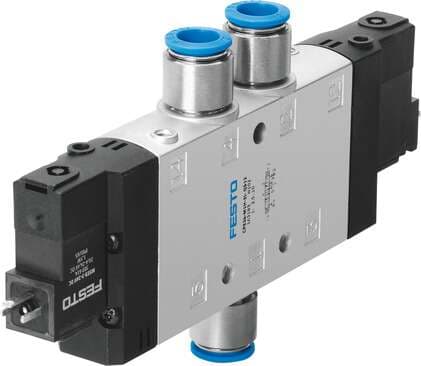

163175 Festo Directional Control Valves

Product Details

• Maritime classification
  See certificate
• Width
  24 mm
• Certification
  c UL us - Recognized (OL)
• Exhaust air function
  With flow control option
• Manual override
  Detenting via accessory Non-detenting
• Duty cycle
  100%
• Lap
  Overlap
• Pneumatic working port
  QS-10
• Operating pressure
  2 bar ... 10 bar
• Pilot air supply port
  Internal
• Changeover time
  25 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Ambient temperature
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Pneumatic connection 5
  G3/8
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Nominal width
  11 mm
• Type of control
  Pilot-controlled
• Flow direction
  Non-reversible
Coil characteristics
24 V DC: 1.5 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 12
M5
Pilot air port 14
M5
Housing material
Die-cast aluminum
Valve function
5/2, bistable
Standard nominal flow rate
1250 l/min
Degree of protection
IP65 as per IEC 60529
Mounting position
Any
Symbol
00991013
Max. positive test pulse with 0 signal
3300 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Pneumatic connection 1
QS-10
Pneumatic connection 3
G3/8
Seals material
NBR
Design
Piston gate valve
Type code
CPE24
Sealing principle
Soft
Valve position ID
Label holder
Max. negative test pulse on 1 signal
3100 µs
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 84
M5
Pneumatic connection 4
QS-10
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Form C
Pneumatic connection 2
QS-10
Note on materials
RoHS-compliant
