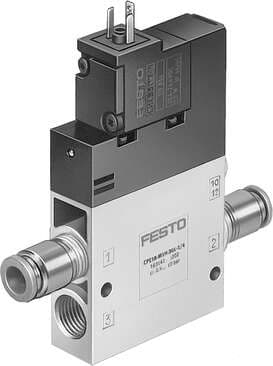

163180 Festo Directional Control Valves

Product Details

• Seals material
  NBR
• Operating voltage
  24V DC
• Pneumatic working port
  QS-12
• Type code
  CPE24
• Pilot air supply port
  Internal
• Coil characteristics
  24 V DC: 1.5 W
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  With through-hole
• Nominal width
  11 mm
• Mounting position
  Any
• Symbol
  00991656
• Flow direction
  Non-reversible
• Ambient temperature
  -5 °C ... 50 °C
• Pilot exhaust air port 82
  M5
• Pneumatic connection 1
  QS-12
• Valve function
  3/2, open, monostable
• Actuation type
  Electrical
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
• Type of control
  Pilot-controlled
On switching time
50 ms
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Lap
Overlap
Width
24 mm
Reset method
Pneumatic spring
Sealing principle
Soft
Switching time off
33 ms
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Maritime classification
See certificate
Standard nominal flow rate
1650 l/min
Operating pressure
2.5 bar ... 10 bar
Degree of protection
IP65 as per IEC 60529
Manual override
Detenting via accessory Non-detenting
Valve position ID
Label holder
Max. negative test pulse on 1 signal
3100 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Pilot air port 12
M5
Pneumatic connection 3
G3/8
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pneumatic connection 2
QS-12
Housing material
Die-cast aluminum
