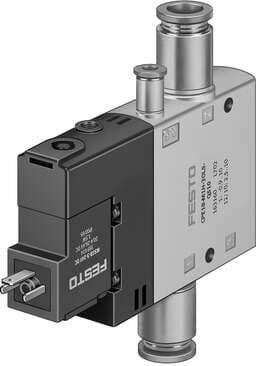

163184 Festo Directional Control Valves

Product Details

• Reset method
  Pneumatic spring
• Type code
  CPE24
• Symbol
  00991402
• Max. negative test pulse on 1 signal
  3100 µs
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot exhaust air port 82
  M5
• Seals material
  NBR
• Valve function
  3/2, open, monostable
• Width
  24 mm
• Operating pressure
  -0.9 bar ... 10 bar
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Max. positive test pulse with 0 signal
  3300 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 2
  QS-12
• Housing material
  Die-cast aluminum
• Maritime classification
  See certificate
• Operating voltage
  24V DC
• Pneumatic working port
  QS-12
Sealing principle
Soft
Type of control
Pilot-controlled
Valve position ID
Label holder
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Note on materials
RoHS-compliant
Actuation type
Electrical
Design
Piston gate valve
Nominal width
11 mm
Pilot air supply port
External
Pilot pressure
2.5 bar ... 10 bar
On switching time
50 ms
Coil characteristics
24 V DC: 1.5 W
Temperature of medium
-5 °C ... 50 °C
Electrical connection
Form C
Pneumatic connection 3
G3/8
Lap
Overlap
Standard nominal flow rate
1650 l/min
Degree of protection
IP65 as per IEC 60529
Manual override
Detenting via accessory Non-detenting
Flow direction
Non-reversible
Switching time off
33 ms
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M5
Pneumatic connection 1
QS-12
