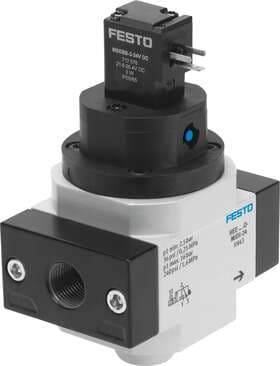

172943 Festo Compressed Air Preparation Units
Part#:172943
Alt. Part#:HEE-3/8-D-MIDI-230
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
on-off valve HEE-3/8-D-MIDI-230 Used in conjunction with service units. Design structure: Piston slide, Type of actuation: electrical, Sealing principle: soft, Exhaust-air function: not throttleable, Manual override: detenting
Product Details
- Type code HEE
- Design Piston gate valve
- Manual override Detenting
- Operating pressure 2.5 bar ... 16 bar
- Standard nominal flow rate 3200 l/min
- Coil characteristics 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 60 °C
- Electrical connection Form C as per DIN EN 175301-803
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Line installation With accessories
- Pneumatic connection 1 G3/8
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- CE marking (see declaration of conformity) As per EU low voltage directive
- Product weight 500 g
- Seals material NBR
- Actuation type Electrical
- Exhaust air function Without flow control option
- Type of control Pilot-controlled
- Valve function 3/2, closed, monostable
- C value 15.7 l/sbar
- Permissible voltage fluctuations -14 % / +10 %
- Temperature of medium -10 °C ... 60 °C
- Flow direction Non-reversible
- Signal status display With accessories
- Housing material Die-cast aluminum
- Sealing principle Soft
- Reset method Mechanical spring
- Symbol 00991008
- b-value 0.33
- Duty cycle 100%
- Note on materials RoHS-compliant
- Mounting position Any
- Pneumatic connection 2 G3/8
- Pneumatic connection 3 G1/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
