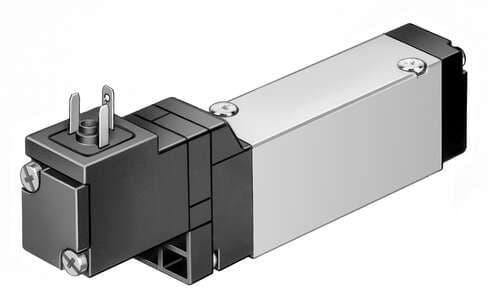

173014 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Standard nominal flow rate
  700 l/min
• Design
  Piston gate valve
• Width dimension
  18 mm
• Exhaust air function
  With flow control option
• Pilot air supply port
  External
• Type of control
  Pilot-controlled
• b-value
  0.38
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 50 °C
• Product weight
  105 g
• Pneumatic connection 2
  Sub-base
• Valve function
  5/2, monostable
• Width
  17.8 mm
• Operating pressure
  -0.9 bar ... 10 bar
• Nominal width
  5 mm
• Sealing principle
  Soft
• Symbol
  00991026
• Switching time off
  18 ms
• Coil characteristics
  24 V DC: 2.5 W
Storage temperature
-20 °C ... 40 °C
Noise level
75 dB(A)
Electrical connection
Form C Rectangular design
Pneumatic connection 1
Sub-base
Seals material
HNBR NBR
Certification
c UL us - Recognized (OL)
Degree of protection
IP65
Pilot pressure
2.5 bar ... 8 bar
Duty cycle
100%
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
Sub-base
Pilot air port 14
Sub-base
Pneumatic connection 4
Sub-base
Operating voltage
24V DC
Reset method
Pneumatic spring
Mounting position
Any
C value
2.75 l/sbar
On switching time
15 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82/84
Sub-base
Pneumatic connection 3
Sub-base
Note on materials
RoHS-compliant
Lap
Overlap
Pneumatic working port
Sub-base
Type code
MEBH
Manual override
Detenting via accessory
Flow direction
Reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
On sub-base
Pneumatic connection 5
Sub-base
Housing material
Die-cast aluminum
