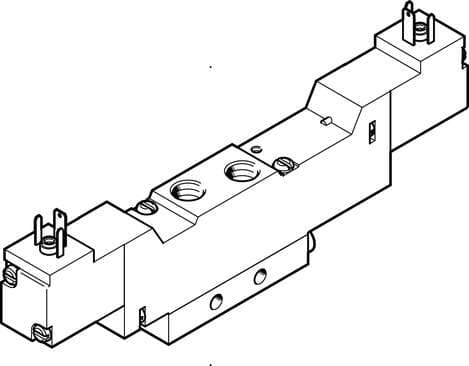

173016 Festo Directional Control Valves

Product Details

• Valve function
  5/3, closed
• Standard nominal flow rate
  500 l/min
• Degree of protection
  IP65
• Exhaust air function
  With flow control option
• Symbol
  00991033
• Coil characteristics
  24 V DC: 2.5 W
• Temperature of medium
  -5 °C ... 50 °C
• Electrical connection
  Form C Rectangular design
• Pilot exhaust air port 82/84
  M5
• Seals material
  HNBR NBR
• Width
  17.8 mm
• Operating voltage
  24V DC
• Width dimension
  18 mm
• Manual override
  Detenting via accessory
• C value
  2.55 l/sbar
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 2
  G1/8
• Note on materials
  RoHS-compliant
• Actuation type
  Electrical
Reset method
Mechanical spring
Design
Piston gate valve
Nominal width
5 mm
Mounting position
Any
Pilot pressure
3 bar ... 8 bar
On switching time
12 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Noise level
75 dB(A)
Product weight
153 g
Pneumatic connection 1
G1/8
Housing material
Die-cast aluminum
Type code
MEBH
Flow direction
Non-reversible
b-value
0.5
Duty cycle
100%
Storage temperature
-20 °C ... 40 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 3
G1/8
Pneumatic connection 4
G1/8
Lap
Overlap
Pneumatic working port
G1/8
Operating pressure
3 bar ... 8 bar
Certification
c UL us - Recognized (OL)
Sealing principle
Soft
Type of control
Pilot-controlled
Pilot air supply port
Internal
Switching time off
25 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Pneumatic connection 5
G1/8
