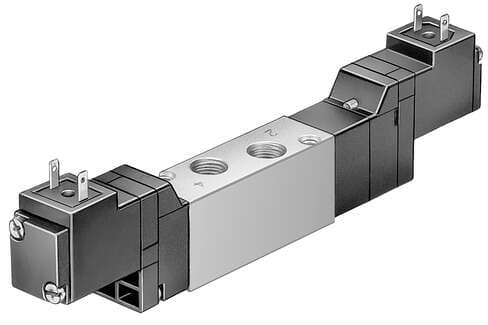

173156 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Reset method
  Mechanical spring
• Type code
  MEH
• Manual override
  Detenting via accessory
• On switching time
  12 ms
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Electrical connection
  Connection diagram form C as per industrial standard, 9.4 mm Rectangular design
• Pneumatic connection 3
  Sub-base
• Note on materials
  RoHS-compliant
• Pneumatic working port
  G1/8
• Design
  Piston gate valve
• Nominal width
  5 mm
• Type of control
  Pilot-controlled
• Symbol
  00991199
• Flow direction
  Reversible
• Switching time off
  25 ms
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
• Type of mounting
  On terminal strip
Pneumatic connection 2
G1/8
Operating pressure
-0.9 bar ... 10 bar
Sealing principle
Soft
Pilot air supply port
External
C value
3.2 l/sbar
Duty cycle
100%
Temperature of medium
-5 °C ... 50 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82/84
Sub-base
Pneumatic connection 5
Sub-base
Valve function
5/3, pressurized
Width
17.8 mm
Operating voltage
24V DC
Certification
c UL us - Recognized (OL)
Exhaust air function
With flow control option
Pilot pressure
3 bar ... 8 bar
Coil characteristics
24 V DC: 1.5 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight
153 g
Pneumatic connection 1
Sub-base
Housing material
Die-cast aluminum
Lap
Overlap
Standard nominal flow rate
400 l/min
Degree of protection
IP65
Width dimension
18 mm
Mounting position
Any
b-value
0.37
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Storage temperature
-20 °C ... 40 °C
Noise level
75 dB(A)
Pilot air port 12
M3
Pneumatic connection 4
G1/8
Seals material
HNBR NBR
