185827 Festo Compressed Air Preparation Units

185827 on Powermatic Associates
Festo

Part#:185827

Alt. Part#:FRC-1/8-D-MINI-KE

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

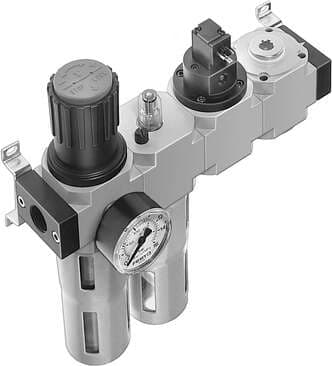

service unit FRC-1/8-D-MINI-KE consisting of filter regulator, lubricator, on/off valve with solenoid coil 24 V DC without socket, and pressure build-up valve with mounting brackets. With manual condensate drain and metal bowl guard. Size: Mini, Series: D

Product Details

  • Series
    D
  • Grade of filtration
    40 µm
  • Symbol
    00991562
  • Max. pressure hysteresis
    0.15 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    1200 g
  • Housing material
    Die-cast zinc
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Operating pressure
    3 bar ... 16 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Type of mounting
    Optionally: With accessories
  • Size
    Mini
  • Actuator lock
    Rotary knob with detent
  • Bowl guard
    Metal bowl guard
  • Pressure regulation range
    2.5 bar ... 12 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
  • Pneumatic connection 2
    G1/8
  • Max. condensate volume
    22 ml
  • Design
    Shut off valve Safety start-up valve
  • Standard nominal flow rate
    550 l/min
  • Pneumatic connection 1
    G1/8
  • Type code
    FRC
  • Condensate drain
    Manually rotating
  • Pressure gauge
    with pressure gauge
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Material of bowl
    PC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

185827 Related Documents

185827 DataSheet.pdf
