185874 Festo Pneumatic Components

185874 on Powermatic Associates
Festo

Part#:185874

Alt. Part#:CPV18-M1H-V140-1/4

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

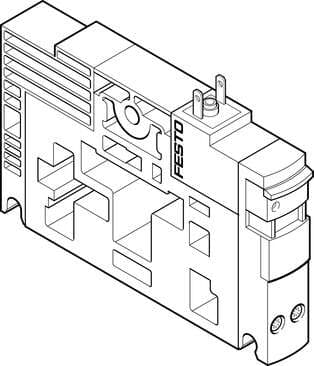

vacuum generator CPV18-M1H-V140-1/4 For valve terminal CPV. Nominal size, Laval nozzle: 1,4 mm, Assembly position: Any, Ejector characteristic: High vacuum, Operating pressure: 3 - 8 bar, Max. vacuum: 85 %

Product Details

  • Mounting position
    Any
  • Type code
    CPV18
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Nominal width of Laval nozzle
    1.4 mm
  • Operating pressure
    3 bar ... 8 bar
  • Symbol
    00991560
  • Ambient temperature
    0 °C ... 50 °C
  • Housing material
    Die-cast aluminum
  • Ejector characteristics
    High vacuum
  • Max. vacuum
    85 %
  • Temperature of medium
    0 °C ... 50 °C
  • Pneumatic connection 1
    Sub-base
  • Vacuum connection
    G1/4
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Electrical connection
    Plug
  • Pneumatic connection 3
    Sub-base
  • Type of mounting
    With through-hole
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
